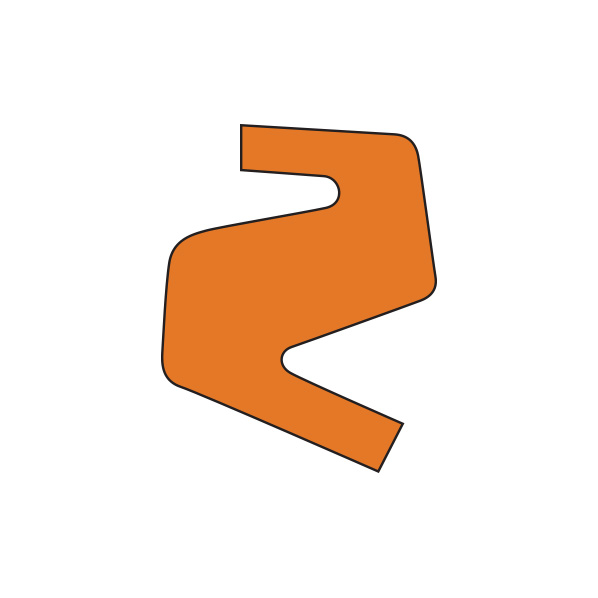

ZT
Description
None
* None
Application
None
Materials
None
TECHNICAL DATA
TECHNICAL DATA
| Temperature | None -35°C/+90°C |
| Pressure | None 50 MPa |
| Speed | None 0.5 m/s |
| Medias | None Mineral hydraulic oils |
MATERIALS
MATERIALS
None
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT (short term peak at 150°C) |
None
Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.
| Chemical resistance | Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max) |
|---|---|
| Compatibility issue | Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents |
| Temperature range | -25°C/+100°C |
DIMENSION
DIMENSION
| Item | Nominal Number | Internal Diameter (d) | Outside Diameter (D) | Internal Diameter (d1) | Height (b1) | Height (b2) |
|---|---|---|---|---|---|---|
| AZ 0264 EO | 1 | 10 | 21 | 11 | 3 | 4.2 |
| AZ 0373 EO | 2 | 12 | 23 | 13 | 3 | 4.2 |
| AZ 0589 FO | 3 | 15 | 26 | 19 | 3 | 4.2 |
| AZ 0733 FO | 4 | 17 | 28 | 18 | 3 | 4.2 |
| AZ 0906 EO | 5 | 19.05 | 31 | 20 | 3 | 4.2 |
| AZ 0992 GO | 5 | 20 | 31 | 21.5 | 3 | 4.2 |
| AZ 1304 HO | 6 | 25 | 38 | 26.5 | 4 | 5.4 |
| AZ 1602 EO | 7 | 28.58 | 43 | 29.6 | 4 | 5.6 |
| AZ 1670 HO | 7 | 30 | 43 | 31.5 | 4 | 5.4 |
| AZ 1670 HO | 7 | 30.16 | 43 | 31.2 | 4 | 5.4 |
| AZ 1833 EO | 8 | 31.75 | 48 | 32.8 | 4 | 5.9 |
| AZ 2045 GO | 8 | 34.92 | 48 | 35.9 | 4 | 5.5 |
| AZ 2045 GO | 8 | 35 | 48 | 36.5 | 4 | 5.4 |
| AZ 2275 EO | 9 | 38.1 | 53 | 39.1 | 4 | 5.7 |
| AZ 2347 GO | 9 | 40 | 53 | 41.5 | 4 | 5.4 |
| AZ 2578 EO | 10 | 44.45 | 58 | 45.5 | 4 | 5 |
| AZ 2636 GO | 10 | 45 | 58 | 46.5 | 4 | 5.4 |
| AZ 2845 FO | 11 | 49.21 | 67 | 50.2 | 5 | 7.1 |
| AZ 2845 FO | 11 | 50 | 67 | 51.5 | 5 | 6.9 |
| AZ 2914 EO | 11 | 50.8 | 67 | 51.8 | 5 | 6.9 |
| AZ 3038 GO | 12 | 55 | 72 | 56.5 | 5 | 6.9 |
| AZ 3126 EO | 13 | 57.15 | 77 | 58.7 | 5 | 7.2 |
| AZ 3199 GO | 13 | 60 | 77 | 62 | 5 | 6.8 |
| AZ 3199 GO | 13 | 60.32 | 77 | 61.8 | 5 | 6.9 |
| AZ 3334 EO | 15 | 63.5 | 82 | 65 | 5 | 7.1 |
| AZ 3388 FO | 15 | 65 | 82 | 67 | 5 | 6.8 |
| AZ 3508 FO | 16 | 69.85 | 89 | 71.4 | 6 | 8.2 |
| AZ 3508 FO | 16 | 70 | 89 | 72 | 6 | 8.1 |
| AZ 3606 FO | 17 | 74.61 | 94 | 76.1 | 6 | 8.2 |
| AZ 3606 FO | 17 | 75 | 94 | 77 | 6 | 8.1 |
| AZ 3727 FO | 18 | 79.38 | 99 | 80.9 | 6 | 8.2 |
| AZ 3727 FO | 18 | 80 | 99 | 82 | 6 | 8.1 |
| AZ 3832 FO | 19 | 85 | 104 | 87 | 6 | 8.1 |
| AZ 3887 EO | 20 | 88.9 | 111 | 90.9 | 7 | 9.5 |
| AZ 3923 FO | 20 | 90 | 111 | 92 | 7 | 9.3 |
| AZ 3987 EO | 21 | 95 | 116 | 97 | 7 | 9.3 |
| AZ 3987 EO | 21 | 95.25 | 116 | 97.2 | 7 | 9.3 |
| AZ 4061 FO | 22 | 100 | 125 | 102 | 8 | 10.8 |
| AZ 4061 FO | 22 | 100.01 | 125 | 102 | 8 | 10.8 |
| AZ 4149 EO | 23 | 105 | 130 | 107 | 8 | 10.8 |
| AZ 4206 FD | 24 | 110 | 135 | 113 | 8 | 10.7 |
| AZ 4276 FD | 26 | 114.3 | 140 | 116.3 | 8 | 10.9 |
| AZ 4276 FD | 26 | 115 | 140 | 118 | 8 | 10.7 |
| AZ 4343 ED | 27 | 120 | 149 | 123 | 9 | 12.2 |
| AZ 4397 ED | 28 | 125 | 154 | 128 | 9 | 12.2 |
| AZ 4397 ED | 28 | 125.41 | 154 | 127.4 | 9 | 12.3 |
| AZ 4448 ED | 29 | 130 | 159 | 133 | 9 | 12.2 |
| AZ 4497 FD | 30 | 135 | 164 | 138 | 9 | 12.2 |
| AZ 4549 ED | 32 | 139.7 | 173 | 141.7 | 10 | 13.8 |
| AZ 4549 ED | 32 | 140 | 173 | 143 | 10 | 13.7 |
| AZ 4629 FD | 34 | 150 | 183 | 153 | 10 | 13.7 |
| AZ 4716 FD | 36 | 160 | 193 | 163 | 10 | 13.7 |
| AZ 4799 FD | 38 | 170 | 203 | 173 | 10 | 13.7 |
| AZ 4902 FD | 40 | 180 | 213 | 183 | 10 | 13.7 |
| AZ 4980 ED | 42 | 190 | 223 | 193 | 10 | 13.7 |
| AZ 5064 ED | 44 | 200 | 240 | 203 | 11 | 15.5 |
| AZ 5137 FD | 46 | 210 | 250 | 213 | 11 | 15.5 |
| AZ 5213 ED | 48 | 220 | 260 | 223 | 11 | 15.5 |
| AZ 5355 ED | 52 | 240 | 286 | 243 | 12 | 17.3 |
| AZ 5409 ED | 54 | 250 | 296 | 253 | 12 | 17.3 |
| AZ 5466 ED | 56 | 260 | 306 | 263 | 12 | 17.3 |
| AZ 5570 FD | 60 | 280 | 332 | 283 | 13 | 19 |
| AZ 5638 FD | 64 | 300 | 352 | 303 | 13 | 19 |
| AZ 5716 FD | 68 | 320 | 372 | 323 | 14 | 20 |
| AZ 5887 ED | 80 | 380 | 432 | 383 | 14 | 20 |
| AZ 0589 GO | 3 | 15 | 26 | 16 | 3 | 4.2 |
| AZ 0992 EO | 5 | 20 | 31 | 21.5 | 3 | 4.2 |
| AZ 1304 EO | 6 | 25 | 38 | 26.5 | 4 | 5.4 |
| AZ 1670 EO | 7 | 30 | 47 | 31.5 | 4 | 5.4 |
| AZ 2045 EO | 8 | 35 | 48 | 36.5 | 4 | 5.4 |
| AZ 2347 I 0 | 9 | 40 | 53 | 41.5 | 4 | 5.4 |
| AZ 2636 FO | 10 | 45 | 58 | 46.5 | 4 | 5.4 |
| AZ 2845 EO | 11 | 50 | 67 | 51.5 | 5 | 6.9 |
| AZ 3038 FO | 12 | 55 | 72 | 56.5 | 5 | 6.9 |
| AZ 3199 FO | 13 | 60 | 77 | 62 | 5 | 6.8 |
| AZ 3388 EO | 15 | 65 | 82 | 67 | 5 | 6.8 |
| AZ 3508 EO | 16 | 70 | 89 | 72 | 6 | 8.1 |
| AZ 3606 EO | 17 | 75 | 94 | 77 | 6 | 8.1 |
| AZ 3727 EO | 18 | 80 | 99 | 82 | 6 | 8.1 |
| AZ 3832 -EO | 19 | 85 | 104 | 87 | 6 | 8.1 |
| AZ 3923 EO | 20 | 90 | 111 | 92 | 7 | 9.3 |
| AZ 3988 E1 | 21 | 95 | 116 | 97 | 7 | 9.3 |
| AZ 4061 EO | 22 | 100 | 125 | 102 | 8 | 10.8 |
| AZ 4149 FO | 23 | 105 | 130 | 107 | 8 | 10.8 |
| AZ 4206 FO | 24 | 110 | 135 | 113 | 8 | 10.7 |
| AZ4276EO | 26 | 115 | 140 | 118 | 8 | 10.7 |
| AZ 4342 EO | 27 | 120 | 149 | 123 | 9 | 12.2 |
| AZ 4397 FO | 28 | 125 | 154 | 128 | 9 | 12.2 |
| AZ 4448 FO | 29 | 130 | 159 | 133 | 9 | 12.2 |
| AZ 4497 FO | 30 | 135 | 164 | 138 | 9 | 12.2 |
| AZ 4549 FO | 32 | 140 | 173 | 143 | 10 | 13.7 |
| AZ 4629 EO | 34 | 150 | 183 | 153 | 10 | 13.7 |
| AZ 4716 HO | 36 | 160 | 193 | 163 | 10 | 13.7 |
| AZ 4799 EO | 38 | 170 | 203 | 173 | 10 | 13.7 |
| AZ 4902 EO | 40 | 180 | 213 | 183 | 10 | 13.7 |
| AZ 4980 FO | 42 | 190 | 223 | 193 | 10 | 13.7 |
| AZ 5064 FO | 44 | 200 | 240 | 203 | 11 | 15.5 |
| AZ5213FO | 48 | 220 | 260 | 223 | 11 | 15.5 |
| AZ 5355 GO | 52 | 240 | 286 | 243 | 12 | 17.3 |
