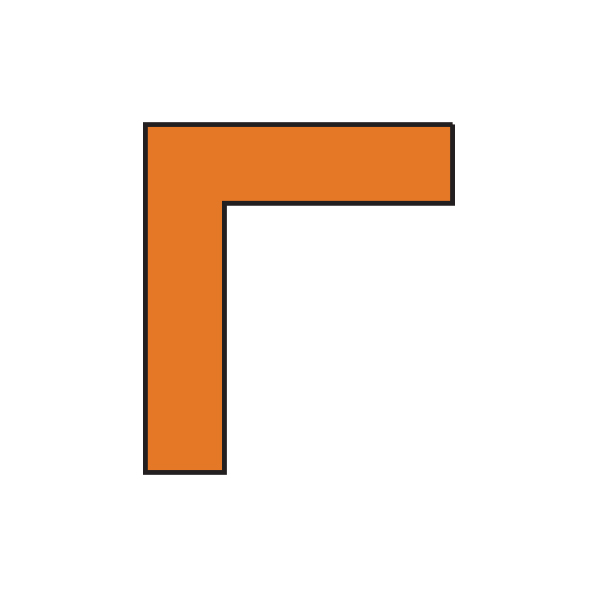

WR-POM
Description
Application
Materials
TECHNICAL DATA
TECHNICAL DATA
| Temperature |
-60°C / +150°C (+200°C) |
| Pressure |
0 MPa |
| Speed |
15 m/s |
| Medias |
|
DIMENSION
DIMENSION
| Standard material | D | d | H | t | D1 (14MPa max.) | D1 (21MPa max.) | d1 | G | E | W | L |
| PWL-40 | 40 | 30 | 5.5 | 1.5 | 39 | 39.4 | 37 | 10 | 4 | 18 | 2.5 |
| PWL-45 | 45 | 35 | 5.5 | 1.5 | 44 | 44.4 | 42 | 10 | 4 | 18 | 2.5 |
| PWL-50 | 50 | 40 | 5.5 | 1.5 | 49 | 49.4 | 47 | 10 | 4 | 18 | 2.5 |
| PWL-55 | 55 | 45 | 5.5 | 1.5 | 54 | 54.4 | 52 | 10 | 4 | 18 | 2.5 |
| PWL-60 | 60 | 50 | 5.5 | 1.5 | 59 | 59.4 | 57 | 10 | 4 | 18 | 2.5 |
| PWL-63 | 63 | 53 | 5.5 | 1.5 | 62 | 62.4 | 60 | 10 | 4 | 18 | 2.5 |
| PWL-65 | 65 | 78 | 7 | 2 | 63.5 | 64.2 | 60 | 10 | 4 | 18 | 2.5 |
| PWL-70 | 70 | 60 | 7 | 2 | 68.5 | 69.2 | 66 | 11 | 5 | 21 | 2.5 |
| PWL-75 | 75 | 65 | 7 | 2 | 73.5 | 74.2 | 71 | 11 | 5 | 21 | 2.5 |
| PWL-80 | 80 | 67 | 7 | 2 | 78.5 | 79.2 | 76 | 12.5 | 5 | 22.5 | 3 |
| PWL-85 | 85 | 72 | 7 | 2 | 83.5 | 84.2 | 81 | 12.5 | 5 | 22.5 | 3 |
| PWL-90 | 90 | 77 | 7 | 2 | 88.5 | 89.2 | 86 | 12.5 | 5 | 22.5 | 3 |
| PWL-100 | 100 | 85 | 7 | 2 | 98.5 | 99.2 | 96 | 14 | 5 | 24 | 4 |
