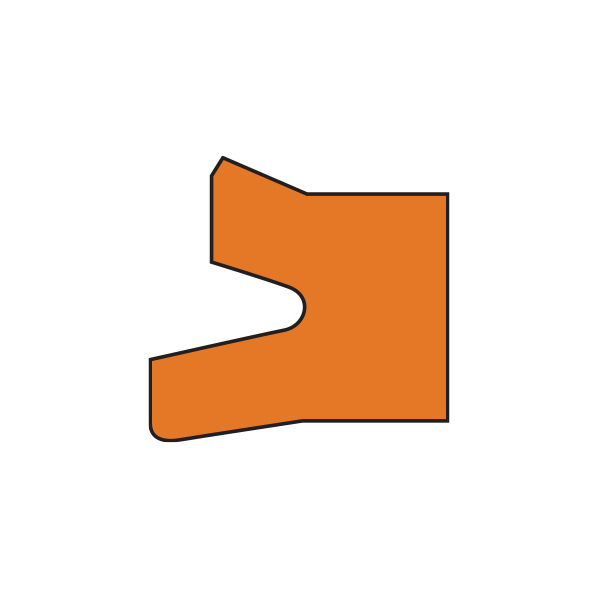

ODI

ODI

Description

None

* None

Application

None

Materials

(AU)

Category:TRACK ADJUSTER SEAL

TECHNICAL DATA

TECHNICAL DATA

Temperature	None -35°C/+100°C
Pressure	None 0~35 (70with nylon back up) MPa
Speed	None 0.03~1 m/s
Medias	None Mineral hydraulic oils

MATERIALS

MATERIALS

AU

None.

Chemical resistance	None
Compatibility issue	None
Temperature range	None

DIMENSION

DIMENSION

Item	Internal Diameter (d)	Outside Diameter (D)	Height (H)	Height (HA)	Height (HB)	Outside Diameter (D1)	C
ODI-18	18	8	7.5	8.5	10.5	17	2.5
ODI-19.2	19.2	11.2	5	5.7	7.7	18.2	2.5
ODI-20	20	10	6	7	9	19	2.5
ODI-20	20	10	7.5	8.5	10.5	19	2.5
ODI-20	20	10	8	9	11	19	2.5
ODI-20	20	12	5	5.7	7.7	19	2.5
ODI-22	22	14	5	5.7	7.7	21	2.5
ODI-24	24	14	7.5	8.5	10.5	23	3.5
ODI-25	25	15	6	7	9	24	3.5
ODI-25	25	15	8	9	11	24	3.5
ODI-25	25	17	5	5.7	7.7	24	3.5
ODI-26	26	16	7.5	8.5	10.5	25	3.5
ODI-26	26	18	5	5.7	7.7	25	3.5
ODI-28	28	15	10	11	13	27	3.5
ODI-28	28	20	5	5.7	7.7	27	2
ODI-30	30	20	5	5.7	7.7	29	3.5
ODI-30	30	20	6	7	9	29	3.5
ODI-30	30	20	8	9	11	29	3.5
ODI-30	30	22.4	5	5.7	7.7	29	2
ODI-31	31	18	10	11	13	30	3.5
ODI-31.5	31.5	18.5	8	9	11	30.5	3.5
ODI-31.5	31.5	18.5	10	11	13	30.5	3.5
ODI-31.5	31.5	21.5	6	7	9	30.5	3.5
ODI-31.5	31.5	21.5	8	9	11	30.5	3.5
ODI-31.5	31.5	23.5	5	5.7	7.7	30.5	2
ODI-33	33	20	10	11	13	32	3.5
ODI-33	33	25	5	5.7	7.7	32	2
ODI-35	35	22	10	11	13	34	3.5
ODI-35	35	25	6	7	9	34	3.5
ODI-35	35	25	8	9	11	34	3.5
ODI-35.4	35.4	22.4	10	11	13	34.4	3.5
ODI-35.5	35.5	22.5	8	9	11	34.5	3.5
ODI-35.5	35.5	22.5	10	11	13	34.5	3.5
ODI-35.5	35.5	25.5	6	7	9	34.5	3.5
ODI-35.5	35.5	25.5	8	9	11	34.5	3.5
ODI-38	38	25	10	11	13	37	3.5
ODI-40	40	25	9	10	12	39	3.5
ODI-40	40	25	10	11	13	39	3.5
ODI-40	40	27	8	9	12	39	3.5
ODI-40	40	27	10	11	14	39	3.5
ODI-40	40	30	8	9	12	39	3.5
ODI-41	41	28	10	11	14	40	3.5
ODI-43	43	30	10	11	14	42	3.5
ODI-44.5	44.5	31.5	10	11	14	43.5	3.5
ODI-45	45	30	9	10	13	44	3.5
ODI-45	45	30	10	11	14	44	3.5
ODI-45	45	32	8	9	12	44	3.5
ODI-45	45	32	10	11	14	44	3.5
ODI-45	45	35	8	9	12	44	3.5
ODI-50	50	34	10	11	14	49	4
ODI-50	50	34	12	13	16	49	4
ODI-50	50	35	9	10	13	49	4
ODI-50	50	35	10	11	14	49	4
ODI-50	50	35	12	13	16	49	4
ODI-50	50	40	8	9	12	49	4
ODI-51.5	51.5	35.5	12	13	16	50.5	4
ODI-55	55	40	9	10	13	54	4
ODI-55	55	40	10	11	14	54	4
ODI-55	55	45	8	9	12	54	4
ODI-56	56	40	10	11	14	55	4
ODI-56	56	40	12	13	16	55	4
ODI-56	56	41	9	10	13	55	4
ODI-56	56	41	10	11	14	55	4
ODI-56	56	46	8	9	12	55	4
ODI-60	60	45	9	10	13	59	4
ODI-60	60	45	10	11	14	59	4
ODI-60	60	50	8	9	12	59	4
ODI-61	61	45	12	13	16	60	4
ODI-63	63	47	10	11	14	62	4
ODI-63	63	47	12	13	16	62	4
ODI-63	63	48	9	10	13	62	4
ODI-63	63	48	10	11	14	62	4
ODI-63	63	53	8	9	12	62	4
ODI-65	65	50	9	10	13	64	4
ODI-65	65	50	10	11	14	64	4
ODI-65	65	55	8	9	12	64	4
ODI-66	66	50	12	13	12	65	4
ODI-69	69	53	12	13	16	68	4
ODI-70	70	50	12	13	16	69	5
ODI-70	70	55	9	10	13	69	5
ODI-70	70	55	10	11	14	69	5
ODI-70	70	60	8	9	12	69	5
ODI-71	71	51	12	13	16	70	5
ODI-71	71	55	10	11	14	70	5
ODI-71	71	55	12	13	16	70	5
ODI-71	71	56	9	10	13	70	5
ODI-71	71	56	10	11	14	70	5
ODI-71	71	61	8	9	12	70	5
ODI-75	75	55	12	13	16	74	5
ODI-75	75	60	9	10	13	74	5
ODI-75	75	60	10	11	14	74	5
ODI-75	75	65	8	9	12	74	5
ODI-76	76	60	12	13	16	75	5
ODI-80	80	60	12	13	16	79	5
ODI-80	80	64	10	11	14	79	5
ODI-80	80	64	12	13	16	79	5
ODI-80	80	65	9	10	13	79	5
ODI-80	80	65	10	11	14	79	5
ODI-80	80	70	8	9	12	79	5
ODI-85	85	65	12	13	16	84	5
ODI-85	85	70	9	10	13	84	5
ODI-85	85	70	10	11	14	84	5
ODI-85	85	75	8	9	12	84	5
ODI-90	90	70	12	13	16	89	5
ODI-90	90	70	15	16	19	89	5
ODI-90	90	75	9	10	13	89	5
ODI-90	90	75	10	11	14	89	5
ODI-90	90	80	8	9	12	89	5
ODI-95	95	75	12	13	16	94	5
ODI-95	95	75	15	16	19	94	5
ODI-95	95	80	9	10	13	94	5
ODI-95	95	80	10	11	14	94	5
ODI-100	100	80	12	13	16	98	5
ODI-100	100	80	15	16	19	98	5
ODI-100	100	85	10	11	14	98	5
ODI-105	105	85	15	16	19	103	5
ODI-110	110	90	12	13	16	108	5
ODI-110	110	90	15	16	19	108	5
ODI-110	110	95	10	11	14	108	5
ODI-112	112	92	12	13	16	110	5
ODI-112	112	92	15	16	19	110	5
ODI-112	112	97	9	10	13	110	5
ODI-112	112	97	10	11	14	110	5
ODI-115	115	95	15	16	19	113	5
ODI-120	120	100	12	13	16	118	5
ODI-120	120	100	15	16	19	118	5
ODI-120	120	105	10	11	14	118	5
ODI-125	125	105	12	13	16	123	5
ODI-125	125	105	15	16	19	123	5
ODI-125	125	105	16	17	20	123	5
ODI-125	125	110	9	10	13	123	5
ODI-125	125	110	10	11	14	123	5
ODI-130	130	110	12	13	16	128	5
ODI-130	130	110	15	16	19	128	5
ODI-130	130	110	16	17	20	128	5
ODI-130	130	115	10	11	14	128	5
ODI-132	132	112	1.5	16	19	130	5
ODI-140	140	120	12	13	16	138	5
ODI-140	140	120	15	16	19	138	5
ODI-140	140	120	16	17	20	138	5
ODI-140	140	125	10	11	14	138	5
ODI-150	150	125	19	20	23	148	6.5
ODI-150	150	125	20	21	24	148	6.5
ODI-150	150	130	12	13	16	148	6.5
ODI-150	150	130	16	17	20	148	6.5
ODI-150	150	135	10	11	14	148	6.5
ODI-157	157	132	20	21	24	155	6.5
ODI-160	160	135	19	20	23	158	6.5
ODI-160	160	135	20	21	24	158	6.5
ODI-160	160	140	12	13	16	158	6.5
ODI-160	160	140	16	17	20	158	6.5
ODI-160	160	145	10	11	14	158	6.5
ODI-165	165	140	19	20	23	163	6.5
ODI-165	165	140	20	21	24	163	6.5
ODI-170	170	145	19	20	23	168	6.5
ODI-170	170	145	20	21	24	168	6.5
ODI-170	170	150	12	13	16	168	6.5
ODI-170	170	150	16	17	20	168	6.5
ODI-170	170	155	10	11	15	168	6.5
ODI-180	180	155	16	17	21	178	6.5
ODI-180	180	155	19	20	24	178	6.5
ODI-180	180	155	20	21	25	178	6.5
ODI-180	180	160	12	13	17	178	6.5
ODI-180	180	160	16	17	21	178	6.5
ODI-180	180	165	10	11	15	178	6.5
