TCW
Description

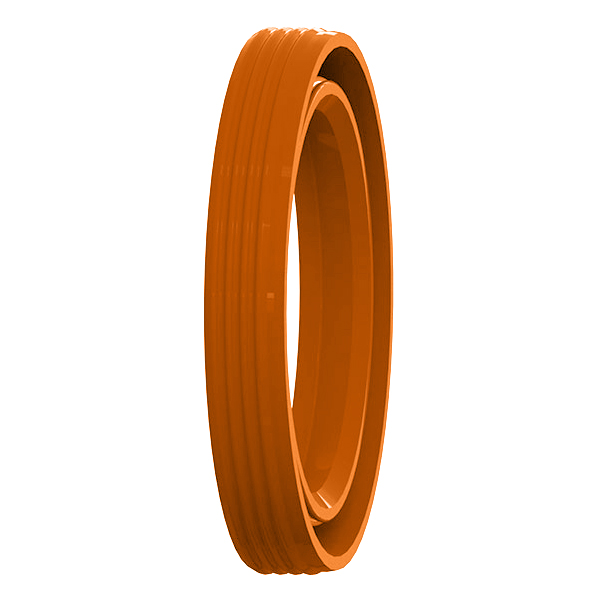

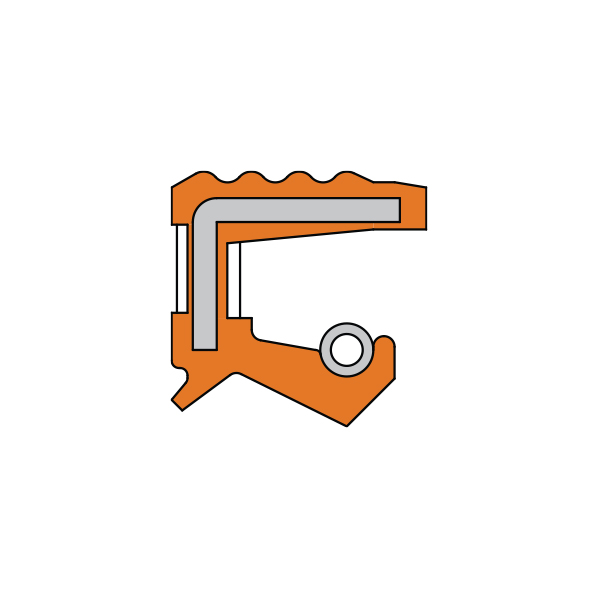

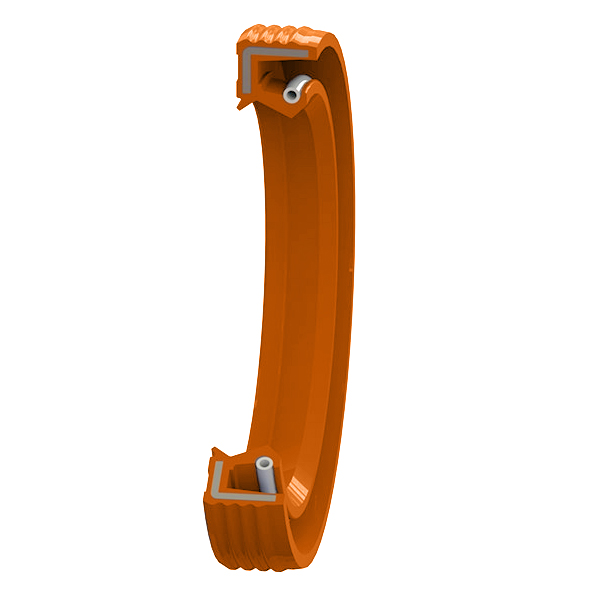

The TCW profile is a shaft seal composed of a single metal cage with rubber grooves on the outside of the cage, a primary sealing lip with integrated spring and an additional anti-pollution lip.
* Very good static sealing
* Very good thermal expansion compensation
* Greater roughness is allowed in the housing
* Reduced risk of corrosion
* Easy to assemble with very
* limited bounce-back effect
* Sealing for low and high viscosity fluids
* Modern primary sealing lip with low radial forces
* Protection against undesirable air contaminants
Application
Shaft sealing
Engines
Pumps
Transmissions
Materials
Rubber
ACM 70 – 75 Shore A
EPDM 70 – 75 Shore A
FKM 70 – 75 Shore A
HNBR 70 – 75 Shore A
NBR 70 – 75 Shore A
Metal cage
Steel – AISI 1010
Spring
Steel – AISI 1070 – 1090
Stainless steel – AISI 316
TECHNICAL DATA
TECHNICAL DATA
| Temperature | -25°C/+200°C |
| Pressure | None 50 MPa |
| Speed | None 0.5 m/s |
| Medias | None Mineral hydraulic oils |
MATERIALS
MATERIALS
ACM
Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.
| Chemical resistance | Mineral oils (motor oils, gear box oils, ATF oils) Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Glycol-based brake fluids (Dot 3 & 4) Aromatic and chlorinated hydrocarbons Water and steam Acids, alkalis and amines |
| Temperature range | -25°C to + 150°C (short-term peak at +160°C) -35°C / +150°C with particular ACMs |
EPDM
As an Ethylene Propylene Diene Monomer copolymer, EPDM is commonly used for hot water taps, cooling systems, brake systems, dishwashers and washing machines.
| Chemical resistance | Hot water and steam up to +150°C Glycol-based brake fluids (Dot 3 & 4) and silicone-based brake fluids (Dot 5) Organic and inorganic acids Cleaning agents, sodium and potassium alkalis Hydraulic fluids (HFD-R) Silicone oils and greases |
|---|---|
| Compatibility issue | Mineral oils and greases Hydrocarbons Low impermeability to gas |
| Temperature range | -45°C / +150°C (short-term peak at +175°C) |
FKM
Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.
| Chemical resistance | Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils. Fire-resistant liquids (HFD) Silicone oils and greases Mineral and vegetable oils and greases Aliphatic hydrocarbons (propane, butane, petroleum) Aromatic hydrocarbons (benzene, toluene) Chlorinated hydrocarbons (trichlorethylene) Fuel (including high alcohol content) Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Glycol-based brake fluids. Ammonia gas. Organic acids with a low molecular weight (formic and acetic acids) |
| Temperature range | -20°C / +200°C (short-term peak at +230°C) -40°C / +200°C with particular FKMs |
HNBR
This HNBR-based rubber is obtained through selective hydrogenation of the NBR’s butadiene groups. It is commonly used for power-assisted steering and for air conditioning.
| Chemical resistance | Aliphatic hydrocarbons Mineral and vegetable oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, saline solutions and bases for operation at an average temperature Water and steam up to +150°C Atmospheric and ozone agents |
|---|---|
| Compatibility issue | Chlorinated hydrocarbons Polar solvents (ketones, esters and ethers) Strong acids |
| Temperature range | -30°C / +150°C (short-term peak at +160°C) -40°C / +150°C with particular HNBRs |
NBR
Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.
| Chemical resistance | Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max) |
|---|---|
| Compatibility issue | Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents |
| Temperature range | -30°C / +100°C (short-term peak at +120°C) -40°C / +100°C with particular NBRs |
METAL CAGE
| Application | Material | Standard | Characteristics |
| Metal cage | Non-alloy standard steel | AISI 1010 (DIN 1624) |
Cold rolled steel |
| Metal cage | Nickel chrome steel | AISI 304 (DIN 1.4301 – V2A) |
Standard stainless steel |
| Metal cage and spring | Chrome-nickel-molybdenum steel | AISI 316 (DIN 1.4401 – V4A) |
Stainless steel highly resistant to corrosion |
| Spring | Steel for springs | AISI 1070 – 1090 DIN 17223 |
Cold drawn carbon steel wire |
| Spring | Nickel chrome steel | AISI 302 (DIN 1.4300) |
Stainless steel for springs with a high carbon content |
DIMENSION
DIMENSION
| Item | Internal Diameter (d) | Outside Diameter (D1 H8) | Height (H) |
|---|---|---|---|
| TCW 8x16x5 | 8 | 16 | 5 |
| TCW 17x27x6 | 17 | 27 | 6 |
| TCW 19x32x7 | 19 | 32 | 7 |
| TCW 20x32x5.5 | 20 | 32 | 5.5 |
| TCW 20x32x6 | 20 | 32 | 6 |
| TCW 20x32x7 | 20 | 32 | 7 |
| TCW 20x35x5.5 | 20 | 35 | 5.5 |
| TCW 20x52x7.5 | 20 | 52 | 7.5 |
| TCW 22x40x8 | 22 | 40 | 8 |
| TCW 25x35x7 | 25 | 35 | 7 |
| TCW 25x40x7 | 25 | 40 | 7 |
| TCW 25x45x8 | 25 | 45 | 8 |
| TCW 25x47x7 | 25 | 47 | 7 |
| TCW 25x47x10 | 25 | 47 | 10 |
| TCW 26x42x8 | 26 | 42 | 8 |
| TCW 27x37x7 | 27 | 37 | 7 |
| TCW 27x43x8 | 27 | 43 | 8 |
| TCW 27x47x7 | 27 | 47 | 7 |
| TCW 28x38x6 | 28 | 38 | 6 |
| TCW 28x38x7 | 28 | 38 | 7 |
| TCW 28x42x5 | 28 | 42 | 5 |
| TCW 28x42x7 | 28 | 42 | 7 |
| TCW 28x44x6 | 28 | 44 | 6 |
| TCW 28x56x7 | 28 | 56 | 7 |
| TCW 28x70x10 | 28 | 70 | 10 |
| TCW 30x40x7 | 30 | 40 | 7 |
| TCW 30x42x6 | 30 | 42 | 6 |
| TCW 30x42x7 | 30 | 42 | 7 |
| TCW 30x45x5 | 30 | 45 | 5 |
| TCW 30x52x7 | 30 | 52 | 7 |
| TCW 30x55x10 | 30 | 55 | 10 |
| TCW 30x72x8 | 30 | 72 | 8 |
| TCW 32x42x7 | 32 | 42 | 7 |
| TCW 32x46x6 | 32 | 46 | 6 |
| TCW 32x47x8 | 32 | 47 | 8 |
| TCW 32x47x10 | 32 | 47 | 10 |
| TCW 34x47x7 | 34 | 47 | 7 |
| TCW 34x47x8 | 34 | 47 | 8 |
| TCW 35x47x7 | 35 | 47 | 7 |
| TCW 35x47x8 | 35 | 47 | 8 |
| TCW 35x48x10 | 35 | 48 | 10 |
| TCW 35x50x7 | 35 | 50 | 7 |
| TCW 35x50x10 | 35 | 50 | 10 |
| TCW 35x52x8 | 35 | 52 | 8 |
| TCW 35x55x9 | 35 | 55 | 9 |
| TCW 35x57x9 | 35 | 57 | 9 |
| TCW 35x62x10 | 35 | 62 | 10 |
| TCW 36x50x7 | 36 | 50 | 7 |
| TCW 36x57x10 | 36 | 57 | 10 |
| TCW 36x62x7 | 36 | 62 | 7 |
| TCW 37x57x10 | 37 | 57 | 10 |
| TCW 37x61x10 | 37 | 61 | 10 |
| TCW 38x50x6 | 38 | 50 | 6 |
| TCW 38x52x6 | 38 | 52 | 6 |
| TCW 38x52x7 | 38 | 52 | 7 |
| TCW 38x60x8 | 38 | 60 | 8 |
| TCW 38x62x8 | 38 | 62 | 8 |
| TCW 39x57x9.7 | 39 | 57 | 9.7 |
| TCW 39x72x8 | 39 | 72 | 8 |
| TCW 40x52x7 | 40 | 52 | 7 |
| TCW 40x52x8 | 40 | 52 | 8 |
| TCW 40x54x6.8 | 40 | 54 | 6.8 |
| TCW 40x55x7 | 40 | 55 | 7 |
| TCW 40x55x10 | 40 | 55 | 10 |
| TCW 40x56x7 | 40 | 56 | 7 |
| TCW 40x58x10 | 40 | 58 | 10 |
| TCW 40x60x10 | 40 | 60 | 10 |
| TCW 40x76x7 | 40 | 76 | 7 |
| TCW 42x53x7 | 42 | 53 | 7 |
| TCW 42x54x6 | 42 | 54 | 6 |
| TCW 42x55x7 | 42 | 55 | 7 |
| TCW 42x55x9 | 42 | 55 | 9 |
| TCW 42x56x7 | 42 | 56 | 7 |
| TCW 42x62x7 | 42 | 62 | 7 |
| TCW 42x66x6 | 42 | 66 | 6 |
| TCW 42x66x8 | 42 | 66 | 8 |
| TCW 44x72x8 | 44 | 72 | 8 |
| TCW 45x60x9 | 45 | 60 | 9 |
| TCW 45x62x7 | 45 | 62 | 7 |
| TCW 45x62x8 | 45 | 62 | 8 |
| TCW 45x62x10 | 45 | 62 | 10 |
| TCW 45x65x7 | 45 | 65 | 7 |
| TCW 45x67x8 | 45 | 67 | 8 |
| TCW 46x58x7 | 46 | 58 | 7 |
| TCW 48x68x8 | 48 | 68 | 8 |
| TCW 48x72x8 | 48 | 72 | 8 |
| TCW 49x60x7 | 49 | 60 | 7 |
| TCW 50x65x8 | 50 | 65 | 8 |
| TCW 50x68x10 | 50 | 68 | 10 |
| TCW 51x65x7 | 51 | 65 | 7 |
| TCW 52x68x8 | 52 | 68 | 8 |
| TCW 52x68x10 | 52 | 68 | 10 |
| TCW 55x80x10 | 55 | 80 | 10 |
| TCW 55x90x10 | 55 | 90 | 10 |
| TCW 57x73x8 | 57 | 73 | 8 |
| TCW 58x72x8 | 58 | 72 | 8 |
| TCW 58x80x8 | 58 | 80 | 8 |
| TCW 60x80x7.5 | 60 | 80 | 7.5 |
| TCW 60x80x10 | 60 | 80 | 10 |
| TCW 65x85x10 | 65 | 85 | 10 |
| TCW 65x90x10 | 65 | 90 | 10 |
| TCW 70x87x8.5 | 70 | 87 | 8.5 |
| TCW 70x88x8 | 70 | 88 | 8 |
| TCW 70x90x10 | 70 | 90 | 10 |
| TCW 70x100x10 | 70 | 100 | 10 |
| TCW 70x120x10 | 70 | 120 | 10 |
| TCW 72x92x9.5 | 72 | 92 | 9.5 |
| TCW 74x88x8 | 74 | 88 | 8 |
| TCW 75x90x8 | 75 | 90 | 8 |
| TCW 75x95x8 | 75 | 95 | 8 |
| TCW 75x95x12 | 75 | 95 | 12 |
| TCW 75x107x8 | 75 | 107 | 8 |
| TCW 76x92x9.5 | 76 | 92 | 9.5 |
| TCW 76x108x8.5 | 76 | 108 | 8.5 |
| TCW 78x110x8.5 | 78 | 110 | 8.5 |
| TCW 79x97x10 | 79 | 97 | 10 |
| TCW 80x100x8 | 80 | 100 | 8 |
| TCW 80x100x10 | 80 | 100 | 10 |
| TCW 80x100x12 | 80 | 100 | 12 |
| TCW 80x110x12 | 80 | 110 | 12 |
| TCW 85x100x9 | 85 | 100 | 9 |
| TCW 85x105x9 | 85 | 105 | 9 |
| TCW 85x105x11 | 85 | 105 | 11 |
| TCW 85x105x12 | 85 | 105 | 12 |
| TCW 85x110x10 | 85 | 110 | 10 |
| TCW 85x117x8 | 85 | 117 | 8 |
| TCW 85x119x8 | 85 | 119 | 8 |
| TCW 85x119x8.5 | 85 | 119 | 8.5 |
| TCW 88x104x8.5 | 88 | 104 | 8.5 |
| TCW 88x108x11 | 88 | 108 | 11 |
| TCW 90x104x11 | 90 | 104 | 11 |
| TCW 90x110x7 | 90 | 110 | 7 |
| TCW 90x110x8 | 90 | 110 | 8 |
| TCW 90x110x11 | 90 | 110 | 11 |
| TCW 90x110x12 | 90 | 110 | 12 |
| TCW 90x120x11 | 90 | 120 | 11 |
| TCW 92x108x9.5 | 92 | 108 | 9.5 |
| TCW 92x110x7 | 92 | 110 | 7 |
| TCW 92x110x9.5 | 92 | 110 | 9.5 |
| TCW 92x125x12 | 92 | 125 | 12 |
| TCW 93x114x13 | 93 | 114 | 13 |
| TCW 95x115x12 | 95 | 115 | 12 |
| TCW 95x120x13 | 95 | 120 | 13 |
| TCW 96x116x9 | 96 | 116 | 9 |
| TCW 100x110x7 | 100 | 110 | 7 |
| TCW 100x130x13 | 100 | 130 | 13 |
| TCW 110x130x13 | 110 | 130 | 13 |
| TCW 115x135x10 | 115 | 135 | 10 |
| TCW 125x143x13 | 125 | 143 | 13 |
| TCW 140x160x10 | 140 | 160 | 10 |
| TCW 150x172x18 | 150 | 172 | 18 |
