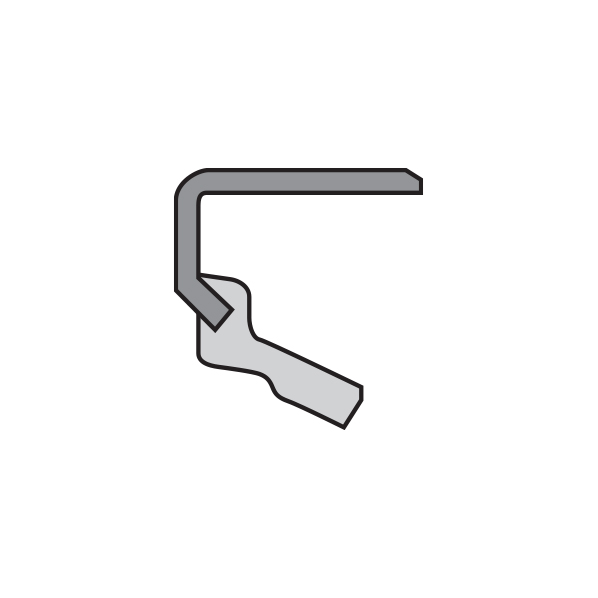

VB

Description

None

Application

None

Materials

Nitrile Butadiene Rubber (NBR)

TECHNICAL DATA

Temperature	None -30°C/+100°C
Pressure	None 30 MPa
Speed	None 1.0 m/s
Medias	None Mineral hydraulic oils

MATERIALS

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance	Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max)
Compatibility issue	Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents
Temperature range	-30°C / +100°C (short-term peak at +120°C) -40°C / +100°C with particular NBRs

DIMENSION

Item	Internal Diameter (d)	Outside Diameter (D1 H8)	Height (H)
AF 0082 E2	7	16	6
AF 0089 E3	7	20	5
AF 0123 F2	8	14	4
AF 0256 EO	10	20	4
AF 0276 EO	10	25	5
AF 0369 E2	12	22	4
AF 0380 EO	12	25	5
AF 0391 EO	12	30	6
AF 0511 FO	15	25	4
AF 0514EO	15	30	4
AF 0524 EO	15	30	5
AF 0585 EO	15	32	6
AF 0595 EO	15	35	6
AF 0596 EO	16	24	4
AF 0602 EO	15	32	6
AF 0608 EO	15	35	6
AF 0668 EO	16	24	4
AF 0682 E2	16	28	4
AF 0741 F1	17	30	5
AF 0749 EO	17	32	6
AF 0814EO	18	30	5
AF 0873 EO	19	35	6
AF 0882 FO	19	40	6
AF 0964 F1	20	26	6
AF 0994 GO	20	32	5
AF 1010 FO	20	35	6
AF 1027 EO	20	40	5
AF 1047 EO	20	47	6
AF 1113 E2	22	32	5
AF 1124 EO	22	35	5
AF 1132 EO	22	37	6
AF 1144 EO	22	42	5
AF 1250 EO	24	38	5
AF 1258 GO	24	40	6
AF 1291 EO	25	35	5
AF 1303 F2	25	38	5
AF 1311 GO	25	40	5
AF 1312 EO	25	40	6
AF 1333 EO	25	45	5
AF 1334 EO	25	45	7
AF 1347 EO	25	47	5
AF 1348 EO	25	47	6
AF 1359 EO	25	50	5
AF 1479 EO	26	48	6
AF 1517 EO	27	47	8
AF 1535 GO	28	40	5
AF 1548 EO	28	45	6
AF 1556 EO	28	47	5
AF 1560 EO	28	48	5
AF 1568 FO	28	50	6
AF 1654 EO	30	40	5
AF 1663 EO	30	42	5
AF 1676 EO	30	45	6
AF 1686 EO	30	46	5
AF 1703 EO	30	50	5
AF 1705 EO	30	50	8
AF 1717 EO	30	52	5
AF 1731 EO	30	55	5
AF 1741 E1	30	56	5
AF 1876 EO	32	45	5
AF 1899 EO	32	52	5
AF 2033 EO	35	45	5
AF 2039 EO	35	47	5
AF 2053 EO	35	50	5
AF 2055 EO	35	50	63
AF 2064 EO	35	52	5
AF 2079 FO	35	55	5
AF 2081 EO	35	55	8
AF 2102 EO	35	60	5
AF 2215 EO	38	50	5
AF 2229 EO	38	55	6
AF 2239 EO	38	58	8
AF 2253 EO	38	64	5
AF 2340 FO	40	52	5
AF 2357 EO	40	55	5
AF 2367 EO	40	58	6
AF 2373 EO	40	60	5
AF 2382 E3	40	62	5
AF 2383 EO	40	62	6
AF 2386 EO	40	62	8
AF 2399 EO	40	65	5
AF 2400 EO	40	65	6
AF 2480 EO	42	55	6
AF 2481 EO	42	55	7
AF 2492 EO	42	60	7
AF 2504 EO	42	65	9
AF 2640 EO	45	60	6
AF 2649 EO	45	62	7
AF 2655 EO	45	65	5
AF 2664 EO	45	68	6
AF 2666 EO	45	68	9
AF 2682 EO	45	72	6
AF 2779 EO	48	65	7
AF 2787 E2	48	70	6
AF 2835 EO	50	65	6
AF 2846 EO	50	68	7
AF 2860 EO	50	72	6
AF 2883 EO	50	80	6
AF 2884 EO	50	80	7
AF 2958 EO	52	70	7
AF 3034 E2	55	70	6
AF 3038 EO	55	72	7
AF 3044 EO	55	74	6
AF 3088 EO	56	70	6
AF 3147 EO	58	75	7
AF 3150 EO	58	80	5
AF 3152 EO	58	80	9
AF 3191 EO	60	75	6
AF 3203 GO	60	78	7
AF 3217 EO	60	82	6
AF 3220 EO	60	82	9
AF 3230 EO	60	85	6
AF 3240 EO	60	90	7
AF 3293 EO	62	85	6
AF 3315 FO	63	80	7
AF 3398 EO	65	88	6
AF 3512 EO	70	90	10
AF 3516 EO	70	92	7
AF 3613 EO	75	100	7
AF 3614 EO	75	100	8
AF 3723 EO	80	95	6
AF 3729 EO	80	100	7
AF 3840 EO	85	110	8
AF 3990 EO	95	120	8
AF 4059 E1	100	125	8
AF 4166 EO	105	150	12
AF 4225 EO	110	150	15
AF 4278 EO	115	140	13
AF 4346 EO	120	150	14
AF 4539 EO	140	165	15
AF 4540 EO	140	170	10
AF 4736 E1	165	190	13
AF 5018 EO	195	220	15
AF 5054 E2	200	230	16
