SC

Description

None

Application

None

Materials

Polyacrylate (ACM) + Fluorinated Rubber (FKM) + Nitrile Butadiene Rubber (NBR) + Silicone Rubber: Methyl Vinyl Polysiloxane (VMQ)

Categories:STANDARD (NOK) SEALS, STANDARD (NOK) SEALS, STANDARD (NOK) SEALS, STANDARD (NOK) SEALS, STANDARD (NOK) SEALS, STANDARD (NOK) SEALS, STANDARD (NOK) SEALS, TIMING OIL SEAL, TIMING OIL SEAL

TECHNICAL DATA

Temperature	None -30°C/+100°C
Pressure	None 30 MPa
Speed	None 1.0 m/s
Medias	None Mineral hydraulic oils

MATERIALS

ACM

Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.

Chemical resistance	Mineral oils (motor oils, gear box oils, ATF oils) Atmospheric and ozone agents
Compatibility issue	Glycol-based brake fluids (Dot 3 & 4) Aromatic and chlorinated hydrocarbons Water and steam Acids, alkalis and amines
Temperature range	-25°C to + 150°C (short-term peak at +160°C) -35°C / +150°C with particular ACMs

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance	Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils. Fire-resistant liquids (HFD) Silicone oils and greases. Mineral and vegetable oils and greases. Aliphatic hydrocarbons (propane, butane, petroleum) Aromatic hydrocarbons (benzene, toluene) Chlorinated hydrocarbons (trichlorethylene) Fuel (including high alcohol content) Atmospheric and ozone agents.
Compatibility issue	Glycol-based brake fluids. Ammonia gas. Organic acids with a low molecular weight (formic and acetic acids)
Temperature range	-20°C / +200°C (short-term peak at +230°C) -40°C / +200°C with particular FKMs

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance	Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max)
Compatibility issue	Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents
Temperature range	-30°C / +100°C (short-term peak at +120°C) -40°C / +100°C with particular NBRs

VMQ

This FVMQ-based rubber is very often used in fuel systems.

Chemical resistance	Animal and vegetable oils and greases. Water for operation at an average temperature. Diluted saline solutions. Atmospheric and ozone agents.
Compatibility issue	Superheated steam up to +120°C Chlorinated hydrocarbons with a low molecular weight (trichlorethylene) Aromatic hydrocarbons (benzene, toluene)
Temperature range	-60°C / +200°C (short-term peak at +230°C)

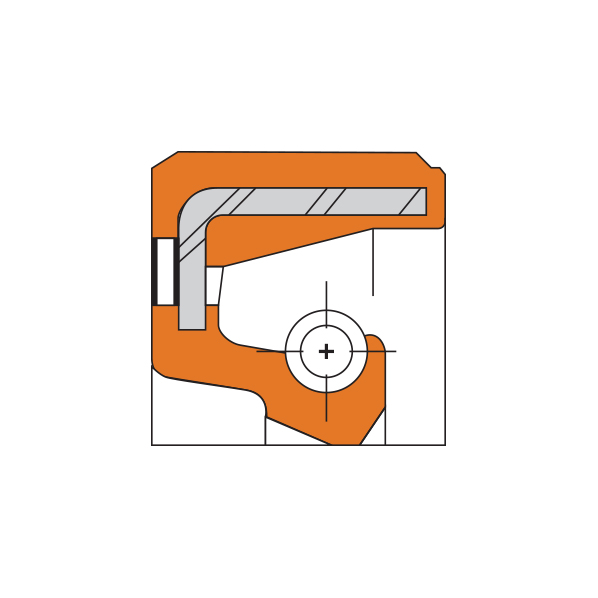

DIMENSION - SC type NBR

Part Number	Internal Diameter (d)	Outside Diameter (D)	Height (H)
AC 0052 E3	6	16	7
AC 0087 EO	7	18	7
AC 0090 AO	7	20	7
AC 0145 EO	8	18	7
AC 0158 A8	8	22	7
AC 0205 AO	9	22	7
AC 0260 HO	10	20	7
AC 0267 EO	10	21	8
AC 0271 EO	10	22	8
AC 0279 AO	10	25	7
AC 0283 EO	10	26	8
AC 0285 EO	10	28	8
AC 0288 EO	10	30	7
AC 0308 E1	11	22	7
AC 0311 EO	11	25	7
AC 0314 EO	141	30	7
AC 0371 EO	12	22	7
AC 0382 AO	12	25	7
AC 0387 EO	12	28	7
AC 0393 EO	12	30	9
AC 0473 FO	13	25	7
AC 0478 AO	13	28	7
AC 0483 E1	13	30	8
AC 0514 EO	14	24	6
AC 0519 EO	14	25	7
AC 0526 AO	14	28	7
AC 0536 EO	14	32	9
AC 0584 E1	15	24	7
AC 0588 E5	15	25	7
AC 0592 E1	15	28	7
AC 0598 AO	15	30	7
AC 0603 EO	15	32	7
AC 0604 EO	15	32	9
AC 0606 EO	15	34	10
AC 0610 F3	15	35	7
AC 0611 EO	15	35	8
AC 0616 EO	15	37	7
AC 0678 EO	16	26	7
AC 0684 E1	16	28	6
AC 0685 FO	16	28	7
AC 0687 AO	16	30	7
AC 0691 EO	16	32	8
AC 0742 EO	17	60	6
AC 0743 EO	17	30	7
AC 0745 EO	17	30	8
AC 0750 E1	17	32	7
AC 0758 EO	17	35	6
AC 0759 HO	17	35	7
AC 0760 AO	17	35	8
AC 0768 E1	17	38	7
AC 0771 FO	17	40	8
AC 0773 EO	17	40	10
AC 0816 EO	18	30	7
AC 0817 EO	18	30	8
AC 0825 EO	18	32	9
AC 0828 EO	18	35	7
AC 0829 AO	18	35	8
AC 0838 EO	18	38	7
AC 0864 FO	19	30	8
AC 0875 AO	19	35	8
AC 0883 EO	19	40	10
AC 0984 EO	20	30	7
AC 0987 EO	20	30	9
AC 0997 EO	20	32	8
AC 1003 E1	20	34	7
AC 1012 EO	20	35	7
AC 1013 AO	20	35	8
AC 1017 EO	20	36	7
AC 1029 EO	20	40	7
AC 1030 EO	20	40	8
AC 1032 FO	20	40	10
AC 1033 AO	20	40	11
AC 1038 EO	20	42	10
AC 1045 EO	20	45	12
AC 1048 EO	20	47	7
AC 1084 E1	21	35	7
AC 1116 E3	22	32	7
AC 1126 FO	22	35	7
AC 1127 EO	22	35	8
AC 1130 EO	22	36	10
AC 1131 EO	22	37	8
AC 1133 EO	22	38	8
AC 1136 EO	22	38	12
AC 1138 EO	22	40	8
AC 1140 EO	22	40	10
AC 1145 EO	22	42	7
AC 114 7 EO	22	42	10
AC 1148 AO	22	42	11
AC 1213 P1	23	32	7
AC 1224 AO	12	42	11
AC 1251 EO	24	38	7
AC 1252 EO	24	38	8
AC 1259 EO	24	40	7
AC 1260 AO	24	40	8
AC 1292 GO	25	35	6
AC 1302 FO	25	37	8
AC 1306 EO	25	38	7
AC 1314 AO	25	40	8
AC 1315 EO	25	40	10
AC 1322 EO	25	42	8
AC 1324 EO	25	42	10
AC 1325 EO	25	42	11
AC 1327 FO	25	44	7
AC 1334 EO	25	45	7
AC 1335 EO	25	45	8
AC 1338 A7	25	45	11
AC 1348 E1	25	47	6
AC 1350 EO	25	47	7
AC 1357 EO	25	48	8
AC 1361 EO	25	50	9
AC 1374 E2	25	52	8
AC 1464 EO	26	38	8
AC 1468 EO	26	40	8
AC 1474 AO	26	42	8
AC 1511 EO	27	42	8
AC 1512 EO	27	43	9
AC 1518 AO	27	47	11
AC 1531 FO	28	38	7
AC 1538 FO	28	40	8
AC 1544 EO	28	42	8
AC 1545 EO	28	44	78
AC 1546 EO	28	44	11
AC 1550 EO	28	45	8
AC 1563 AO	28	48	11
AC 1569 EO	28	50	8
AC 1570 EO	28	50	10
AC 1666 E2	30	12	8
AC 1673 EO	30	44	9
AC 1677 E1	30	45	7
AC 1679 AO	30	45	8
AC 1681 EO	30	45	11
AC 1682 EO	30	45	12
AC 1689 EO	30	46	9
AC 1692 EO	30	47	8
AC 1700 EO	30	48	8
AC 1702 EO	30	48	11
AC 1704 EO	30	50	7
AC 1706 EO	30	50	9
AC 1708 EO	30	50	10
AC 1709 AO	30	50	11
AC 1719 EO	30	52	7
AC 1721 EO	30	52	10
AC 1797 E1	31	47	7
AC 1799 EO	31	50	8
AC 1871 G1	32	44	9
AC 1880 EO	32	45	8
AC 1884 EO	32	46	8
AC 1893 EO	32	48	7
AC 1898EO	32	51	10
AC 1902 EO	32	52	8
AC 1904 AO	32	52	11
AC 1933 EO	33	50	7
AC 1934 EO	33	50	8
AC 1937 EO	33	52	7
AC 1939 EO	33	56	12
AC 1968 G1	34	48	8
AC 1971 EO	34	50	7
AC 1978 AO	34	54	11
AC 2041 EO	35	47	7
AC 2048 EO	35	48	8
AC 2056 EO	35	50	7
AC 2057 AO	35	50	8
AC 2060 EO	35	50	11
AC 2066 EO	35	52	7
AC 2067 EO	35	52	8
AC 2068 EO	35	52	9
AC 2069 EO	35	52	10
AC 2081 EO	35	55	8
AC 2085 AO	35	55	11
AC 2094 EO	35	56	10
AC 2099 EO	35	58	9
AC 2103 E1	35	60	8
AC 2107 EO	35	60	12
AC 2118 EO	35	62	10
AC 2121 EO	35	62	12
AC 2162 EO	36	50	7
AC 2166 EO	36	54	8
AC 2204 EO	37	62	12
AC 2218 EO	38	50	8
AC 2230 EO	38	55	8
AC 2231 EO	38	55	9
AC 2233 El	38	56	10
AC 2239 EO	38	58	8
AC 2240 A7	38	58	11
AC 2250 EO	38	62	11
AC 2343 E4	40	52	8
AC 2358 El	40	55	7
AC 2359 EO	40	55	8
AC 2361 EO	40	55	9
AC 2362 EO	40	55	10
AC 2365 EO	40	56	8
AC 2368 EO	40	58	7
AC 2369 AO	40	58	8
AC 2375 EO	40	60	8
AC 2377 EO	40	60	10
AC 2385 EO	40	62	7
AC 2386 EO	40	62	8
AC 2388 AO	40	62	11
AC 2390 EO	40	62	12
AC 2402 EO	40	65	10
AC 2403 EO	40	65	12
AC 2405 EO	40	65	14
AC 2491 EO	42	58	10
AC 2493 EO	42	60	9
AC 2499 EO	42	62	10
AC 2504 E0	42	65	9
AC 2504 EO	42	65	12
AC 2539 EO	43	60	10
AC 2643 EO	45	60	9
AC 2651 AB	45	62	9
AC 2652 EO	45	62	10
AC 2653 EO	45	62	12
AC 2658 EO	45	65	10
AC 2659 EO	45	65	12
AC 2666 EO	45	68	9
AC 2667 EO	45	68	10
AC 2668 AO	45	68	12
AC 2676 EO	45	70	12
AC 2677 EO	45	70	14
AC 2684 EO	45	72	10
AC 2685 EO	45	72	12
AC 2717 EO	46	65	9
AC 2735 EO	47	70	12
AC 2780 EO	48	65	9
AC 2785 EO	48	68	10
AC 2788 E0	48	70	9
AC 2788 EO	48	70	12
AC 2838 G2	50	65	9
AC 2847 EO	50	68	9
AC 2848 EO	50	68	10
AC 2854 EO	50	70	10
AC 2857 EO	50	70	12
AC 2861 EO	50	72	9
AC 2864 KO	50	72	12
AC 2865 EO	50	72	13
AC 2872 EO	50	74	12
AC 2887 EO	50	80	12
AC 2888 EO	50	80	14
AC 2959 EO	52	70	9
AC 2961 EO	52	72	10
AC 2965 EO	52	75	9
AC 2967 A5	52	75	12
AC 3014 EO	54	72	12
AC 3021 E1	54	82	10
AC 3036 EO	55	70	9
AC 3040 AO	55	72	9
AC 3053 E1	55	78	9
AC 3055 AO	55	78	12
AC 3062 EO	55	80	12
AC 3072 EO	55	85	14
AC 3094 EO	56	78	12
AC 3107 E1	57	78	10
AC 3148 EO	58	75	9
AC 3152 EO	58	80	9
AC 3154 A9	58	80	12
AC 3193 E2	60	75	9
AC 3204 EO	60	78	9
AC 3211 EO	60	80	10
AC 3213 EO	60	80	12
AC 3220 EO	60	82	9
AC 3222 AO	60	82	12
AC 3234 EO	60	85	12
AC 3290 EO	62	80	9
AC 3295 EO	62	85	9
AC 3297 AO	62	85	12
AC 3316 EO	63	80	9
AC 3321 EO	63	85	12
AC 3389 EO	65	82	10
AC 3390 EO	65	82	12
AC 3394 E1	65	85	10
AC 3395 EO	65	85	12
AC 3400 AO	65	88	12
AC 3406 EO	65	90	10
AC 3408 EO	65	90	12
AC 3409 AO	65	90	12
AC 3413 EO	65	90	13
AC 3414 FO	65	95	12
AC 3427 EO	65	95	14
AC 3451 EO	66	86	10
AC 3459 A4	67	90	10
AC 3463 EO	68	95	13
AC 3505 EO	70	88	12
AC 3513 E1	70	90	12
AC 3519 AO	70	92	12
AC 3527 AO	70	95	13
AC 3532 EO	70	100	14
AC 3549 E1	71	95	13
AC 3562 EO	72	100	12
AC 3618 EO	75	100	13
AC 3628 EO	75	105	12
AC 3631 EO	75	105	15
AC 3731 EO	80	100	9
AC 3732 E1	80	100	10
AC 3744 AO	80	105	13
AC 3761 EO	80	115	15
AC 3786 E0	82	105	13
AC 3842 GO	85	110	13
AC 3855 EO	85	120	15
AC 3879 EO	88	115	13
AC 3932 AO	90	115	13
AC 3938 EO	90	120	13
AC 3944 EO	90	125	15
AC 3994 EO	95	120	13
AC 4007 EO	95	130	15
AC 4063 G2	100	125	13
AC 4153 FO	105	135	14
AC 4212 E0	110	140	14
AC 4282 FO	115	145	14
AC 4346 FO	120	155	16
AC 4355 EO	125	155	14
AC 4399 E1	125	160	16
AC 4404 EO	128	153	18
AC 4451 F2	130	160	14
AC 4465 EO	130	170	16
AC 4498 EO	135	165	14
AC 4542 EO	140	170	14
AC 4558 EO	140	185	16
AC 4581 EO	145	175	14
AC 4588 EO	145	190	16
AC 4624 E1	150	180	14
AC 4672 EO	155	190	14
AC 4712 EO	160	190	15
AC 4713 E3	160	190	16
AC 4717 E2	160	195	18
AC 4724 E3	160	210	20
AC 4804 EO	170	210	15
AC 4815 EO	170	225	20
AC 4897 FO	180	210	15
AC 4898 EO	180	210	16
AC 4911 E1	180	220	20
AC 4975 E4	190	225	15
AC 4993 EO	190	245	22
AC 5052 EO	200	230	14
AC 5053 E1	200	230	15
AC 5054 EO	200	230	16
AC 5068 E4	200	240	20
AC 5070 E1	200	242	20
AC 5075 EO	200	250	16
AC5133EO	210	240	15
AC 5140 EO	210	250	20
AC 5147 E1	210	265	25
AC 5204 E6	220	250	15
AC 5207 EO	220	255	16
AC 5210 EO	220	259	22
AC 5224 EO	220	275	23
AC 5281 EO	230	260	15
AC 5296 EO	230	285	23
AC 5339 EO	240	270	15
AC 5346 E2	240	275	16
AC 5398 E1	250	280	15
AC 5412 E5	250	310	25
AC 5461 E6	260	300	20
AC 5558 E1	280	316	18
AC 5568 EO	280	330	24

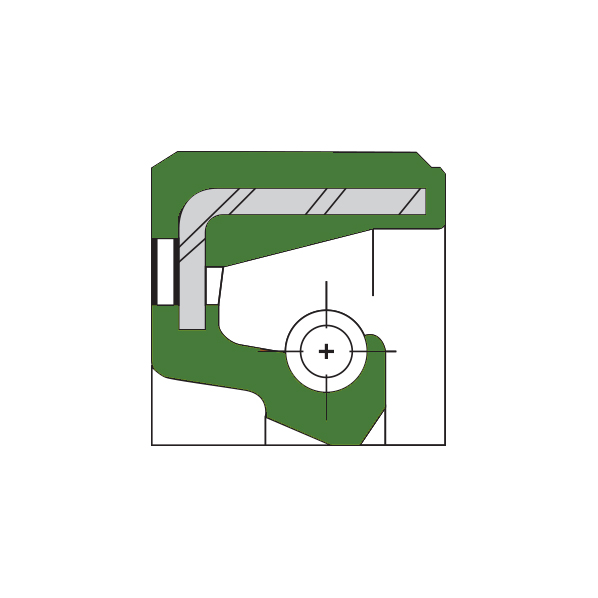

DIMENSION - SC type ACM

Part Number	Internal Diameter (d)	Outside Diameter (D)	Height (H)
AC 0270 E1	10	22	7
AC 0279 A 1	10	25	7
AC 0382 A1	12	25	7
AC 0598 GO	15	30	7
AC 0687 F1	16	30	7
AC 0745 GO	17	30	8
AC 0817 GO	18	30	8
AC 1013 A1	20	35	8
AC 1314 A1	25	40	8
AC 1538 HO	28	10	8
AC 1563 A1	28	48	11
AC 1679 A1	30	45	8
AC 1709 A1	30	50	11
AC 1904 A1	32	52	11
AC 2057 A1	35	50	8
AC 2085 A1	35	55	11
AC 2240 A1	38	58	11
AC 2369 EO	40	58	8
AC 2651 A1	45	62	9
AC 2668 A1	45	68	12
AC 2864 A1	50	72	12
AC 3055 A1	55	78	12
AC 3222 A1	60	82	12
AC 3297 A1	62	85	12
AC 3527 A1	70	95	13
AC 3609 FO	75	95	13
AC 3618 A1	75	95	10
AC 3732 GO	80	100	20
AC 3744 A1	80	105	13
AC 3842 A1	90	115	13
AC 3932 A1	95	120	13
AC 3994 A1	95	130	15
AC4624 F1	150	180	14
AC 5361 E3	240	300	25
AC 5403 ED	250	285	16
AC 5405 EO	250	290	16

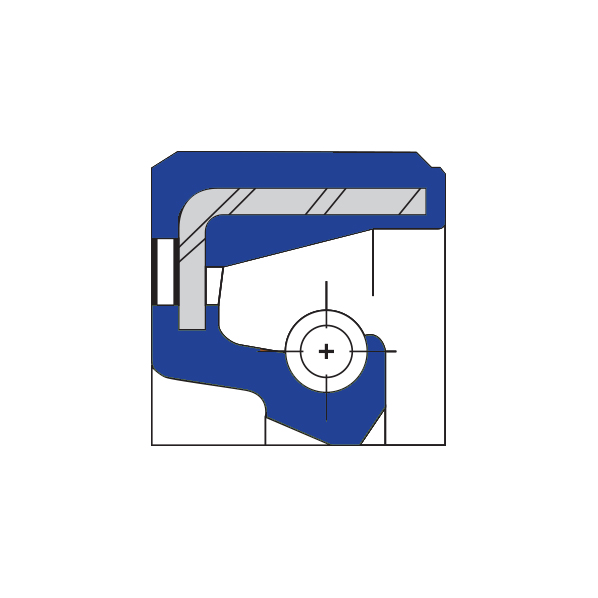

DIMENSION - SC type FKM

Part Number	Internal Diameter (d)	Outside Diameter (D)	Height (H)
AC 0090 E3	7	20	7
AC0158F2	8	22	7
AC 0371 G1	12	22	7
AC 0399 E1	12	32	7
AC 0484 F2	13	30	9
AC 0598 EO	15	30	7
AC 0610 E3	15	35	7
AC 0743 FO	17	30	7
AC 0745 F2	17	30	8
AC 0817 F1	18	30	8
AC 08 75 FO	19	35	8
AC 1013 E1	20	35	8
AC 1030 FO	20	40	8
AC 1033 E4	20	40	11
AC 1147 FO	22	42	10
AC 1314 FO	25	40	8
AC 1338 G 1	25	45	11
AC 1680 E1	30	45	9
AC 1682 F 1	30	45	12
AC 1709 E3	30	50	11
AC 1880 H1	32	45	8
AC 1904 E4	32	52	11
AC 2057 E4	35	50	8
AC 2069 FO	35	52	10
AC 2081 GO	35	55	8
AC 2085 E2	35	55	11
AC 2240 E2	38	58	11
AC 2379 F1	40	60	12
AC 2390 G6	40	62	12
AC 2668 E1	45	68	12
AC 2791 EO	48	70	12
AC 2847 F3	50	68	9
AC 2864 G5	50	72	12
AC 3055 H2	55	78	12
AC 3154 A7	58	80	12
AC 3204 F2	60	78	9
AC 3211 G1	60	80	10
AC 3222 EB	60	82	12
AC 3243 E1	60	90	13
AC 3409 G2	65	90	13
AC 3414 EO	65	95	14
AC 3519 G6	70	92	12
AC 3618 F5	75	100	13
AC 3744 12	80	105	13
AC 3842 F1	85	110	13
AC 3932 E5	90	115	13
AC 3994 A5	95	120	13
AC 4063 HO	100	125	13
AC 4153 E6	105	135	14
AC 4212 F6	110	140	14
AC 4346 EO	120	150	14
AC 4498 F4	135	165	14
AC 4581 G1	145	175	14
AC 4624 G1	150	180	14
AC 4720 E1	160	200	15
AC 4795 E0	170	200	16
AC 4985 E1	190	226	20
AC 5204 E3	220	250	15
AC 5346 F0	240	275	16

DIMENSION - SC type VMQ

Part Number	Internal Diameter (d)	Outside Diameter (D)	Height (H)
AC 0158 A9	8	22	7
AC 0279 A6	10	25	7
AC 0382 A6	12	25	7
AC 0526 E1	14	28	7
AC 0598 A5	15	30	7
AC0610E2	15	35	7
AC 0687 A2	16	30	7
AC 0760 A2	17	35	8
AC 0829 A4	18	35	8
AC 1012 G 1	20	35	7
AC 1013 A2	20	35	8
AC 1017 FO	20	36	7
AC 1314 A2	25	40	8
AC 1338 A2	25	45	11
AC 1474 A2	26	42	8
AC 1518 A2	27	47	11
AC 1679 A5	30	45	8
AC 1709 A2	30	50	11
AC 1724 E1	30	52	12
AC 1904 A4	32	52	11
AC 2057 A7	35	50	8
AC 2240 A2	38	58	11
AC 2369 A9	40	58	8
AC 2388 A2	40	62	11
AC 2390 FO	40	62	12
AC 2507 EO	42	65	12
AC 2651 A2	45	62	9
AC 2791 A2	48	70	12
AC 2847 A2	50	68	9
AC 2864 A2	50	72	12
AC 3040 A7	55	72	9
AC 3055 FO	55	78	12
AC 3211 F1	60	80	10
AC 3222 A2	60	82	12
AC 3297 A4	62	85	12
AC 3400 A2	65	88	12
AC 3409 A2	65	90	13
AC 3519 A2	70	92	12
AC 3618 A4	75	100	13
AC 3744 A2	80	108	13
AC 3842 A2	85	110	13
AC 3932 F1	90	115	13
AC 3994 A2	95	120	13
AC 4063 F1	100	125	13
AC 4282 E2	115	145	14
AC 4624 F2	150	180	14



HYDRAULIC PARTS	UNITED ENGINE PARTS
ENG SOON GROUP, SINCE 1972
