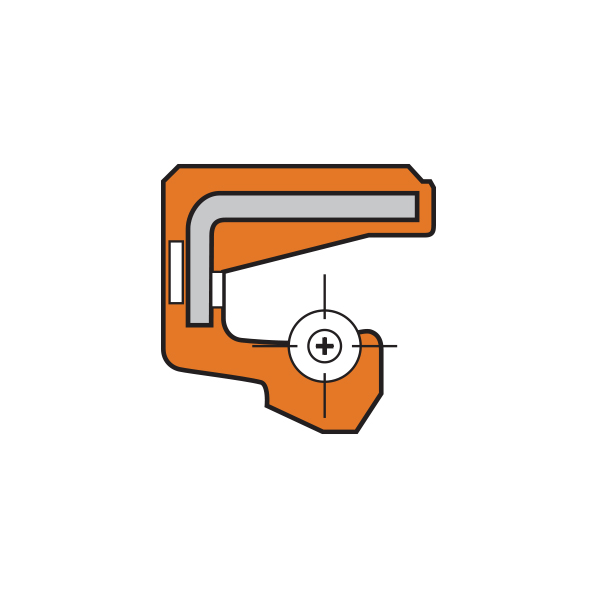

SB

Description

None

Application

None

Materials

Polyacrylate (ACM) + Fluorinated Rubber (FKM) + Nitrile Butadiene Rubber (NBR) + Silicone Rubber: Methyl Vinyl Polysiloxane (VMQ)

, , , , , ,

TECHNICAL DATA

TECHNICAL DATA

Temperature None -30°C/+100°C
Pressure None 30 MPa
Speed None 1.0 m/s
Medias None Mineral hydraulic oils

MATERIALS

ACM

Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.

Chemical resistance Mineral oils (motor oils, gear box oils, ATF oils)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids (Dot 3 & 4)
Aromatic and chlorinated hydrocarbons
Water and steam
Acids, alkalis and amines
Temperature range -25°C to + 150°C (short-term peak at +160°C)
-35°C / +150°C with particular ACMs

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Fuel (including high alcohol content)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids
Ammonia gas
Organic acids with a low molecular weight (formic and acetic acids)
Temperature range -20°C / +200°C (short-term peak at +230°C)
-40°C / +200°C with particular FKMs

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C / +100°C (short-term peak at +120°C)
-40°C / +100°C with particular NBRs

VMQ

This FVMQ-based rubber is very often used in fuel systems.

Chemical resistance Animal and vegetable oils and greases
Water for operation at an average temperature
Diluted saline solutions
Atmospheric and ozone agents
Compatibility issue Superheated steam up to +120°C
Chlorinated hydrocarbons with a low molecular weight (trichlorethylene)
Aromatic hydrocarbons (benzene, toluene)
Temperature range -60­°C / +200°C (short-term peak at +230°C)



DIMENSION - SB type ACM

ItemInternal Diameter (d)Outside Diameter (D1 H8)Height (H)
AB 1147 FO 224210
AB 1337 GO254510
AB 1679 FO30458
AB 2240 FO385811
AB 2369 GO40588
AB 2493 EO42609
AB 2647 FO45619
AB 2668 GO456812
AB 2791 FO487012
AB 2864 HO507212
AB 3055 GO557812
AB 3154 FO588012
AB 3204 GO60789
AB 3222 HO608212
AB 3400 E1658812
AB 3409 HO659013
AB 3459 GO689012
AB 3519 F1 709212
AB 3618 A47510013
AB 3744 A48010513
AB 3761 EO8011515
AB 3932 109011513
AB 3994 JO9512013
AB 4007 FO9513015
AB 4063 FO10012513
AB 4153 GO10513514
AB 4212 FO11014014
AB 4221 GO11014515
AB 4282 A111514514
AB 4346 A512015014
AB 4451 FO13016014
AB 4542 E314017014
AB 4581 A514517214
AB 4624 FO15018014
AB 4713 EO16019016

DIMENSION - SB type FKM

ItemInternal Diameter (d)Outside Diameter (D1 H8)Height (H)
AB 0158 A38227
AB 0279 A310257
AB 0382 AS12257
AB 0598 A415307
AB 0687 A416307
AB 0760 A317358
AB 0829 A318358
AB 0875 A419358
AB 1013 A320358
AB 1033 A3204011
AB 1260 A424408
AB 1314 A325408
AB 1338 A3254511
AB 1563 A3284811
AB 1679 A330458
AB 1709 A3305011
AB 1904 G1355211
AB 2057 A735508
AB 2085 A3355511
AB 2240 A3385811
AB 2369 A340588
AB 2388 A3406211
AB 2507 A6426512
AB 2085 A3355511
AB 2240 A3385811
AB 2369 A340588
AB 2388 A3406211
AB 2507 A6426512
AB 2651 A345629
AB 2668 A5456812
AB 2791 A3487012
AB 2847 A350689
AB 2864 A3507212
AB 2967 A3527512
AB 3040 A355729
AB 3055 A6557812
AB 3152 FO58809
AB 3154 A5588012
AB 3222 A3608212
AB 3297 A3628512
AB 3400 A3658812
AB 3409 G1659013
AB 3459 A3689012
AB 3519 A3709212
AB 3527 A3709513
AB 3562 FO7210012
AB 3618 A37510013
AB 3744 A38010513
AB 3842 A38511013
AB 3932 A59011513
AB 3994 A39512013
AB 4063 E110012513
AB 4153 A310513514
AB 4212 A311014014
AB 4282 A311514514
AB 4346 A312015014
AB 4399 A312515514
AB 4451 A313016014
AB 4498 A313516514
AB 4542 A314017014
AB 4581 A314517514
AB 4624 A315018014
AB 4713 FO 16019016

DIMENSION - SB type NBR

ItemInternal Diameter (d)Outside Diameter (D1 H8)Height (H)
AB 0090 EO 7207
AB 0145 EO8187
AB 0147 FO8189
AB 0158 EO8227
AB 0205 EO9227
AB 0260 EO10207
AB 0267 EO10218
AB 0271 FO 10228
AB 0279 EO10257
AB 0288 EO10307
AB 0308 E211227
AB 031 1 E111257
AB 0371 EO12227
AB 0382 EO12257
AB 0387 EO12287
AB 0393 EO12309
AB 0398 EO12326
AB 0473 E113257
AB 0478 EO13287
AB 0514 EO14246
AB 0519 E114257
AB 0526 EO14287
AB 0584 EO15247
AB 0588 FO15257
AB 0592 EO15287
AB 0598 EO15307
AB 0603 EO15327
AB 0604 EO15329
AB 0610 EO15357
AB 0678 EO16267
AB 0685 EO16287
AB 0687 EO16307
AB 0698 EO16359
AB 0736 FO17287
AB 0742 GO17306
AB 0745 GO17308
AB 0751 EO17328
AB 0759 EO17357
AB 0768 EO17387
AB 0771 E117408
AB0816EO18307
AB0817EO18308
AB 0829 EO18358
AB 0831 EO18359
AB 0864 EO19308
AB 0880 EO19387
AB 0881 EO193810
AB 0883 EO194010
AB 0984 HO20307
AB 0987 EO20309
AB 0997 EO20328
AB 1012 EO20357
AB 1013 EO20358
AB 1017 FO20367
AB1019EO203610
AB 1029 EO20407
AB 1030 E320408
AB 1032 EO204010
AB 1033 FO204011
AB 1038 EO204210
AB 1045 EO204512
AB 1084 EO 21357
AB 1116 EO22327
AB 1126 EO22357
AB 1127 EO22358
AB 1130 EO223610
AB 1133 EO22388
AB 1138 E122408
AB 1140 EO224010
AB 1145 EO22427
AB 1148 EO224211
AB 1223 EO23427
AB 1224 EO234211
AB 1252 EO243810
AB 1255 EO24407
AB 1260 EO24408
AB 1265 EO24457
AB 1302 FO25378
AB 1306 EO25387
AB 1307 EO25388
AB 1314 FO25408
AB 1315 EO254010
AB 1322 EO25428
AB 1335 FO25458
AB 1337 FO254510
AB 1338 EO254511
AB 1348 EO25476
AB 1352 EO254710
AB 1361 EO25509
AB 1363 EO255012
AB 1377 EO255210
AB 1379 EO255212
AB 1459 EO26368
AB 1464 EO26388
AB 1468 EO26408
AB 1474 FO26428
AB 1508 EO27408
AB 1512 EO27439
AB 1518 EO274711
AB 1531 EO28387
AB 1532 E128378
AB 1538 EO28408
AB 1544 EO28428
AB 1546 G1284411
AB 1550 EO28458
AB 1563 EO284811
AB 1651 FO30397
AB 1656 EO30407
AB 1666 EO30428
AB 1673 EO30449
AB 1679 GO 30458
AB 1680 EO30459
AB 1682 EO304512
AB 1689 EO30469
AB 1692 FO30478
AB 1693 EO304710
AB 1695 EO304712
AB 1700 EO30488
AB 1702 EO304811
AB 1704 FO30507
AB 1705 FO30508
AB 1706 EO30509
AB 1708 EO305010
AB 1709 GO305011
AB 1721 EO305210
AB 1736 EO305512
AB 1869 EO3243100
AB 1871 EO32449
AB 1880 EO32458
AB 1884 EO32468
AB 1888 FO32478
AB 1894 EO32488
AB 1902 EO32528
AB 1904 EO325211
AB 1933 EO33507
AB1937EO33527
AB 1968 EO34488
AB 1978 EO345411
AB 2041 FO35477
AB 2048 EO35488
AB 2056 EO35507
AB 2057 GO35508
AB 2059 EO 355010
AB 2066 EO35527
AB 2069 EO355210
AB 2072 FO355212
AB 2081 EO35558
AB 2083 FO35559
AB 2085 FO355511
AB 2099 E135589
AB 2107 FO356012
AB 2118 EO356210
AB 2162 EO36507
AB 2164 EO365010
AB 7101 EO384710
AB 2218 E138508
AB 2230 EO38558
AB 2231 EO38559
AB 2238 EO38587
AB 2239 E238588
AB 2240 GO385811
AB 2250 EO386211
AB 2343 E340528
AB 2361 GO40559
AB 2369 FO40588
AB 2375 EO40608
AB 2377 EO406010
AB 2379 FO406012
AB 2385 EO40627
AB 2386 EO40628
AB 2388 FO406211
AB 2390 HO406212
AB 2402 EO406510
AB 2403 EO406512
AB 2483 EO42559
AB 2493 FO42609
AB 2495 EO426012
AB 2504 EO42659
AB 2507 EO426512
BB 2041 EO435210
AB 2551 EO44567
AB 2641 EO45607
AB 2643 FO45609
AB 2647 GO45619
AB 2651 FO45629
AB 2652 EO456210
AB 2653 EO456212
AB 2658 EO456510
AB 2666 FO45689
AB 2668 FO456812
AB 2677 EO457014
AB 2685 EO457212
AB 2735 EO477012
AB 2775 EO48629
AB 2780 GO48659
AB 2788 EO48709
AB 2791 EO487012
AB 2834 EO506410
AB 2838 EO50659
AB 2847 GO50689
AB 2854 GO507010
AB 2857 EO507012
AB 2861 EO50729
AB 2862 EO507210
AB 2864 GO507212
AB 2872 EO507412
AB 2886 EO508010
AB 2887 FO508012
AB 2888 EO508014
AB 8924 E151627
AB 2959 FO52709
AB 2965 EO52759
AB 2967 EO527512
AB 3014 E1547212
AB 3036 FO55709
AB 3040 GO55729
AB 3053 EO55789
AB 3055 JO557812
AB 3062 EO558012
AB 3072 FO558514
AB 3094 EO567812
AB 3148 EO58759
AB 3152 GO58809
AB 3154 EO588012
AB 3193 FO60759
AB 3195 FO607510
AB 3204 FO60789
AB 3211 EO608010
AB 3213 EO608012
AB 3220 EO60829
AB 3222 GO608212
AB 3234 EO608512
AB 3244 EO609014
AB 3290 FO62809
AB 3297 EO628512
AB 3316 EO63809
AB 3320 EO63859
AB 3321 E1638512
AB 3389 EO658210
AB 3395 EO658512
AB 3400 FO658812
AB 3406 EO659010
AB 3409 FO659013
AB 3414 EO659512
AB 3459 FO689012
AB 3463 EO689513
AB 3505 EO708812
AB 3512 EO709010
AB 3513 EO709012
AB 3519 GO709212
AB 3527 GO709513
AB 3530 EO7010010
AB 3532 GO7010014
AB 3549 EO719513
AB 3562 GO7210012
AB 3618 HO7510013
AB 3628 EO7510512
AB 3631 EO7510515
AB 3732 EO8010010
AB 3734 EO8010013
AB 3744 HO8010513
AB 3761 FO8210513
AB 3786 EO8510515
AB 3837 EO 8511013
AB 3842 HO8512015
AB 3855 EO 8811513
AB 3879 EO9011013
AB 3921 EO9011513
AB 3932 HO9011515
AB 3938 EO9012013
AB 3944 EO9012515
AB 3948 EO9013013
AB 3984 EO9511513
AB 3994 FO9512013
AB 4000 EO9512514
AB 4007 EO9513015
AB 4033 EO9812015
AB 4055 EO10012012
AB 4056 EO10012013
AB 4063 AO10012513
AB 4065 EO10012515
AB 4073 E110013013
AB 4074 EO10013015
AB 4146 EO10512515
AB 4150 EO10513013
AB 4153 EO 10513514
AB 4161 EO10514015
AB 4212 EO11014014
AB 4213 EO11014015
AB 4220 EO11014514
AB 4221 EO11014515
AB 4237 FO11214514
AB 4282 AO11514514
AB 4292 EO11515016
AB 4330 E112014013
AB 4346 AO 12015014
AB 4355 EO12015516
AB 4399 AO12515514
AB 4404 EO12516016
AB 4433 EO12815318
AB 4451 AO 13016014
AB 4452 EO13016015
AB 4453 EO13016016
AB 4464 EO13017015
AB 4465 EO13017016
AB 4498 EO 13516514
AB 4503 EO13517015
AB 4542 AO14017014
AB 4558 EO14018516
AB 4581 AO14517814
AB 4588 EO14519016
AB 4624 AO15018014
AB 4635 EO15019520
AB 4666 EO15518015
AB 4669 EO15518515
AB 4678 E115520020
AB 4711 EO16019014
AB 4712 EO16019015
AB 4713 AO 16019016
AB 4719 EO16020014
AB 4721 EO16020020
AB 4724 EO16021020
AB 4753 EO16522020
AB 4795 AO17020016
AB 4815 EO17022520
AB 4855 EO17523020
AB 4898 AO 18021016
AB 4904 EO18021516
AB 4908 EO18022015
AB 4913 EO18022020
AB 4915 E218022520
AB 4974 FO18023520
AB 4975 EO19022015
AB 4983 EO19022516
AB 4993 EO19024522
AB 5053 P220023015
AB 5054 GO20023016
AB 5056 EO20023018
AB 5060 E620023516
AB 5065 EO20024016
AB 5068 AO20024020
AB 5079 EO20025522
AB5113EO20526023
AB5133EO21024015
AB 5138 EO21025016
AB5139EO21025018
AB 5140 AO21025020
AB 5146 EO21026523
AB 5204 EO22025015
AB 5207 EO22025516
AB 5216 AO22026022
AB 5224 EO22027523
AB 5283 AO23026020
AB 5296 EO23028523
AB 5351 AO24028019
AB 5398 E725028015
AB 5412 AO25031025
AB 5471 AO26032025
AB 5523 AO27033025
AB 5560 EO28032018
AB 5572 AO28034028
AB 5586 EO29033018
AB 5597 AO29035025
AB 5631 EO30034522
AB 5640 AO30036025

DIMENSION - SB type VMQ

ItemInternal Diameter (d)Outside Diameter (D1 H8)Height (H)
AB 1133 FO22388
AB 1314 HO25408
AB 1338 G2254511
AB 1679 E130458
AB 1705 EO30508
AB 2056 I 035507
AB 2083 EO35559
AB 2085 HO355511
AB 2230 FO38558
AB 2390 G2406212
AB 2507 H1426512
AB 2647 EO 45619
AB 2651 HO 45629
AB 2668 K3456812
AB 2791 F1487012
AB 2847 F250689
AB 2854 EO507010
AB 3040 FO55729
AB3152EO58809
AB 3204 E360789
AB 3222 13608212
AB 3244 F1609014
AB 3400 EO658812
AB 3409 EO659013
AB 3463 F1689513
AB 3519 F2709212
AB 3527 F2709513
AB 3532 EO7010014
AB 3562 EO7210012
AB 3618 A77510013
AB 3744 F28010513
AB 3932 GB9011513
AB 3944 FO9012515
AB 3994 G29012013
AB 4063 EO10012513
AB 4153 F310513514
AB 4212 GO11014014
AB 4221 FO11014515
AB 4282 E111514514
AB 4346 A212015014
AB 4399 EO12515514
AB 4451 EO13016014
AB 4498 F113516514
AB 4542 E114017014
AB 4581 A214517514
AB 4624 EO15018014
AB 4713 H216019016
AB 4898 E218021016
