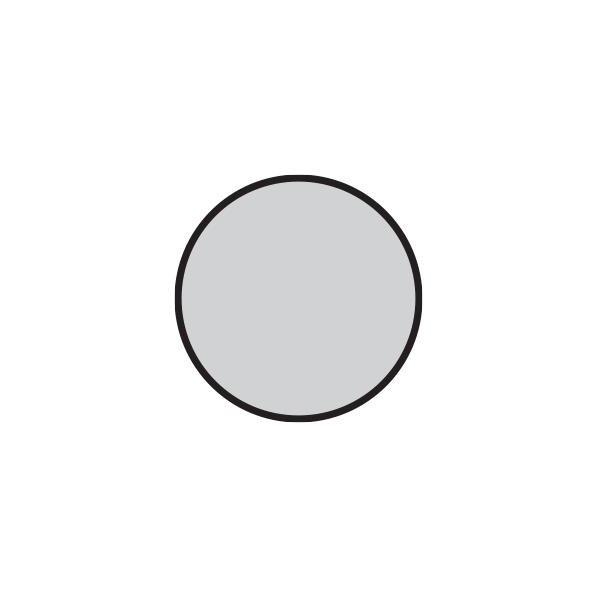

SILICON O-RING

Description

VMQ (Silicones) are a group of elastomeric materials made from silicone, oxygen, hydrogen, and carbon. Extreme temperature range and low temperature flexibility are characteristics of silicone compounds. As a group, silicones have poor tensile strength, tear resistance, and abrasion resistance. Special compounds have been developed with exceptional heat and compression set resistance. High strength compounds have also been made, but their strength does not compare to conventional rubber.

Application

General purpose
Food contact
Pharmaceutical

Materials

None

Categories:O-RING, O-RING, O-RING, O-RING, O-RING, O-RING, O-RING/X-RING

TECHNICAL DATA

Temperature	-50°C to + 232°C
Pressure	None 50 MPa
Speed	None 0.5 m/s
Medias	None Mineral hydraulic oils

MATERIALS

NONE

Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.

Chemical resistance	Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C
Compatibility issue	Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids
Temperature range	-30°C/+90°C -30°C / +110°C with our PUHT (short term peak at 150°C)

NONE

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance	Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max)
Compatibility issue	Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents
Temperature range	-25°C/+100°C

DIMENSION

Item	Internal Diameter (d)	Outside Diameter (D)	Height (H)
ORING-1.02	1.02	0.74	2.78
ORING-1.27	1.27	1.07	3.61
ORING-1.52	1.52	1.42	4.46
ORING-1.78	1.78	1.78	5.34
ORING-1.78	1.78	2.57	6.13
ORING-1.78	1.78	2.9	6.46
ORING-1.78	1.78	3.68	7.24
ORING-1.78	1.78	4.47	8.03
ORING-1.78	1.78	5.28	8.84
ORING-1.78	1.78	6.07	9.63
ORING-1.78	1.78	7.65	11.21
ORING-1.78	1.78	9.25	12.81
ORING-1.78	1.78	10.82	14.38
ORING-1.78	1.78	12.42	15.98
ORING-1.78	1.78	14	17.56
ORING-1.78	1.78	15.6	19.16
ORING-1.78	1.78	17.17	20.73
ORING-1.78	1.78	18.77	22.33
ORING-1.78	1.78	20.35	23.91
ORING-1.78	1.78	21.95	25.51
ORING-1.78	1.78	23.52	27.08
ORING-1.78	1.78	25.12	28.68
ORING-1.78	1.78	26.7	30.26
ORING-1.78	1.78	28.3	31.86
ORING-1.78	1.78	29.87	33.43
ORING-1.78	1.78	31.47	35.03
ORING-1.78	1.78	33.05	36.61
ORING-1.78	1.78	34.65	38.21
ORING-1.78	1.78	37.82	41.38
ORING-1.78	1.78	41	44.56
ORING-1.78	1.78	44.17	47.73
ORING-1.78	1.78	47.35	50.91
ORING-1.78	1.78	50.52	54.08
ORING-1.78	1.78	53.7	57.26
ORING-1.78	1.78	56.87	60.43
ORING-1.78	1.78	60.05	63.61
ORING-1.78	1.78	63.22	66.78
ORING-1.78	1.78	66.4	69.96
ORING-1.78	1.78	69.57	73.13
ORING-1.78	1.78	72.75	76.31
ORING-1.78	1.78	75.92	79.48
ORING-1.78	1.78	82.27	85.83
ORING-1.78	1.78	88.62	92.18
ORING-1.78	1.78	94.97	98.53
ORING-1.78	1.78	101.32	104.88
ORING-1.78	1.78	107.67	111.23
ORING-1.78	1.78	114.02	117.58
ORING-1.78	1.78	120.37	123.93
ORING-1.78	1.78	126.72	130.28
ORING-1.78	1.78	133.07	136.63
ORING-2.62	2.62	1.24	6.48
ORING-2.62	2.62	2.06	7.3
ORING-2.62	2.62	2.84	8.08
ORING-2.62	2.62	3.63	8.87
ORING-2.62	2.62	4.42	9.66
ORING-2.62	2.62	5.23	10.47
ORING-2.62	2.62	6.02	11.26
ORING-2.62	2.62	7.59	12.83
ORING-2.62	2.62	9.19	14.43
ORING-2.62	2.62	10.77	16.01
ORING-2.62	2.62	12.37	17.61
ORING-2.62	2.62	13.94	19.18
ORING-2.62	2.62	15.54	20.78
ORING-2.62	2.62	17.12	22.36
ORING-2.62	2.62	18.72	23.96
ORING-2.62	2.62	20.29	25.54
ORING-2.62	2.62	21.89	27.13
ORING-2.62	2.62	23.47	28.71
ORING-2.62	2.62	25.07	30.31
ORING-2.62	2.62	26.64	31.88
ORING-2.62	2.62	28.24	33.48
ORING-2.62	2.62	29.82	35.06
ORING-2.62	2.62	31.42	36.66
ORING-2.62	2.62	32.99	38.23
ORING-2.62	2.62	34.59	39.83
ORING-2.62	2.62	36.17	41.41
ORING-2.62	2.62	37.77	43.01
ORING-2.62	2.62	39.34	44.58
ORING-2.62	2.62	40.94	46.18
ORING-2.62	2.62	42.52	47.76
ORING-2.62	2.62	44.12	49.36
ORING-2.62	2.62	45.69	50.93
ORING-2.62	2.62	47.29	52.54
ORING-2.62	2.62	48.9	54.14
ORING-2.62	2.62	50.47	55.71
ORING-2.62	2.62	52.07	57.31
ORING-2.62	2.62	53.64	58.88
ORING-2.62	2.62	55.25	60.49
ORING-2.62	2.62	56.82	62.06
ORING-2.62	2.62	58.42	63.66
ORING-2.62	2.62	59.99	65.23
ORING-2.62	2.62	61.6	66.84
ORING-2.62	2.62	63.17	68.41
ORING-2.62	2.62	64.77	70.01
ORING-2.62	2.62	66.34	71.58
ORING-2.62	2.62	67.95	73.19
ORING-2.62	2.62	69.52	74.76
ORING-2.62	2.62	71.12	76.36
ORING-2.62	2.62	72.69	77.93
ORING-2.62	2.62	75.87	81.11
ORING-2.62	2.62	82.22	87.46
ORING-2.62	2.62	88.57	93.81
ORING-2.62	2.62	94.92	100.16
ORING-2.62	2.62	101.27	106.51
ORING-2.62	2.62	107.62	112.86
ORING-2.62	2.62	113.97	119.21
ORING-2.62	2.62	120.32	125.56
ORING-2.62	2.62	126.67	131.91
ORING-2.62	2.62	133.02	138.26
ORING-2.62	2.62	139.37	144.61
ORING-2.62	2.62	145.72	150.96
ORING-2.62	2.62	152.07	157.31
ORING-2.62	2.62	158.42	163.66
ORING-2.62	2.62	164.77	170.01
ORING-2.62	2.62	171.12	176.36
ORING-2.62	2.62	177.47	182.71
ORING-2.62	2.62	183.82	189.06
ORING-2.62	2.62	190.17	195.41
ORING-2.62	2.62	196.52	201.76
ORING-2.62	2.62	202.87	208.11
ORING-2.62	2.62	209.22	214.46
ORING-2.62	2.62	215.57	220.81
ORING-2.62	2.62	221.92	227.16
ORING-2.62	2.62	228.27	233.51
ORING-2.62	2.62	234.62	239.86
ORING-2.62	2.62	240.97	246.21
ORING-2.62	2.62	247.32	252.56
ORING-3.53	3.53	4.34	11.4
ORING-3.53	3.53	5.94	13
ORING-3.53	3.53	7.52	14.58
ORING-3.53	3.53	9.12	16.18
ORING-3.53	3.53	10.69	17.75
ORING-3.53	3.53	12.29	19.35
ORING-3.53	3.53	13.87	20.93
ORING-3.53	3.53	15.47	22.53
ORING-3.53	3.53	17.04	24.1
ORING-3.53	3.53	18.64	25.7
ORING-3.53	3.53	20.22	27.28
ORING-3.53	3.53	21.82	28.88
ORING-3.53	3.53	23.39	30.45
ORING-3.53	3.53	24.99	32.06
ORING-3.53	3.53	26.57	33.63
ORING-3.53	3.53	28.17	35.23
ORING-3.53	3.53	29.74	36.8
ORING-3.53	3.53	31.34	38.4
ORING-3.53	3.53	32.92	39.98
ORING-3.53	3.53	34.52	41.58
ORING-3.53	3.53	36.09	43.15
ORING-3.53	3.53	37.69	44.75
ORING-3.53	3.53	40.87	47.93
ORING-3.53	3.53	44.04	51.1
ORING-3.53	3.53	47.22	54.28
ORING-3.53	3.53	50.39	57.45
ORING-3.53	3.53	53.57	60.63
ORING-3.53	3.53	56.74	63.8
ORING-3.53	3.53	59.92	66.98
ORING-3.53	3.53	63.09	70.15
ORING-3.53	3.53	66.27	73.33
ORING-3.53	3.53	69.44	76.5
ORING-3.53	3.53	72.62	79.68
ORING-3.53	3.53	75.79	82.85
ORING-3.53	3.53	78.97	86.03
ORING-3.53	3.53	82.14	89.2
ORING-3.53	3.53	85.32	92.38
ORING-3.53	3.53	88.49	95.55
ORING-3.53	3.53	91.67	98.73
ORING-3.53	3.53	94.84	101.9
ORING-3.53	3.53	98.02	105.08
ORING-3.53	3.53	101.19	108.25
ORING-3.53	3.53	104.37	111.43
ORING-3.53	3.53	107.54	114.6
ORING-3.53	3.53	110.72	117.78
ORING-3.53	3.53	113.89	120.95
ORING-3.53	3.53	117.07	124.13
ORING-3.53	3.53	120.24	127.3
ORING-3.53	3.53	123.42	130.48
ORING-3.53	3.53	126.59	133.65
ORING-3.53	3.53	129.77	136.83
ORING-3.53	3.53	132.94	140
ORING-3.53	3.53	136.12	143.18
ORING-3.53	3.53	139.29	146.35
ORING-3.53	3.53	142.47	149.53
ORING-3.53	3.53	145.64	152.71
ORING-3.53	3.53	148.82	155.88
ORING-3.53	3.53	151.99	159.05
ORING-3.53	3.53	158.34	165.4
ORING-3.53	3.53	164.69	171.75
ORING-3.53	3.53	171.04	178.1
ORING-3.53	3.53	177.39	184.45
ORING-3.53	3.53	183.74	190.8
ORING-3.53	3.53	190.09	197.15
ORING-3.53	3.53	196.44	203.5
ORING-3.53	3.53	202.79	209.85
ORING-3.53	3.53	209.14	216.2
ORING-3.53	3.53	215.49	222.55
ORING-3.53	3.53	221.84	228.9
ORING-3.53	3.53	228.19	235.25
ORING-3.53	3.53	234.54	241.6
ORING-3.53	3.53	240.89	247.95
ORING-3.53	3.53	247.24	254.3
ORING-3.53	3.53	253.59	260.65
ORING-3.53	3.53	266.29	273.35
ORING-3.53	3.53	278.99	286.05
ORING-3.53	3.53	291.69	298.75
ORING-3.53	3.53	304.39	311.45
ORING-3.53	3.53	329.79	336.85
ORING-3.53	3.53	355.19	362.25
ORING-3.53	3.53	380.59	387.65
ORING-3.53	3.53	405.26	412.32
ORING-3.53	3.53	430.66	437.72
ORING-3.53	3.53	456.06	463.12
ORING-5.33	5.33	10.46	21.12
ORING-5.33	5.33	12.07	22.73
ORING-5.33	5.33	13.64	24.3
ORING-5.33	5.33	15.24	25.9
ORING-5.33	5.33	16.81	27.47
ORING-5.33	5.33	18.42	29.08
ORING-5.33	5.33	19.99	30.65
ORING-5.33	5.33	21.59	32.25
ORING-5.33	5.33	23.16	33.82
ORING-5.33	5.33	24.77	35.43
ORING-5.33	5.33	26.34	37
ORING-5.33	5.33	27.94	38.6
ORING-5.33	5.33	29.51	40.17
ORING-5.33	5.33	31.12	41.78
ORING-5.33	5.33	32.69	43.35
ORING-5.33	5.33	34.29	44.95
ORING-5.33	5.33	37.47	48.13
ORING-5.33	5.33	40.64	51.3
ORING-5.33	5.33	43.82	54.48
ORING-5.33	5.33	46.99	57.65
ORING-5.33	5.33	50.17	60.83
ORING-5.33	5.33	53.34	64
ORING-5.33	5.33	56.52	67.18
ORING-5.33	5.33	59.69	70.35
ORING-5.33	5.33	62.87	73.53
ORING-5.33	5.33	66.04	76.7
ORING-5.33	5.33	69.22	79.88
ORING-5.33	5.33	72.39	83.05
ORING-5.33	5.33	75.57	86.23
ORING-5.33	5.33	78.74	89.4
ORING-5.33	5.33	81.92	102.58
ORING-5.33	5.33	85.09	95.75
ORING-5.33	5.33	88.27	98.93
ORING-5.33	5.33	91.44	102.1
ORING-5.33	5.33	94.62	105.28
ORING-5.33	5.33	97.79	108.45
ORING-5.33	5.33	100.97	111.63
ORING-5.33	5.33	104.14	114.8
ORING-5.33	5.33	107.32	117.98
ORING-5.33	5.33	110.49	121.15
ORING-5.33	5.33	113.67	124.33
ORING-5.33	5.33	116.84	127.5
ORING-5.33	5.33	120.02	130.68
ORING-5.33	5.33	123.19	133.85
ORING-5.33	5.33	126.37	137.03
ORING-5.33	5.33	129.54	140.2
ORING-5.33	5.33	132.72	143.38
ORING-5.33	5.33	135.89	146.55
ORING-5.33	5.33	139.07	149.73
ORING-5.33	5.33	142.24	152.9
ORING-5.33	5.33	145.42	156.08
ORING-5.33	5.33	148.59	159.25
ORING-5.33	5.33	151.77	162.43
ORING-5.33	5.33	158.12	168.78
ORING-5.33	5.33	164.47	175.13
ORING-5.33	5.33	170.82	181.48
ORING-5.33	5.33	177.17	187.83
ORING-5.33	5.33	183.52	194.18
ORING-5.33	5.33	189.87	200.53
ORING-5.33	5.33	196.22	206.88
ORING-5.33	5.33	202.57	213.23
ORING-5.33	5.33	208.92	219.58
ORING-5.33	5.33	215.27	225.93
ORING-5.33	5.33	221.62	232.28
ORING-5.33	5.33	227.97	238.63
ORING-5.33	5.33	234.32	244.98
ORING-5.33	5.33	240.67	251.33
ORING-5.33	5.33	247.02	257.68
ORING-5.33	5.33	253.37	264.03
ORING-5.33	5.33	266.07	276.73
ORING-5.33	5.33	278.77	289.43
ORING-5.33	5.33	291.47	302.13
ORING-5.33	5.33	304.17	314.83
ORING-5.33	5.33	329.57	340.23
ORING-5.33	5.33	354.97	365.63
ORING-5.33	5.33	380.37	391.03
ORING-5.33	5.33	405.26	415.92
ORING-5.33	5.33	430.66	441.32
ORING-5.33	5.33	456.06	466.72
ORING-5.33	5.33	481.46	492.07
ORING-5.33	5.33	506.86	517.47
ORING-5.33	5.33	532.26	542.87
ORING-5.33	5.33	557.66	568.27
ORING-5.33	5.33	582.68	593.34
ORING-5.33	5.33	608.08	618.74
ORING-5.33	5.33	633.48	644.14
ORING-5.33	5.33	658.88	669.54
ORING-6.99	6.99	34.29	48.26
ORING-6.99	6.99	37.47	51.44
ORING-6.99	6.99	40.64	54.61
ORING-6.99	6.99	43.82	57.79
ORING-6.99	6.99	46.99	60.96
ORING-6.99	6.99	50.17	64.14
ORING-6.99	6.99	53.34	67.31
ORING-6.99	6.99	56.52	70.49
ORING-6.99	6.99	59.69	73.66
ORING-6.99	6.99	62.87	76.84
ORING-6.99	6.99	66.04	80.01
ORING-6.99	6.99	69.22	83.19
ORING-6.99	6.99	72.39	86.36
ORING-6.99	6.99	75.57	89.54
ORING-6.99	6.99	78.74	92.71
ORING-6.99	6.99	81.92	95.89
ORING-6.99	6.99	85.09	99.06
ORING-6.99	6.99	88.27	102.24
ORING-6.99	6.99	91.44	105.41
ORING-6.99	6.99	94.62	108.59
ORING-6.99	6.99	97.79	111.76
ORING-6.99	6.99	100.97	114.94
ORING-6.99	6.99	104.14	118.11
ORING-6.99	6.99	107.32	121.29
ORING-6.99	6.99	110.49	124.46
ORING-6.99	6.99	113.67	127.65
ORING-6.99	6.99	116.84	130.82
ORING-6.99	6.99	120.02	134
ORING-6.99	6.99	123.19	137.17
ORING-6.99	6.99	126.37	140.35
ORING-6.99	6.99	129.54	143.52
ORING-6.99	6.99	132.72	146.7
ORING-6.99	6.99	135.89	149.87
ORING-6.99	6.99	139.07	153.05
ORING-6.99	6.99	142.24	156.22
ORING-6.99	6.99	145.42	159.4
ORING-6.99	6.99	148.59	162.57
ORING-6.99	6.99	151.77	165.75
ORING-6.99	6.99	158.12	172.1
ORING-6.99	6.99	164.47	178.45
ORING-6.99	6.99	170.82	184.8
ORING-6.99	6.99	177.17	191.15
ORING-6.99	6.99	183.52	197.5
ORING-6.99	6.99	189.87	203.85
ORING-6.99	6.99	196.22	210.2
ORING-6.99	6.99	202.57	216.55
ORING-6.99	6.99	215.27	229.25
ORING-6.99	6.99	227.97	241.95
ORING-6.99	6.99	240.67	254.65
ORING-6.99	6.99	253.37	267.35
ORING-6.99	6.99	266.07	280.05
ORING-6.99	6.99	278.77	292.75
ORING-6.99	6.99	291.47	305.45
ORING-6.99	6.99	304.17	318.15
ORING-6.99	6.99	316.87	330.85
ORING-6.99	6.99	329.57	343.55
ORING-6.99	6.99	342.27	356.25
ORING-6.99	6.99	354.97	368.95
ORING-6.99	6.99	367.67	381.65
ORING-6.99	6.99	380.37	394.35
ORING-6.99	6.99	393.07	407.05
ORING-6.99	6.99	405.26	419.24
ORING-6.99	6.99	417.96	431.94
ORING-6.99	6.99	430.66	444.64
ORING-6.99	6.99	443.36	457.34
ORING-6.99	6.99	456.06	470.04
ORING-6.99	6.99	468.76	482.74
ORING-6.99	6.99	481.46	495.44
ORING-6.99	6.99	494.16	508.14
ORING-6.99	6.99	506.86	520.84
ORING-6.99	6.99	532.26	546.24
ORING-6.99	6.99	557.66	571.64
ORING-6.99	6.99	582.68	596.66
ORING-6.99	6.99	608.08	622.06
ORING-6.99	6.99	633.48	647.46
ORING-6.99	6.99	658.88	672.86
ORING-1.42	1.42	4.7	7.54
ORING-1.63	1.63	6.07	9.33
ORING-1.63	1.63	7.65	10.91
ORING-1.83	1.83	8.92	12.58
ORING-1.83	1.83	10.52	14.18
ORING-1.98	1.98	11.89	15.85
ORING-2.08	2.08	13.46	17.62
ORING-2.21	2.21	16.36	20.78
ORING-2.46	2.46	17.93	22.85
ORING-2.46	2.46	19.18	24.1
ORING-2.95	2.95	21.92	27.82
ORING-2.95	2.95	23.47	29.37
ORING-2.95	2.95	25.04	30.94
ORING-2.95	2.95	26.59	32.49
ORING-2.95	2.95	29.74	35.64
ORING-2.95	2.95	34.42	40.32
ORING-3.00	3	37.47	43.47
ORING-3.00	3	43.69	49.69
ORING-3.00	3	53.09	59.09
ORING-3.00	3	59.36	65.36



HYDRAULIC PARTS	UNITED ENGINE PARTS
ENG SOON GROUP, SINCE 1972
