UPH / USH

Description

None

* None

Application

None

Materials

Fluorinated Rubber (FKM) + Nitrile Rubber (NBR)

Categories:ROD & PISTON SEAL, ROD & PISTON SEAL, ROD & PISTON SEAL, ROD & PISTON SEAL, ROD & PISTON SEAL, ROD & PISTON SEAL

TECHNICAL DATA

Temperature	None -35°C/+90°C
Pressure	None 50 MPa
Speed	None 0.5 m/s
Medias	None Mineral hydraulic oils

MATERIALS

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance	Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils. Fire-resistant liquids (HFD) Silicone oils and greases. Mineral and vegetable oils and greases. Aliphatic hydrocarbons (propane, butane, petroleum) Aromatic hydrocarbons (benzene, toluene) Chlorinated hydrocarbons (trichlorethylene) Fuel (including high alcohol content) Atmospheric and ozone agents
Compatibility issue	Glycol-based brake fluids. Ammonia gas. Organic acids with a low molecular weight (formic and acetic acids)
Temperature range	-20°C / +200°C (short-term peak at +230°C) -40°C / +200°C with particular FKMs

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance	Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max)
Compatibility issue	Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents
Temperature range	-25°C/+100°C

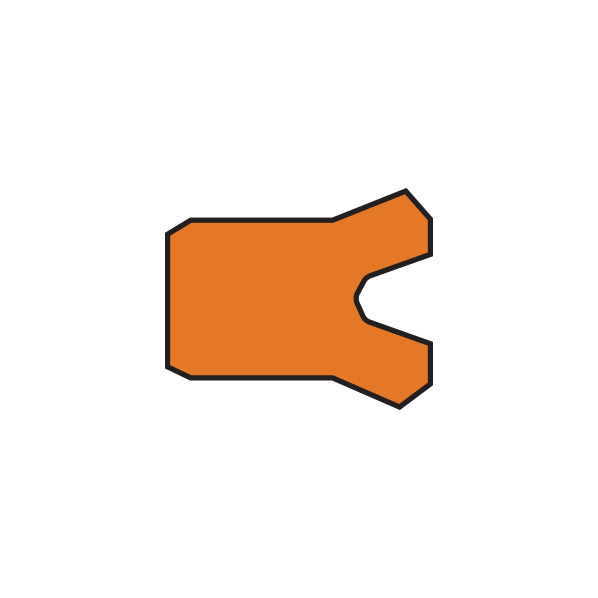

DIMENSION - UPH

Item	Internal Diameter (d)	Outside Diameter (D)	Height (H)	Height (HA)	Height (HB)	Outside Diameter (D1)	C
UPH-6.3	6.3	16.3	7.5	8.5	10.5	15.3	2.5
UPH-6.3A	6.3	16.3	8	9	11	15.3	2.5
UPH-7.1	7.1	17.1	7.5	8.5	10.5	16.1	2.5
UPH-7.1A	7.1	17.1	8	9	11	16.1	2.5
UPH-8	8	18	7.5	8.5	10.5	17	2.5
UPH-8A	8	18	8	9	11	17	2.5
UPH-9	9	19	7.5	8.5	10.5	18	2.5
UPH-9A	9	19	8	9	11	18	2.5
UPH-10	10	20	7.5	8.5	10.5	19	2.5
UPH-10A	10	20	8	9	11	19	2.5
UPH-11.2	11.2	21.2	7.5	8.5	10.5	20.2	2.5
UPH-11.2A	11.2	21.2	8	9	11	20.2	2.5
UPH-12	12	25	8	9	11	24	2.5
UPH-12.5	12.5	22.5	7.5	8.5	10.5	21.5	2.5
UPH-12.5A	12.5	22.5	8	9	11	21.5	2.5
UPH-14	14	24	7.5	8.5	10.5	23	2.5
UPH-14A	14	24	8	9	11	23	2.5
UPH-15A	15	25	8	9	11	24	2.5
UPH-15	15	28	10	11	13	27	2.5
UPH-16	16	26	7.5	8.5	10.5	25	2.5
UPH-16A	16	26	8	9	11	25	2.5
UPH-16B	16	32	10	11	13	31	2.5
UPH-18A	18	28	8	9	11	27	2.5
UPH-18	18	31	10	11	13	30	3.5
UPH-18B	18	33	10	11	13	32	3.5
UPH-18.5	18.5	31.5	10	11	13	30.5	3.5
UPH-20A	20	30	8	9	11	29	3.5
UPH-20	20	33	10	11	13	32	3.5
UPH-20B	20	35	10	11	13	34	3.5
UPH-21.5	21.5	31.5	8	9	11	30.5	3.5
UPH-22	22	35	10	11	13	34	3.5
UPH-22.4A	22.4	32.4	8	9	11	31.4	3.5
UPH-22.4	22.4	35.4	10	11	13	34.4	3.5
UPH-25A	25	35	8	9	11	34	3.5
UPH-25	25	38	10	11	13	37	3.5
UPH-25B	25	40	10	11	13	39	3.5
UPH-25C	25	45	12	13	15	44	3.5
UPH-25.5	25.5	35.5	8	9	12	34.5	3.5
UPH-27	27	40	10	11	14	39	3.5
UPH-28A	28	40	10	11	14	39	3.5
UPH-28	28	41	10	11	14	40	3.5
UPH-28B	28	43	10	11	14	42	3.5
UPH-30F	30	43	10	11	14	42	3.5
UPH-30A	30	45	10	11	14	44	3.5
UPH-31.5	31.5	44.5	10	11	14	43.5	3.5
UPH-31.5A	31.5	46.5	10	11	14	45.5	3.5
UPH-32	32	45	10	11	14	44	3.5
UPH-32A	32	46	10	11	14	45	3.5
UPH-32B	32	48	10	11	14	47	3.5
UPH-34	34	50	12	13	16	49	3.5
UPH-35B	35	50	10	11	14	49	3.5
UPH-35	35	50	12	13	16	49	3.5
UPH-35A	35	51	12	13	16	50	4
UPH-35.5A	35.5	50.5	10	11	14	49.5	4
UPH-35.5	35.5	51.5	12	13	16	50.5	4
UPH-38	38	52	10	11	14	51	4
UPH-40A	40	55	10	11	14	54	4
UPH-40B	40	56	10	11	14	55	4
UPH-40	40	56	12	13	16	55	4
UPH-40C	40	60	12	13	16	59	4
UPH-41	41	56	10	11	14	55	4
UPH-45A	45	60	10	11	14	59	4
UPH-45B	45	60	12	13	16	59	4
UPH-45	45	61	12	13	16	60	4
UPH-47	47	63	12	13	16	62	4
UPH-48	48	63	10	11	14	62	4
UPH-50A	50	65	10	11	14	64	4
UPH-50	50	66	12	13	16	65	4
UPH-50B	50	70	12	13	16	69	4
UPH-51	51	71	12	13	16	70	4
UPH-53	53	69	12	13	16	68	4
UPH-53A	53	73	12	13	16	72	4
UPH-55	55	71	12	13	16	70	4
UPH-55A	55	75	12	13	16	74	4
UPH-55B	55	80	15	16	19	79	4
UPH-56	56	72	12	13	16	71	4
UPH-56A	56	76	12	13	16	75	4
UPH-60	60	76	12	13	16	75	4
UPH-60A	60	80	12	13	16	79	4
UPH-63	63	79	12	13	16	78	4
UPH-63A	63	83	12	13	16	82	4
UPH-64	64	80	12	13	16	79	4
UPH-65	65	81	12	13	16	80	5
UPH-65A	65	85	12	13	16	84	5
UPH-67A	67	87	12	13	16	86	5
UPH-67	67	87	15	16	19	86	5
UPH-70A	70	90	12	13	16	89	5
UPH-70	70	90	15	16	19	89	5
UPH-71A	71	91	12	13	16	90	5
UPH-71	71	91	15	16	19	90	5
UPH-75A	75	95	12	13	16	94	5
UPH-75	75	95	15	16	19	94	5
UPH-80A	80	100	12	13	16	99	5
UPH-80	80	100	15	16	19	99	5
UPH-85A	85	105	12	13	16	104	5
UPH-85	85	105	15	16	19	104	5
UPH-90A	90	110	12	13	16	109	5
UPH-90	90	110	15	16	19	109	5
UPH-92A	92	112	12	13	16	111	5
UPH-92	92	112	15	16	19	111	5
UPH-95A	95	115	12	13	16	114	5
UPH-95	95	115	15	16	19	114	5
UPH-95B	95	120	15	16	19	118	5
UPH-100A	100	120	12	13	16	118	5
UPH-100	100	120	15	16	19	118	5
UPH-100B	100	125	15	16	19	123	5
UPH-105	105	125	15	16	19	123	5
UPH-106	106	126	15	16	19	124	5
UPH-110	110	130	15	16	19	128	5
UPH-112	112	132	15	16	19	130	5
UPH-115	115	135	15	16	19	133	5
UPH-118	118	138	15	16	19	136	5
UPH-120	120	140	15	16	19	138	5
UPH-125A	125	145	15	16	19	143	6.5
UPH-125	125	150	19	20	23	148	6.5
UPH-130A	130	150	15	16	19	148	6.5
UPH-130	130	155	19	20	23	153	6.5
UPH-132A	132	152	15	16	19	150	6.5
UPH-132	132	157	19	20	23	155	6.5
UPH-135B	135	155	15	16	19	153	6.5
UPH-135A	135	160	15.7	17	20	158	6.5
UPH-13	135	160	19	20	23	158	6.5
UPH-140A	140	160	15	16	19	158	6.5
UPH-140	140	165	19	20	23	163	6.5
UPH-145A	145	165	15	16	19	163	6.5
UPH-145	145	170	19	20	23	168	6.5
UPH-150A	150	170	15	16	19	168	6.5
UPH-150	150	175	19	20	23	173	6.5
UPH-155B	155	180	15	16	20	178	6.5
UPH-155A	155	180	15.7	17	21	178	6.5
UPH-155	155	180	19	20	24	178	6.5
UPH-160A	160	185	15	16	20	183	6.5
UPH-160	160	185	19	20	24	183	6.5
UPH-165A	165	190	15	16	20	188	6.5
UPH-165	165	190	19	20	24	188	6.5
UPH-170A	170	195	15	16	20	193	6.5
UPH-170	170	195	19	20	24	193	6.5
UPH-175B	175	200	15	16	20	198	6.5
UPH-175A	175	200	15.7	17	21	198	6.5
UPH-175	175	200	19	20	24	198	6.5
UPH-180A	180	205	15	16	20	203	6.5
UPH-180	180	205	19	20	24	203	6.5
UPH-185	185	210	15	16	20	208	6.5
UPH-190A	190	215	15	16	20	213	6.5
UPH-190	190	215	19	20	24	213	6.5
UPH-199B	199	224	15	16	20	222	6.5
UPH-199A	199	224	15.7	17	21	222	6.5
UPH-199	199	224	19	20	24	222	6.5
UPH-200A	200	225	15	16	20	223	6.5
UPH-200	200	225	19	20	24	223	6.5
UPH-210	210	235	18	19	23	233	6.5
UPH-212	212	237	19	20	24	235	6.5
UPH-215	215	240	19	20	24	238	6.5
UPH-224	224	249	19	20	24	247	6.5
UPH-225A	225	250	18	19	23	248	6.5
UPH-225	225	250	19	20	24	248	6.5
UPH-236	236	261	19	20	24	259	6.5
UPH-250	250	275	19	20	24	273	6.5
UPH-255	255	280	19	20	24	278	8
UPH-265	265	297	24	26	30	295	8
UPH-270A	270	300	18	19	23	298	8
UPH-270	270	300	24	26	30	298	8
UPH-280A	280	310	22	24	28	298	8
UPH-280	280	312	24	26	30	310	8
UPH-283	283	315	24	26	30	313	8
UPH-290A	290	320	18	19	23	318	8
UPH-290	290	320	22	24	28	318	8
UPH-300	300	332	24	26	30	330	8
UPH-310A	310	340	18	19	23	338	10
UPH-310	310	340	22	24	28	338	10
UPH-315	315	347	24	26	30	345	10
UPH-320A	320	340	12	13	17	338	10
UPH-320	320	350	22	24	28	348	10
UPH-323	323	355	24	26	30	353	10
UPH-330A	330	355	16	17	21	353	10
UPH-330B	330	256	20	22	26	354	10
UPH-330	330	360	22	24	28	358	10
UPH-335A	335	355	14	15	19	353	10
UPH-335	335	367	24	26	30	365	10
UPH-340	340	370	22	24	28	368	10
UPH-345	345	365	14	15	19	363	10
UPH-348	348	380	24	26	30	378	10
UPH-350A	350	370	14	15	19	368	10
UPH-350	350	380	22	24	28	378	10
UPH-355A	355	385	22	24	28	383	10
UPH-355	355	387	24	26	30	385	10
UPH-360	360	390	22	24	28	388	10
UPH-365	365	395	22	24	28	388	10
UPH-368	368	400	24	26	30	398	10
UPH-370A	370	400	23	25	29	398	10
UPH-370	370	400	25	27	31	398	10
UPH-371	371	396	16	17	21	394	10
UPH-375	375	407	24	26	30	405	10
UPH-380A	380	400	15	16	20	398	10
UPH-380B	380	410	15	16	20	408	10
UPH-380	380	420	30	32	36	418	10
UPH-390	390	420	22	24	28	418	10
UPH-395	395	425	22	24	28	423	10
UPH-400A	400	430	22	24	28	428	10
UPH-400B	400	430	25	27	31	428	10
UPH-400	400	432	24	26	30	430	10
UPH-420	420	455	25	27	32	453	10
UPH-425	425	457	24	26	31	455	10
UPH-430	430	470	20	22	27	468	10
UPH-435	435	470	25	27	32	468	10
UPH-440	440	480	35	37	42	478	10
UPH-445	445	470	18	19	24	468	10
UPH-450A	450	480	22	24	29	478	10
UPH-450	450	482	24	26	31	480	10
UPH-460	460	500	20	22	27	498	10
UPH-475	475	507	24	26	31	505	10
UPH-480A	480	505	18	19	24	503	10
UPH-490	490	530	25	27	32	528	10
UPH-520A	520	550	17	18	23	548	10
UPH-525	525	555	15	16	21	553	10
UPH-530A	530	570	20	22	27	568	10
UPH-540	540	560	14	15	20	558	10
UPH-570A	570	600	17	18	23	598	10
UPH-600A	600	630	20	22	27	628	10
UPH-600B	600	630	28	30	35	628	10
UPH-600	600	640	30	32	37	638	10
UPH-640	640	685	25	27	32	683	12
UPH-700A	700	730	15	16	21	728	12
UPH-760	760	800	34	36	41	798	12
UPH-768	768	800	30	32	37	798	12
UPH-818	818	850	24	26	31	848	12
UPH-825A	825	850	15.5	6.5	21.5	848	12
UPH-825	825	860	27	29	34	858	12
UPH-925	925	950	14	15	20	858	12
UPH-950	950	980	20	22	27	978	12
UPH-1020A	1020	1050	18	19	24	1048	12
UPH-1025	1025	1055	15	16	21	1053	12
UPH-1100	1100	1140	20	22	27	1138	12
UPH-1220	1220	1280	30	32	37	1278	12
UPH-1560	1560	1600	20	22	27	1598	12
UPH-1620	1620	1680	30	32	37	1678	12

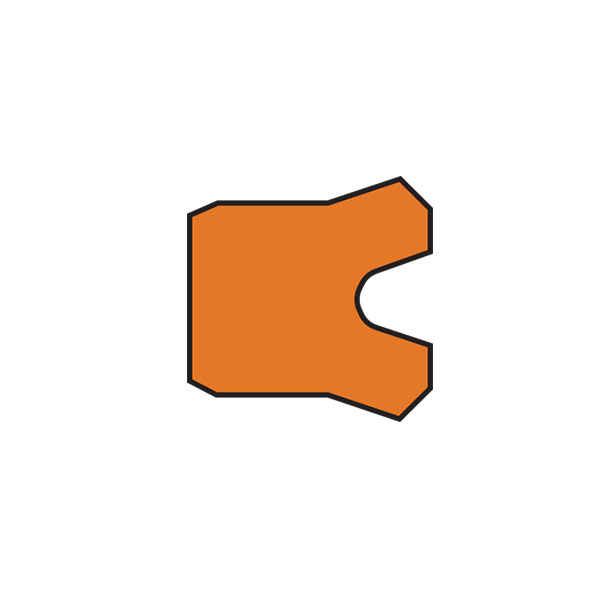

DIMENSION - USH

Item	Internal Diameter (d)	Outside Diameter (D)	Height (H)	Height (HA)	Height (HB)	Outside Diameter (D1)	C
USH-12	12	20	5	5.7	7.7	19	2
USH-14	14	22	5	5.7	7.7	21	2
USH-16	16	24	5	5.7	7.7	23	2
USH-18	18	26	5	5.7	7.7	25	2
USH-20	20	28	5	5.7	7.7	27	2
USH-22	22	30	5	5.7	7.7	29	2
USH-22.4	22.4	30	5	5.7	7.7	29	2
USH-23.5	23.5	31.5	5	5.7	7.7	30.5	2
USH-24	24	32	5	5.7	7.7	31	2
USH-25	25	33	5	5.7	7.7	32	2
USH-27	27	35	5	5.7	8.7	34	2
USH-28	28	35.5	5	5.7	8.7	34.5	2
USH-28A	28	36	5	5.7	8.7	35	2
USH-30	30	40	6	7	10	39	2
USH-31.5	31.5	41.5	6	7	10	40.5	2
USH-32	32	42	6	7	10	41	2
USH-35	35	45	6	7	10	44	2
USH-35.5	35.5	45	6	7	10	44	2
USH-35.5A	35.5	45.5	6	7	10	44.5	2
USH-36	36	46	6	7	10	45	2
USH-40	40	50	6	7	10	49	2
USH-45	45	55	6	7	10	54	2
USH-45A	45	56	7	8	11	55	2.5
USH-50	50	60	6	7	10	59	2.5
USH-53	53	63	6	7	10	62	2.5
USH-55	55	65	6	7	10	64	2.5
USH-56	56	66	6	7	10	65	2.5
USH-58	58	68	6	7	10	67	2.5
USH-60	60	70	6	7	10	69	2.5
USH-60A	60	71	7	8	11	70	2.5
USH-63	63	73	6	7	10	72	2.5
USH-65	65	75	6	7	10	74	2.5
USH-67	67	77	6	7	10	76	2.5
USH-70	70	80	6	7	10	79	2.5
USH-71	71	80	6	7	10	79	2.5
USH-75	75	85	6	7	10	84	2.5
USH-80	80	90	6	7	10	89	2.5
USH-85A	85	95	6	7	10	94	2.5
USH-85	85	100	9	10	13	98	4
USH-90	90	105	9	10	13	103	4
USH-95	95	110	9	10	13	108	4
USH-98	98	112	8.5	9.5	12.5	110	5
USH-100	100	115	9	10	13	113	5
USH-106	106	120	8.5	9.5	12.5	118	5
USH-110	110	125	9	10	13	123	5
USH-112	112	125	8.5	9.5	12.5	123	5
USH-112A	112	125	9	10	13	123	5
USH-115	115	130	8.5	9.5	12.5	128	5
USH-118	118	132	8.5	9.5	12.5	130	5
USH-1 25	125	140	9	10	13	138	5
USH-130	130	145	9	10	13	143	5
USH-1 32	132	145	8.5	9.5	12.5	143	5
USH-136	136	150	8.5	9.5	12.5	148	5
USH-140	140	155	9	10	13	153	5
USH-145	145	160	9	10	13	158	5
USH-1 50	150	165	9	10	13	163	5
USH-155	155	170	9	10	14	168	5
USH-160	160	175	9	10	14	173	5
USH-165	165	180	9	10	14	178	5
USH-170	170	185	9	10	14	183	5
USH-175	175	190	9	10	14	188	5
USH-180	180	200	12	13	17	198	5
USH-190	190	210	12	13	17	208	5
USH-195	195	215	12	13	17	213	5
USH-200	200	220	12	13	17	218	5
USH-204	204	224	12	13	1.7	222	5
USH-220	220	240	12	13	17	238	5
USH-224	224	244	12	13	17	242	5
USH-230	230	250	12	13	17	248	5
USH-240	240	260	12	13	17	258	5
USH-250	250	270	12	13	17	268	5
USH-260	260	280	14	15	19	278	5
USH-280	280	300	14	15	19	298	5
USH-295	295	315	14	15	19	313	5
USH-300	300	320	12	13	17	318	5
USH-335	335	355	14	15	19	353	5
USH-355	355	375	14	15	19	373	5
USH-380	380	400	14	15	19	398	5
USH-400	400	420	14	15	19	418	5
USH-450	450	470	14	15	20	468	5
USH-500	500	525	17	18	23	523	6.5



HYDRAULIC PARTS	UNITED ENGINE PARTS
ENG SOON GROUP, SINCE 1972
