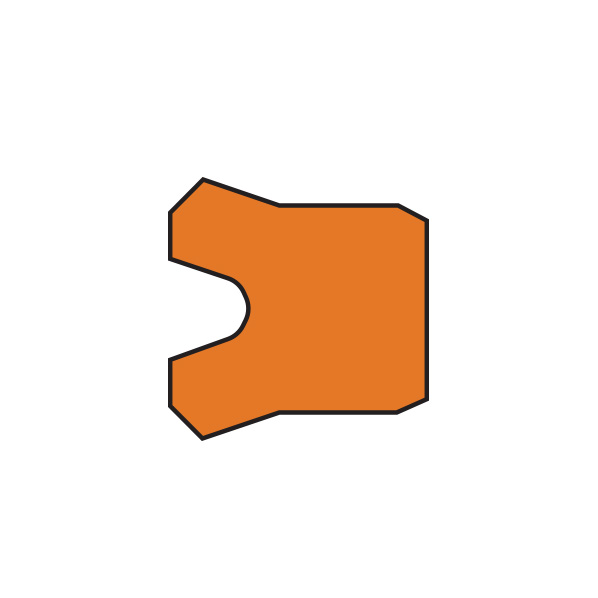

UN
Description
None
* None
Application
None
Materials
None
TECHNICAL DATA
TECHNICAL DATA
| Temperature | None -35°C/+90°C |
| Pressure | None 50 MPa |
| Speed | None 0.5 m/s |
| Medias | None Mineral hydraulic oils |
MATERIALS
MATERIALS
NONE
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT (short term peak at 150°C) |
NONE
Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.
| Chemical resistance | Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max) |
|---|---|
| Compatibility issue | Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents |
| Temperature range | -25°C/+100°C |
DIMENSION
DIMENSION
| Item | Internal Diameter (d) | Outside Diameter (D) | Height (H) | Height (HA) |
|---|---|---|---|---|
| UNI- | 4 | 10 | 4 | 4.5 |
| UNI- | 4 | 11 | 5 | 6 |
| UNI- | 4 | 12 | 4 | 4.5 |
| UNI- | 4 | 12 | 5 | 6 |
| UNI- | 4 | 14 | 4 | 4.5 |
| UNI- | 4.5 | 9.5 | 4 | 4.5 |
| UNI- | 4.5 | 11 | 4.5 | 5 |
| UNI- | 4.5 | 11 | 5 | 5.5 |
| UNI- | 5 | 11 | 8 | 9 |
| UNI- | 5 | 12 | 4 | 4.5 |
| UNI- | 5 | 12 | 5 | 6 |
| UNI- | 5 | 12 | 5.5 | 6.5 |
| UNI- | 5 | 12 | 6 | 7 |
| UNI- | 5 | 12 | 8 | 9 |
| UNI- | 5 | 14 | 4.5 | 5.5 |
| UNI- | 5 | 14 | 6 | 7 |
| UNI- | 5 | 14 | 8 | 9 |
| UNI- | 5 | 16 | 6 | 7 |
| UNI- | 5 | 16 | 8 | 9 |
| UNI- | 6 | 10 | 4.2 | 4.5 |
| UNI- | 6 | 12 | 4 | 4.5 |
| UNI- | 6 | 12 | 5 | 6 |
| UNI- | 6 | 12 | 5.5 | 6.5 |
| UNI- | 6 | 12 | 6 | 7 |
| UNI- | 6 | 12 | 8 | 9 |
| UNI- | 6 | 13 | 5 | 6 |
| UNI- | 6 | 13 | 8 | 9 |
| UNI- | 6 | 13.5 | 5 | 6 |
| UNI- | 6 | 14 | 5 | 6 |
| UNI- | 6 | 14 | 6 | 7 |
| UNI- | 6 | 14 | 8 | 9 |
| UNI- | 6 | 15 | 6 | 7 |
| UNI- | 6 | 16 | 6 | 7 |
| UNI- | 6 | 16 | 8 | 9 |
| UNI- | 6.3 | 16.3 | 8 | 9 |
| UNI- | 7 | 15 | 6 | 7 |
| UNI- | 7.1 | 17.1 | 8 | 9 |
| UNI- | 8 | 12 | 5 | 6 |
| UNI- | 8 | 14 | 4 | 5 |
| UNI- | 8 | 14 | 6 | 7 |
| UNI- | 8 | 14 | 8 | 9 |
| UNI- | 8 | 15 | 5 | 6 |
| UNI- | 8 | 15 | 6 | 7 |
| UNI- | 8 | 15 | 8 | 9 |
| UNI- | 8 | 16 | 4 | 5 |
| UNI- | 8 | 16 | 5 | 6 |
| UNI- | 8 | 16 | 5.7 | 6.3 |
| UNI- | 8 | 16 | 6 | 7 |
| UNI- | 8 | 16 | 8 | 9 |
| UNI- | 8 | 18 | 5 | 6 |
| UNI- | 8 | 18 | 8 | 9 |
| UNI- | 8 | 19 | 8 | 9 |
| UNI- | 8 | 22 | 10 | 11 |
| UNI- | 9 | 16 | 6 | 7 |
| UNI- | 9 | 19 | 6 | 7 |
| UNI- | 9 | 19 | 8 | 9 |
| UNI- | 10 | 14 | 2.5 | 3 |
| UNI- | 10 | 14 | 3 | 3.5 |
| UNI- | 10 | 14 | 4 | 5 |
| UNI- | 10 | 15 | 3 | 4 |
| UNI- | 10 | 15 | 4 | 5 |
| UNI- | 10 | 16 | 4 | 5 |
| UNI- | 10 | 16 | 4.5 | 5.5 |
| UNI- | 10 | 16 | 5.5 | 6.5 |
| UNI- | 10 | 16 | 6 | 7 |
| UNI- | 10 | 16 | 8 | 9 |
| UNI- | 10 | 18 | 5 | 6 |
| UNI- | 10 | 18 | 5.5 | 6.5 |
| UNI- | 10 | 18 | 6 | 7 |
| UNI- | 10 | 18 | 8 | 9 |
| UNI- | 10 | 19 | 6 | 7 |
| UNI- | 10 | 20 | 5 | 6 |
| UNI- | 10 | 20 | 6 | 7 |
| UNI- | 10 | 20 | 7 | 8 |
| UNI- | 10 | 20 | 8 | 9 |
| UNI- | 10 | 22 | 6 | 7 |
| UNI- | 10 | 22 | 8 | 9 |
| UNI- | 11 | 17 | 4 | 5 |
| UNI- | 11 | 17 | 4.5 | 5.5 |
| UNI- | 11.2 | 19.2 | 5 | 6 |
| UNI- | 11.2 | 21.2 | 8 | 9 |
| UNI- | 12 | 16 | 4 | 5 |
| UNI- | 12 | 18 | 4 | 5 |
| UNI- | 12 | 18 | 4.5 | 5.5 |
| UNI- | 12 | 18 | 5 | 6 |
| UNI- | 12 | 18 | 6 | 7 |
| UNI- | 12 | 18 | 8 | 9 |
| UNI- | 12 | 19 | 5 | 6 |
| UNI- | 12 | 20 | 4 | 5 |
| UNI- | 12 | 20 | 5 | 6 |
| UNI- | 12 | 20 | 5.5 | 6.5 |
| UNI- | 12 | 20 | 6 | 7 |
| UNI- | 12 | 20 | 7 | 8 |
| UNI- | 12 | 20 | 8 | 9 |
| UNI- | 12 | 22 | 5 | 6 |
| UNI- | 12 | 22 | 6 | 7 |
| UNI- | 12 | 22 | 7 | 8 |
| UNI- | 12 | 22 | 8 | 9 |
| UNI- | 12 | 24 | 6 | 7 |
| UNI- | 12 | 24 | 8 | 9 |
| UNI- | 12 | 25 | 8 | 9 |
| UNI- | 12 | 25 | 10 | 11 |
| UNI- | 12 | 26 | 10 | 11 |
| UNI- | 12.5 | 22.5 | 8 | 9 |
| UNI- | 13 | 21 | 5 | 6 |
| UNI- | 13 | 24 | 6 | 7 |
| UNI- | 14 | 20 | 5 | 6 |
| UNI- | 14 | 20 | 6 | 7 |
| UNI- | 14 | 20 | 8 | 9 |
| UNI- | 14 | 21 | 5 | 6 |
| UNI- | 14 | 22 | 4 | 5 |
| UNI- | 14 | 22 | 5 | 6 |
| UNI- | 14 | 22 | 6 | 7 |
| UNI- | 14 | 22 | 8 | 9 |
| UNI- | 14 | 24 | 5 | 6 |
| UNI- | 14 | 24 | 8 | 9 |
| UNI- | 14 | 25 | 5 | 6 |
| UNI- | 14 | 25 | 5.5 | 6.5 |
| UNI- | 14 | 25 | 8 | 9 |
| UNI- | 14 | 26 | 5 | 6 |
| UNI- | 14 | 28 | 10 | 11 |
| UNI- | 14 | 30 | 5 | 6 |
| UNI- | 15 | 21 | 4 | 5 |
| UNI- | 15 | 22 | 5 | 6 |
| UNI- | 15 | 22 | 6 | 7 |
| UNI- | 15 | 22 | 8 | 9 |
| UNI- | 15 | 23 | 5 | 6 |
| UNI- | 15 | 25 | 5 | 6 |
| UNI- | 15 | 25 | 6 | 7 |
| UNI- | 15 | 25 | 7 | 8 |
| UNI- | 15 | 25 | 8 | 9 |
| UNI- | 15 | 25 | 10 | 11 |
| UNI- | 15 | 27 | 7 | 8 |
| UNI- | 15 | 30 | 8 | 9 |
| UNI- | 15 | 30 | 10 | 11 |
| UNI- | 15.4 | 25.5 | 6.5 | 7.5 |
| UNI- | 15.8 | 20 | 3 | 4 |
| UNI- | 16 | 20 | 6 | 7 |
| UNI- | 16 | 22 | 4 | 4.5 |
| UNI- | 16 | 22 | 4.5 | 5.5 |
| UNI- | 16 | 22 | 5 | 6 |
| UNI- | 16 | 22 | 6 | 7 |
| UNI- | 16 | 22 | 7 | 8 |
| UNI- | 16 | 22 | 8 | 9 |
| UNI- | 16 | 24 | 4 | 5 |
| UNI- | 16 | 24 | 5 | 6 |
| UNI- | 16 | 24 | 6 | 7 |
| UNI- | 16 | 24 | 8 | 9 |
| UNI- | 16 | 24 | 9 | 10 |
| UNI- | 16 | 25 | 5 | 6 |
| UNI- | 16 | 26 | 5 | 6 |
| UNI- | 16 | 26 | 6 | 7 |
| UNI- | 16 | 26 | 7 | 8 |
| UNI- | 16 | 26 | 8 | 9 |
| UNI- | 16 | 28 | 6 | 7 |
| UNI- | 16 | 30 | 5 | 6 |
| UNI- | 16 | 30 | 6 | 7 |
| UNI- | 16 | 31 | 7 | 8 |
| UNI- | 16 | 32 | 8 | 9 |
| UNI- | 16 | 36 | 5 | 6 |
| UNI- | 17 | 25 | 5 | 6 |
| UNI- | 17 | 25 | 5.5 | 6.5 |
| UNI- | 17 | 26 | 6 | 7 |
| UNI- | 17 | 27 | 5 | 6 |
| UNI- | 17 | 27 | 6 | 7 |
| UNI- | 17 | 30 | 6 | 7 |
| UNI- | 17 | 30 | 7 | 8 |
| UNI- | 17 | 32 | 7 | 8 |
| UNI- | 18 | 22 | 8 | 9 |
| UNI- | 18 | 24 | 5 | 6 |
| UNI- | 18 | 24 | 6 | 7 |
| UNI- | 18 | 24 | 8 | 9 |
| UNI- | 18 | 25 | 5 | 6 |
| UNI- | 18 | 25 | 6 | 7 |
| UNI- | 18 | 25.5 | 5 | 6 |
| UNI- | 18 | 26 | 5 | 6 |
| UNI- | 18 | 26 | 6 | 7 |
| UNI- | 18 | 26 | 7 | 8 |
| UNI- | 18 | 26 | 8 | 9 |
| UNI- | 18 | 28 | 5 | 6 |
| UNI- | 18 | 28 | 6 | 7 |
| UNI- | 18 | 28 | 8 | 9 |
| UNI- | 18 | 30 | 6 | 7 |
| UNI- | 18 | 30 | 8 | 9 |
| UNI- | 18 | 30 | 10 | 11 |
| UNI- | 18 | 31 | 8 | 9 |
| UNI- | 18 | 32 | 7 | 8 |
| UNI- | 18 | 34 | 8 | 9 |
| UNI- | 18 | 38 | 6 | 7 |
| UNI- | 19 | 25 | 5 | 6 |
| UNI- | 19 | 25 | 6 | 7 |
| UNI- | 19 | 25 | 7 | 8 |
| UNI- | 19 | 26 | 5 | 6 |
| UNI- | 19 | 26 | 7 | 8 |
| UNI- | 19 | 34 | 8 | 9 |
| UNI- | 20 | 25 | 5 | 6 |
| UNI- | 20 | 26 | 3.2 | 4 |
| UNI- | 20 | 26 | 3.3 | 4 |
| UNI- | 20 | 26 | 5 | 6 |
| UNI- | 20 | 26 | 6 | 7 |
| UNI- | 20 | 27 | 6 | 7 |
| UNI- | 20 | 28 | 4 | 5 |
| UNI- | 20 | 28 | 5 | 6 |
| UNI- | 20 | 28 | 5.5 | 6.5 |
| UNI- | 20 | 28 | 6 | 7 |
| UNI- | 20 | 28 | 7 | 8 |
| UNI- | 20 | 28 | 8 | 9 |
| UNI- | 20 | 30 | 5 | 6 |
| UNI- | 20 | 30 | 6 | 7 |
| UNI- | 20 | 30 | 7 | 8 |
| UNI- | 20 | 30 | 8 | 9 |
| UNI- | 20 | 30 | 10 | 11 |
| UNI- | 20 | 31 | 8 | 9 |
| UNI- | 20 | 32 | 6 | 7 |
| UNI- | 20 | 32 | 8 | 9 |
| UNI- | 20 | 33 | 8 | 9 |
| UNI- | 20 | 33 | 10 | 11 |
| UNI- | 20 | 34.5 | 12 | 13 |
| UNI- | 20 | 35 | 7 | 8 |
| UNI- | 20 | 35 | 8 | 9 |
| UNI- | 20 | 35 | 10 | 11 |
| UNI- | 20 | 36 | 8 | 9 |
| UNI- | 20 | 37 | 12 | 13 |
| UNI- | 20 | 38 | 10 | 11 |
| UNI- | 20 | 40 | 8 | 9 |
| UNI- | 20 | 40 | 10 | 11 |
| UNI- | 20 | 40 | 12 | 13 |
| UNI- | 22 | 26 | 2.8 | 3.5 |
| UNI- | 22 | 28 | 4 | 5 |
| UNI- | 22 | 28 | 4.5 | 5.5 |
| UNI- | 22 | 28 | 6 | 7 |
| UNI- | 22 | 28 | 8 | 9 |
| UNI- | 22 | 29 | 5 | 6 |
| UNI- | 22 | 30 | 4 | 5 |
| UNI- | 22 | 30 | 5 | 6 |
| UNI- | 22 | 30 | 6 | 7 |
| UNI- | 22 | 30 | 7 | 8 |
| UNI- | 22 | 30 | 8 | 9 |
| UNI- | 22 | 32 | 5 | 6 |
| UNI- | 22 | 32 | 6 | 7 |
| UNI- | 22 | 32 | 7.2 | 8 |
| UNI- | 22 | 32 | 8 | 9 |
| UNI- | 22 | 32 | 10 | 11 |
| UNI- | 22 | 33 | 10 | 11 |
| UNI- | 22 | 34 | 7 | 8 |
| UNI- | 22 | 34 | 10 | 11 |
| UNI- | 22 | 35 | 6 | 7 |
| UNI- | 22 | 35 | 7 | 8 |
| UNI- | 22 | 35 | 8 | 9 |
| UNI- | 22 | 35 | 10 | 11 |
| UNI- | 22 | 36 | 9 | 10 |
| UNI- | 22 | 38 | 8 | 9 |
| UNI- | 22 | 40 | 10 | 11 |
| UNI- | 22 | 40 | 12 | 13 |
| UNI- | 22.4 | 30 | 5 | 6 |
| UNI- | 22.4 | 32.4 | 8 | 9 |
| UNI- | 22.5 | 31.5 | 5 | 6 |
| UNI- | 22.7 | 33 | 5.3 | 6 |
| UNI- | 23 | 35 | 6 | 7 |
| UNI- | 23.5 | 31.5 | 5 | 6 |
| UNI- | 24 | 30 | 6 | 7 |
| UNI- | 24 | 32 | 4 | 5 |
| UNI- | 24 | 32 | 5 | 6 |
| UNI- | 24 | 32 | 6 | 7 |
| UNI- | 24 | 32 | 7 | 8 |
| UNI- | 24 | 34 | 5 | 6 |
| UNI- | 24 | 34 | 6 | 7 |
| UNI- | 24 | 34 | 7 | 8 |
| UNI- | 24 | 36 | 6 | 7 |
| UNI- | 24 | 36 | 8 | 9 |
| UNI- | 25 | 30 | 6 | 7 |
| UNI- | 25 | 31 | 6 | 7 |
| UNI- | 25 | 32 | 4 | 5 |
| UNI- | 25 | 32 | 5 | 6 |
| UNI- | 25 | 32 | 7 | 8 |
| UNI- | 25 | 32 | 8 | 9 |
| UNI- | 25 | 33 | 5 | 6 |
| UNI- | 25 | 33 | 5.5 | 6.5 |
| UNI- | 25 | 33 | 6 | 7 |
| UNI- | 25 | 33 | 7 | 8 |
| UNI- | 25 | 33 | 8 | 9 |
| UNI- | 25 | 33 | 10 | 11 |
| UNI- | 25 | 34 | 5 | 6 |
| UNI- | 25 | 34 | 6 | 7 |
| UNI- | 25 | 35 | 5 | 6 |
| UNI- | 25 | 35 | 6 | 7 |
| UNI- | 25 | 35 | 7 | 8 |
| UNI- | 25 | 35 | 7.3 | 8 |
| UNI- | 25 | 35 | 8 | 9 |
| UNI- | 25 | 35 | 10 | 11 |
| UNI- | 25 | 36 | 6 | 7 |
| UNI- | 25 | 37 | 7 | 8 |
| UNI- | 25 | 38 | 7 | 8 |
| UNI- | 25 | 38 | 8 | 9 |
| UNI- | 25 | 38 | 10 | 11 |
| UNI- | 25 | 40 | 6 | 7 |
| UNI- | 25 | 40 | 6.5 | 7.5 |
| UNI- | 25 | 40 | 8 | 9 |
| UNI- | 25 | 40 | 10 | 11 |
| UNI- | 25 | 41 | 7 | 8 |
| UNI- | 25 | 42 | 8 | 9 |
| UNI- | 25 | 42 | 9 | 10 |
| UNI- | 25 | 43 | 7 | 8 |
| UNI- | 25 | 43 | 8 | 9 |
| UNI- | 25 | 45 | 8 | 9 |
| UNI- | 25 | 45 | 10 | 11 |
| UNI- | 25 | 50 | 10 | 11 |
| UNI- | 25.4 | 30.2 | 6 | 7 |
| UNI- | 26 | 32 | 4.7 | 5.5 |
| UNI- | 26 | 32 | 6 | 7 |
| UNI- | 26 | 34 | 6 | 7 |
| UNI- | 26 | 36 | 6 | 7 |
| UNI- | 26 | 36 | 8 | 9 |
| UNI- | 26 | 36 | 10 | 11 |
| UNI- | 26 | 38 | 8 | 9 |
| UNI- | 26 | 47 | 12 | 13 |
| UNI- | 27 | 35 | 5 | 6 |
| UNI- | 27 | 36 | 6 | 7 |
| UNI- | 27 | 37 | 6 | 7 |
| UNI- | 27 | 38 | 6 | 7 |
| UNI- | 28 | 35 | 5 | 6 |
| UNI- | 28 | 35 | 6 | 7 |
| UNI- | 28 | 35.5 | 5 | 6 |
| UNI- | 28 | 36 | 4 | 5 |
| UNI- | 28 | 36 | 5 | 6 |
| UNI- | 28 | 36 | 6 | 7 |
| UNI- | 28 | 36 | 7 | 8 |
| UNI- | 28 | 36 | 8 | 9 |
| UNI- | 28 | 38 | 5 | 6 |
| UNI- | 28 | 38 | 6 | 7 |
| UNI- | 28 | 38 | 7 | 8 |
| UNI- | 28 | 38 | 7.3 | 8 |
| UNI- | 28 | 38 | 8 | 9 |
| UNI- | 28 | 38 | 10 | 11 |
| UNI- | 28 | 40 | 8 | 9 |
| UNI- | 28 | 40 | 10 | 11 |
| UNI- | 28 | 42 | 7 | 8 |
| UNI- | 28 | 42 | 10 | 11 |
| UNI- | 28 | 43 | 10 | 11 |
| UNI- | 28 | 44 | 8 | 9 |
| UNI- | 28 | 45 | 8 | 9 |
| UNI- | 28 | 50 | 13 | 14 |
| UNI- | 30 | 36 | 6 | 7 |
| UNI- | 30 | 36 | 8 | 9 |
| UNI- | 30 | 37 | 6 | 7 |
| UNI- | 30 | 38 | 5 | 6 |
| UNI- | 30 | 38 | 5.7 | 6.3 |
| UNI- | 30 | 38 | 6 | 7 |
| UNI- | 30 | 38 | 7 | 8 |
| UNI- | 30 | 38 | 8 | 9 |
| UNI- | 30 | 39 | 5 | 6 |
| UNI- | 30 | 40 | 5 | 6 |
| UNI- | 30 | 40 | 5.5 | 6.5 |
| UNI- | 30 | 40 | 6 | 7 |
| UNI- | 30 | 40 | 6.5 | 7.5 |
| UNI- | 30 | 40 | 7 | 8 |
| UNI- | 30 | 40 | 7.3 | 8 |
| UNI- | 30 | 40 | 8 | 9 |
| UNI- | 30 | 40 | 10 | 11 |
| UNI- | 30 | 42 | 6 | 7 |
| UNI- | 30 | 42 | 7 | 8 |
| UNI- | 30 | 42 | 8 | 9 |
| UNI- | 30 | 42 | 9 | 10 |
| UNI- | 30 | 42 | 10 | 11 |
| UNI- | 30 | 43 | 6.5 | 7.5 |
| UNI- | 30 | 43 | 10 | 11 |
| UNI- | 30 | 43.6 | 9.5 | 10.5 |
| UNI- | 30 | 44 | 5.5 | 6.5 |
| UNI- | 30 | 45 | 6 | 7 |
| UNI- | 30 | 45 | 8 | 9 |
| UNI- | 30 | 45 | 10 | 11 |
| UNI- | 30 | 46 | 10 | 11 |
| UNI- | 30 | 47 | 10 | 11 |
| UNI- | 30 | 48 | 10 | 11 |
| UNI- | 30 | 50 | 9 | 10 |
| UNI- | 30 | 50 | 10 | 11 |
| UNI- | 30 | 50 | 11 | 12 |
| UNI- | 30 | 50 | 12 | 13 |
| UNI- | 30 | 52 | 10 | 11 |
| UNI- | 31 | 47 | 10 | 11 |
| UNI- | 31.5 | 41.5 | 6 | 7 |
| UNI- | 31.5 | 44.3 | 9.5 | 10.5 |
| UNI- | 31.5 | 46.5 | 10 | 11 |
| UNI- | 31.8 | 41.3 | 6.3 | 7 |
| UNI- | 32 | 39 | 8 | 9 |
| UNI- | 32 | 40 | 4 | 5 |
| UNI- | 32 | 40 | 5 | 6 |
| UNI- | 32 | 40 | 5.5 | 6.5 |
| UNI- | 32 | 40 | 5.7 | 6.5 |
| UNI- | 32 | 40 | 6 | 7 |
| UNI- | 32 | 40 | 6.3 | 7 |
| UNI- | 32 | 40 | 7 | 8 |
| UNI- | 32 | 40 | 8 | 9 |
| UNI- | 32 | 40 | 10 | 11 |
| UNI- | 32 | 42 | 6 | 7 |
| UNI- | 32 | 42 | 7 | 8 |
| UNI- | 32 | 42 | 7.3 | 8 |
| UNI- | 32 | 42 | 8 | 9 |
| UNI- | 32 | 42 | 8.2 | 9 |
| UNI- | 32 | 42 | 10 | 11 |
| UNI- | 32 | 44 | 6.3 | 7.3 |
| UNI- | 32 | 45 | 6 | 7 |
| UNI- | 32 | 45 | 8 | 9 |
| UNI- | 32 | 45 | 10 | 11 |
| UNI- | 32 | 46 | 10 | 11 |
| UNI- | 32 | 47 | 10 | 11 |
| UNI- | 32 | 48 | 8 | 9 |
| UNI- | 32 | 48 | 10 | 11 |
| UNI- | 32 | 50 | 10 | 11 |
| UNI- | 32 | 52 | 10 | 11 |
| UNI- | 32.5 | 38 | 8 | 9 |
| UNI- | 33 | 39 | 8 | 9 |
| UNI- | 33 | 40 | 8 | 9 |
| UNI- | 33 | 42 | 8 | 9 |
| UNI- | 34 | 40 | 4 | 5 |
| UNI- | 34 | 40 | 6 | 7 |
| UNI- | 34 | 45 | 8 | 9 |
| UNI- | 34 | 50 | 12 | 13 |
| UNI- | 35 | 41 | 5 | 6 |
| UNI- | 35 | 42 | 10 | 11 |
| UNI- | 35 | 43 | 5 | 6 |
| UNI- | 35 | 43 | 6 | 7 |
| UNI- | 35 | 43 | 6.3 | 7 |
| UNI- | 35 | 43 | 7 | 8 |
| UNI- | 35 | 43 | 8 | 9 |
| UNI- | 35 | 44 | 7 | 8 |
| UNI- | 35 | 45 | 5 | 6 |
| UNI- | 35 | 45 | 6 | 7 |
| UNI- | 35 | 45 | 7 | 8 |
| UNI- | 35 | 45 | 8 | 9 |
| UNI- | 35 | 45 | 10 | 11 |
| UNI- | 35 | 46 | 6 | 7 |
| UNI- | 35 | 46 | 8 | 9 |
| UNI- | 35 | 46 | 10 | 11 |
| UNI- | 35 | 47 | 6 | 7 |
| UNI- | 35 | 48 | 8 | 9 |
| UNI- | 35 | 48 | 10 | 11 |
| UNI- | 35 | 50 | 8 | 9 |
| UNI- | 35 | 50 | 9 | 10 |
| UNI- | 35 | 50 | 10 | 11 |
| UNI- | 35 | 51 | 10 | 11 |
| UNI- | 35 | 55 | 10 | 11 |
| UNI- | 35 | 55 | 12 | 13 |
| UNI- | 35.5 | 45 | 6 | 7 |
| UNI- | 35.5 | 50.5 | 10 | 11 |
| UNI- | 36 | 44 | 4 | 5 |
| UNI- | 36 | 44 | 5.3 | 6 |
| UNI- | 36 | 44 | 6 | 7 |
| UNI- | 36 | 44 | 8 | 9 |
| UNI- | 36 | 45 | 6.5 | 7.5 |
| UNI- | 36 | 46 | 6 | 7 |
| UNI- | 36 | 46 | 7 | 8 |
| UNI- | 36 | 46 | 9 | 10 |
| UNI- | 36 | 46 | 10 | 11 |
| UNI- | 36 | 48 | 4 | 5 |
| UNI- | 36 | 48 | 8 | 9 |
| UNI- | 36 | 48 | 10 | 11 |
| UNI- | 37 | 47 | 8 | 9 |
| UNI- | 37 | 47 | 10 | 11 |
| UNI- | 38 | 45 | 4.8 | 5.5 |
| UNI- | 38 | 45 | 5 | 6 |
| UNI- | 38 | 45 | 6 | 7 |
| UNI- | 38 | 45 | 6.5 | 7.5 |
| UNI- | 38 | 45.5 | 6 | 7 |
| UNI- | 38 | 46 | 8 | 9 |
| UNI- | 38 | 48 | 6 | 7 |
| UNI- | 38 | 48 | 10 | 11 |
| UNI- | 38 | 50 | 6 | 7 |
| UNI- | 38 | 50 | 8 | 9 |
| UNI- | 38 | 50 | 9 | 10 |
| UNI- | 38 | 50 | 10 | 11 |
| UNI- | 38 | 52 | 10 | 11 |
| UNI- | 38 | 55 | 10 | 11 |
| UNI- | 38 | 58 | 9.7 | 10.7 |
| UNI- | 38 | 58 | 10 | 11 |
| UNI- | 38 | 60 | 10 | 11 |
| UNI- | 38 | 62 | 12 | 13 |
| UNI- | 39 | 48 | 6.5 | 7.5 |
| UNI- | 39 | 54 | 10 | 11 |
| UNI- | 39 | 58 | 13 | 14 |
| UNI- | 40 | 48 | 5 | 6 |
| UNI- | 40 | 48 | 6 | 7 |
| UNI- | 40 | 48 | 8 | 9 |
| UNI- | 40 | 48 | 10 | 11 |
| UNI- | 40 | 48 | 11 | 12 |
| UNI- | 40 | 50 | 5 | 6 |
| UNI- | 40 | 50 | 6 | 7 |
| UNI- | 40 | 50 | 6.5 | 7.5 |
| UNI- | 40 | 50 | 7 | 8 |
| UNI- | 40 | 50 | 8 | 9 |
| UNI- | 40 | 50 | 9 | 10 |
| UNI- | 40 | 50 | 10 | 11 |
| UNI- | 40 | 52 | 7 | 8 |
| UNI- | 40 | 52 | 8 | 9 |
| UNI- | 40 | 52 | 10 | 11 |
| UNI- | 40 | 52 | 12 | 13 |
| UNI- | 40 | 53 | 8 | 9 |
| UNI- | 40 | 53 | 8.5 | 9.5 |
| UNI- | 40 | 55 | 7 | 8 |
| UNI- | 40 | 55 | 8 | 9 |
| UNI- | 40 | 55 | 9 | 10 |
| UNI- | 40 | 55 | 10 | 11 |
| UNI- | 40 | 56 | 6 | 7 |
| UNI- | 40 | 57 | 7.5 | 8.5 |
| UNI- | 40 | 60 | 10 | 11 |
| UNI- | 40 | 60 | 12 | 13 |
| UNI- | 40 | 62 | 6 | 7 |
| UNI- | 40 | 63 | 13 | 14 |
| UNI- | 40 | 65 | 10 | 11 |
| UNI- | 40 | 65 | 12 | 13 |
| UNI- | 41 | 51 | 7 | 8 |
| UNI- | 41 | 57 | 10 | 11 |
| UNI- | 41 | 61 | 10 | 11 |
| UNI- | 42 | 50 | 5 | 6 |
| UNI- | 42 | 50 | 6 | 7 |
| UNI- | 42 | 50 | 8 | 9 |
| UNI- | 42 | 52 | 6 | 7 |
| UNI- | 42 | 52 | 8 | 9 |
| UNI- | 42 | 52 | 10 | 11 |
| UNI- | 42 | 53 | 9 | 10 |
| UNI- | 42 | 55 | 7 | 8 |
| UNI- | 42 | 55 | 8 | 9 |
| UNI- | 42 | 62 | 12 | 13 |
| UNI- | 43 | 53 | 7.5 | 8.5 |
| UNI- | 43 | 55 | 6 | 7 |
| UNI- | 43 | 55 | 10 | 11 |
| UNI- | 44 | 50 | 8.5 | 9.5 |
| UNI- | 44.5 | 54.5 | 6 | 7 |
| UNI- | 45 | 52 | 8 | 9 |
| UNI- | 45 | 52 | 10 | 11 |
| UNI- | 45 | 53 | 5.3 | 6 |
| UNI- | 45 | 53 | 6 | 7 |
| UNI- | 45 | 53 | 8 | 9 |
| UNI- | 45 | 53 | 10 | 11 |
| UNI- | 45 | 54 | 6 | 7 |
| UNI- | 45 | 55 | 5 | 6 |
| UNI- | 45 | 55 | 6 | 7 |
| UNI- | 45 | 55 | 6.5 | 7.5 |
| UNI- | 45 | 55 | 7 | 8 |
| UNI- | 45 | 55 | 7.5 | 8.5 |
| UNI- | 45 | 55 | 10 | 11 |
| UNI- | 45 | 55 | 12 | 13 |
| UNI- | 45 | 56 | 7 | 8 |
| UNI- | 45 | 56 | 10 | 11 |
| UNI- | 45 | 57.7 | 9.5 | 10.5 |
| UNI- | 45 | 58 | 7 | 8 |
| UNI- | 45 | 58 | 8 | 9 |
| UNI- | 45 | 58 | 10 | 11 |
| UNI- | 45 | 58 | 12 | 13 |
| UNI- | 45 | 60 | 9 | 10 |
| UNI- | 45 | 60 | 10 | 11 |
| UNI- | 45 | 60 | 12 | 13 |
| UNI- | 45 | 61 | 10 | 11 |
| UNI- | 45 | 62 | 10 | 11 |
| UNI- | 45 | 63 | 8 | 9 |
| UNI- | 45 | 63 | 10 | 11 |
| UNI- | 45 | 63 | 12 | 13 |
| UNI- | 45 | 65 | 6 | 7 |
| UNI- | 45 | 65 | 10 | 11 |
| UNI- | 45 | 65 | 12 | 13 |
| UNI- | 45 | 66 | 10 | 11 |
| UNI- | 45 | 70 | 12 | 13 |
| UNI- | 45 | 70 | 15.5 | 17.5 |
| UNI- | 45 | 70 | 16 | 18 |
| UNI- | 46 | 56 | 6 | 7 |
| UNI- | 46 | 56 | 8 | 9 |
| UNI- | 46 | 62 | 10 | 11 |
| UNI- | 47 | 55 | 10 | 11 |
| UNI- | 47 | 57 | 7 | 8 |
| UNI- | 47 | 57 | 10 | 11 |
| UNI- | 48 | 57 | 10 | 11 |
| UNI- | 48 | 58 | 6 | 7 |
| UNI- | 48 | 58 | 8 | 9 |
| UNI- | 48 | 58 | 10 | 11 |
| UNI- | 48 | 60 | 6 | 7 |
| UNI- | 48 | 60 | 7.9 | 9 |
| UNI- | 48 | 62 | 12 | 13 |
| UNI- | 48 | 63 | 10 | 11 |
| UNI- | 49 | 60 | 8 | 9 |
| UNI- | 49.5 | 57 | 5 | 6 |
| UNI- | 50 | 57 | 10 | 11 |
| UNI- | 50 | 58 | 5.3 | 6 |
| UNI- | 50 | 58 | 6 | 7 |
| UNI- | 50 | 58 | 8 | 9 |
| UNI- | 50 | 58 | 10 | 11 |
| UNI- | 50 | 58 | 12 | 13 |
| UNI- | 50 | 60 | 5 | 6 |
| UNI- | 50 | 60 | 6 | 7 |
| UNI- | 50 | 60 | 6.5 | 7.5 |
| UNI- | 50 | 60 | 7 | 8 |
| UNI- | 50 | 60 | 8 | 9 |
| UNI- | 50 | 60 | 10 | 11 |
| UNI- | 50 | 60 | 12 | 13 |
| UNI- | 50 | 62 | 8.5 | 9.5 |
| UNI- | 50 | 62 | 9 | 10 |
| UNI- | 50 | 62 | 9.5 | 10.5 |
| UNI- | 50 | 62 | 10 | 11 |
| UNI- | 50 | 62 | 12 | 13 |
| UNI- | 50 | 63 | 6 | 7 |
| UNI- | 50 | 63 | 6.5 | 7.5 |
| UNI- | 50 | 63 | 8 | 9 |
| UNI- | 50 | 63 | 10 | 11 |
| UNI- | 50 | 65 | 6 | 7 |
| UNI- | 50 | 65 | 7.5 | 8.5 |
| UNI- | 50 | 65 | 8 | 9 |
| UNI- | 50 | 65 | 9 | 10 |
| UNI- | 50 | 65 | 10 | 11 |
| UNI- | 50 | 65 | 12 | 13 |
| UNI- | 50 | 66 | 12 | 13 |
| UNI- | 50 | 68 | 10 | 11 |
| UNI- | 50 | 70 | 8 | 9 |
| UNI- | 50 | 70 | 9 | 10 |
| UNI- | 50 | 70 | 10 | 11 |
| UNI- | 50 | 70 | 12 | 13 |
| UNI- | 50 | 70 | 18 | 20 |
| UNI- | 50 | 72 | 10 | 11 |
| UNI- | 50 | 75 | 12.5 | 13.5 |
| UNI- | 50.9 | 70 | 13 | 14 |
| UNI- | 51 | 66 | 14 | 15 |
| UNI- | 51 | 70 | 12 | 13 |
| UNI- | 52 | 62 | 7 | 8 |
| UNI- | 52 | 62 | 12 | 13 |
| UNI- | 52 | 64 | 6 | 7 |
| UNI- | 52 | 65 | 6 | 7 |
| UNI- | 52 | 65 | 8 | 9 |
| UNI- | 52 | 70 | 12 | 13 |
| UNI- | 52 | 72 | 10 | 11 |
| UNI- | 53 | 63 | 6 | 7 |
| UNI- | 53 | 63 | 6.5 | 7.5 |
| UNI- | 53 | 63 | 8 | 9 |
| UNI- | 53 | 63 | 10 | 11 |
| UNI- | 53 | 65 | 8 | 9 |
| UNI- | 53 | 73 | 12 | 13 |
| UNI- | 54 | 64 | 6 | 7 |
| UNI- | 54 | 70 | 12 | 13 |
| UNI- | 55 | 63 | 8 | 9 |
| UNI- | 55 | 63 | 10 | 11 |
| UNI- | 55 | 65 | 5 | 6 |
| UNI- | 55 | 65 | 6 | 7 |
| UNI- | 55 | 65 | 8 | 9 |
| UNI- | 55 | 65 | 10 | 11 |
| UNI- | 55 | 65 | 12 | 13 |
| UNI- | 55 | 66 | 10 | 11 |
| UNI- | 55 | 68 | 10 | 11 |
| UNI- | 55 | 70 | 7.5 | 8.5 |
| UNI- | 55 | 70 | 8 | 9 |
| UNI- | 55 | 70 | 9 | 10 |
| UNI- | 55 | 70 | 10 | 11 |
| UNI- | 55 | 70 | 12 | 13 |
| UNI- | 55 | 71 | 12 | 13 |
| UNI- | 55 | 72 | 10 | 11 |
| UNI- | 55 | 75 | 10 | 11 |
| UNI- | 55 | 75 | 12 | 13 |
| UNI- | 55 | 76 | 10 | 11 |
| UNI- | 56 | 66 | 6 | 7 |
| UNI- | 56 | 66 | 6.5 | 7.5 |
| UNI- | 56 | 66 | 8.5 | 9.5 |
| UNI- | 56 | 66 | 10 | 11 |
| UNI- | 56 | 71 | 9 | 10 |
| UNI- | 56 | 71 | 11.5 | 12.5 |
| UNI- | 56 | 72 | 12 | 13 |
| UNI- | 56 | 76 | 12 | 13 |
| UNI- | 57 | 63 | 8 | 9 |
| UNI- | 57 | 63 | 10 | 11 |
| UNI- | 58 | 68 | 6 | 7 |
| UNI- | 58 | 68 | 14 | 15 |
| UNI- | 58 | 78 | 12 | 13 |
| UNI- | 60 | 68 | 6 | 7 |
| UNI- | 60 | 68 | 8 | 9 |
| UNI- | 60 | 68 | 11.5 | 12.5 |
| UNI- | 60 | 68 | 14 | 15 |
| UNI- | 60 | 70 | 5 | 6 |
| UNI- | 60 | 70 | 6 | 7 |
| UNI- | 60 | 70 | 7 | 8 |
| UNI- | 60 | 70 | 8 | 9 |
| UNI- | 60 | 70 | 10 | 11 |
| UNI- | 60 | 70 | 12 | 13 |
| UNI- | 60 | 71 | 7 | 8 |
| UNI- | 60 | 72 | 10 | 11 |
| UNI- | 60 | 73 | 8 | 9 |
| UNI- | 60 | 75 | 8 | 9 |
| UNI- | 60 | 75 | 9 | 10 |
| UNI- | 60 | 75 | 10 | 11 |
| UNI- | 60 | 75 | 12 | 13 |
| UNI- | 60 | 75 | 13 | 14 |
| UNI- | 60 | 76 | 12 | 13 |
| UNI- | 60 | 80 | 6 | 7 |
| UNI- | 60 | 80 | 10 | 11 |
| UNI- | 60 | 80 | 12 | 13 |
| UNI- | 60 | 80 | 18 | 20 |
| UNI- | 60 | 85 | 10 | 11 |
| UNI- | 60 | 85 | 12 | 13 |
| UNI- | 60 | 85 | 12.5 | 13.5 |
| UNI- | 60 | 90 | 15 | 17 |
| UNI- | 60 | 90 | 16 | 18 |
| UNI- | 61 | 67 | 5 | 6 |
| UNI- | 61 | 71 | 6 | 7 |
| UNI- | 61 | 71 | 6.5 | 7.5 |
| UNI- | 61 | 78 | 15.5 | 17.5 |
| UNI- | 62 | 70 | 10 | 11 |
| UNI- | 62 | 72 | 10 | 11 |
| UNI- | 62 | 75 | 10 | 11 |
| UNI- | 62 | 78 | 10 | 11 |
| UNI- | 62 | 80 | 10 | 11 |
| UNI- | 62 | 82 | 10 | 11 |
| UNI- | 62 | 82 | 12 | 13 |
| UNI- | 63 | 71 | 8 | 9 |
| UNI- | 63 | 73 | 6 | 7 |
| UNI- | 63 | 73 | 12 | 13 |
| UNI- | 63 | 75 | 6 | 7 |
| UNI- | 63 | 75 | 10 | 11 |
| UNI- | 63 | 75 | 12 | 13 |
| UNI- | 63 | 75 | 14 | 15 |
| UNI- | 63 | 78 | 10 | 11 |
| UNI- | 63 | 80 | 9 | 10 |
| UNI- | 63 | 80 | 10 | 11 |
| UNI- | 63 | 80 | 12 | 13 |
| UNI- | 63 | 80 | 16 | 18 |
| UNI- | 63 | 83 | 12 | 13 |
| UNI- | 64 | 76 | 9.5 | 10.5 |
| UNI- | 64 | 80 | 8 | 9 |
| UNI- | 64 | 80 | 12 | 13 |
| UNI- | 65 | 72 | 10 | 11 |
| UNI- | 65 | 73 | 8 | 9 |
| UNI- | 65 | 73 | 11.5 | 12.5 |
| UNI- | 65 | 75 | 6 | 7 |
| UNI- | 65 | 75 | 8 | 9 |
| UNI- | 65 | 75 | 9 | 10 |
| UNI- | 65 | 75 | 10 | 11 |
| UNI- | 65 | 75 | 12 | 13 |
| UNI- | 65 | 76 | 10 | 11 |
| UNI- | 65 | 78 | 10 | 11 |
| UNI- | 65 | 79 | 10 | 11 |
| UNI- | 65 | 79 | 10 | 11 |
| UNI- | 65 | 80 | 7.5 | 8.5 |
| UNI- | 65 | 80 | 8 | 9 |
| UNI- | 65 | 80 | 8.4 | 9.5 |
| UNI- | 65 | 80 | 9 | 10 |
| UNI- | 65 | 80 | 10 | 11 |
| UNI- | 65 | 80 | 11 | 12 |
| UNI- | 65 | 80 | 12 | 13 |
| UNI- | 65 | 85 | 10 | 11 |
| UNI- | 65 | 85 | 12 | 13 |
| UNI- | 65 | 86 | 10 | 11 |
| UNI- | 66 | 76 | 8 | 9 |
| UNI- | 67 | 77 | 6 | 7 |
| UNI- | 67 | 77 | 9.5 | 10.5 |
| UNI- | 67 | 77 | 12 | 13 |
| UNI- | 67 | 87 | 12 | 13 |
| UNI- | 67 | 95 | 11.5 | 12.5 |
| UNI- | 68 | 78 | 12 | 13 |
| UNI- | 68 | 80 | 9 | 10 |
| UNI- | 70 | 78 | 8 | 9 |
| UNI- | 70 | 78 | 10 | 11 |
| UNI- | 70 | 80 | 5 | 6 |
| UNI- | 70 | 80 | 6 | 7 |
| UNI- | 70 | 80 | 8 | 9 |
| UNI- | 70 | 80 | 10 | 11 |
| UNI- | 70 | 80 | 12 | 13 |
| UNI- | 70 | 81 | 10 | 11 |
| UNI- | 70 | 82 | 9 | 10 |
| UNI- | 70 | 82 | 10 | 11 |
| UNI- | 70 | 82 | 12 | 13 |
| UNI- | 70 | 83 | 10 | 11 |
| UNI- | 70 | 83 | 12 | 13 |
| UNI- | 70 | 84 | 10 | 11 |
| UNI- | 70 | 85 | 8 | 9 |
| UNI- | 70 | 85 | 9 | 10 |
| UNI- | 70 | 85 | 10 | 11 |
| UNI- | 70 | 85 | 10.5 | 11.5 |
| UNI- | 70 | 85 | 11.4 | 12.5 |
| UNI- | 70 | 85 | 12 | 13 |
| UNI- | 70 | 90 | 10 | 11 |
| UNI- | 70 | 90 | 12 | 13 |
| UNI- | 70 | 90 | 13 | 14 |
| UNI- | 70 | 90 | 13.5 | 14.5 |
| UNI- | 70 | 90 | 15 | 17 |
| UNI- | 70 | 90 | 18 | 20 |
| UNI- | 70 | 91 | 10 | 11 |
| UNI- | 70 | 92 | 12 | 13 |
| UNI- | 70 | 95 | 12 | 13 |
| UNI- | 71 | 80 | 6 | 7 |
| UNI- | 71 | 81 | 6 | 7 |
| UNI- | 71 | 91 | 12 | 13 |
| UNI- | 73 | 85 | 10 | 11 |
| UNI- | 75 | 83 | 11 | 12 |
| UNI- | 75 | 85 | 6 | 7 |
| UNI- | 75 | 85 | 7 | 8 |
| UNI- | 75 | 85 | 8 | 9 |
| UNI- | 75 | 85 | 10 | 11 |
| UNI- | 75 | 85 | 12 | 13 |
| UNI- | 75 | 86 | 10 | 11 |
| UNI- | 75 | 88 | 10 | 11 |
| UNI- | 75 | 90 | 9 | 10 |
| UNI- | 75 | 90 | 10 | 11 |
| UNI- | 75 | 90 | 12 | 13 |
| UNI- | 75 | 95 | 10 | 11 |
| UNI- | 75 | 95 | 12 | 13 |
| UNI- | 75 | 95 | 13 | 14 |
| UNI- | 75 | 95 | 13.5 | 14.5 |
| UNI- | 75 | 100 | 15 | 17 |
| UNI- | 76 | 82 | 5 | 6 |
| UNI- | 76 | 86 | 14 | 15 |
| UNI- | 76 | 91 | 14 | 15 |
| UNI- | 76 | 92 | 12 | 13 |
| UNI- | 76.5 | 90.5 | 10 | 11 |
| UNI- | 78 | 86 | 14 | 15 |
| UNI- | 78 | 95 | 11.5 | 12.5 |
| UNI- | 80 | 88 | 8 | 9 |
| UNI- | 80 | 90 | 5 | 6 |
| UNI- | 80 | 90 | 6 | 7 |
| UNI- | 80 | 90 | 8 | 9 |
| UNI- | 80 | 90 | 10 | 11 |
| UNI- | 80 | 90 | 11 | 12 |
| UNI- | 80 | 90 | 12 | 13 |
| UNI- | 80 | 91 | 10 | 11 |
| UNI- | 80 | 92 | 8.7 | 9.7 |
| UNI- | 80 | 92 | 14 | 15 |
| UNI- | 80 | 93 | 8 | 9 |
| UNI- | 80 | 94 | 10 | 11 |
| UNI- | 80 | 95 | 8 | 9 |
| UNI- | 80 | 95 | 9 | 10 |
| UNI- | 80 | 95 | 10 | 11 |
| UNI- | 80 | 95 | 12 | 13 |
| UNI- | 80 | 96 | 12 | 13 |
| UNI- | 80 | 100 | 9.5 | 10.5 |
| UNI- | 80 | 100 | 10 | 11 |
| UNI- | 80 | 100 | 12 | 13 |
| UNI- | 80 | 100 | 13 | 14 |
| UNI- | 80 | 100 | 13.5 | 14.5 |
| UNI- | 80 | 100 | 15 | 17 |
| UNI- | 80 | 105 | 12 | 13 |
| UNI- | 80 | 110 | 12 | 13 |
| UNI- | 80 | 110 | 15 | 17 |
| UNI- | 81 | 100 | 16 | 18 |
| UNI- | 83 | 94 | 6.2 | 7 |
| UNI- | 85 | 93 | 8 | 9 |
| UNI- | 85 | 93 | 11.5 | 12.5 |
| UNI- | 85 | 95 | 5 | 6 |
| UNI- | 85 | 95 | 6 | 7 |
| UNI- | 85 | 95 | 8.5 | 9.5 |
| UNI- | 85 | 95 | 9 | 10 |
| UNI- | 85 | 95 | 12 | 13 |
| UNI- | 85 | 95.5 | 6 | 7 |
| UNI- | 85 | 96 | 10 | 11 |
| UNI- | 85 | 97 | 9 | 10 |
| UNI- | 85 | 100 | 8 | 9 |
| UNI- | 85 | 100 | 9 | 10 |
| UNI- | 85 | 100 | 10 | 11 |
| UNI- | 85 | 100 | 12 | 13 |
| UNI- | 85 | 105 | 10 | 11 |
| UNI- | 85 | 105 | 12 | 13 |
| UNI- | 85 | 105 | 15 | 17 |
| UNI- | 85 | 105 | 18 | 20 |
| UNI- | 85 | 110 | 12 | 13 |
| UNI- | 86 | 96 | 11.5 | 12.5 |
| UNI- | 87 | 95 | 11.5 | 12.5 |
| UNI- | 88 | 100 | 9 | 10 |
| UNI- | 88 | 100 | 14 | 15 |
| UNI- | 90 | 98 | 8 | 9 |
| UNI- | 90 | 100 | 5 | 6 |
| UNI- | 90 | 100 | 6 | 7 |
| UNI- | 90 | 100 | 6.5 | 7.5 |
| UNI- | 90 | 100 | 8 | 9 |
| UNI- | 90 | 100 | 9 | 10 |
| UNI- | 90 | 100 | 10 | 11 |
| UNI- | 90 | 100 | 11.5 | 12.5 |
| UNI- | 90 | 100 | 12 | 13 |
| UNI- | 90 | 102 | 9 | 10 |
| UNI- | 90 | 102 | 10 | 11 |
| UNI- | 90 | 102 | 14 | 15 |
| UNI- | 90 | 105 | 9 | 10 |
| UNI- | 90 | 105 | 10 | 11 |
| UNI- | 90 | 105 | 11.5 | 12.5 |
| UNI- | 90 | 105 | 12 | 13 |
| UNI- | 90 | 110 | 9 | 10 |
| UNI- | 90 | 110 | 10 | 11 |
| UNI- | 90 | 110 | 12 | 13 |
| UNI- | 90 | 110 | 13 | 14 |
| UNI- | 90 | 110 | 15 | 17 |
| UNI- | 90 | 115 | 12 | 13 |
| UNI- | 90 | 115 | 15 | 17 |
| UNI- | 90 | 120 | 12 | 13 |
| UNI- | 91 | 97 | 5 | 6 |
| UNI- | 93 | 105 | 9 | 10 |
| UNI- | 95 | 105 | 7 | 8 |
| UNI- | 95 | 105 | 10 | 11 |
| UNI- | 95 | 105 | 11.5 | 12.5 |
| UNI- | 95 | 105 | 12 | 13 |
| UNI- | 95 | 105 | 14 | 15 |
| UNI- | 95 | 110 | 9 | 10 |
| UNI- | 95 | 110 | 10 | 11 |
| UNI- | 95 | 110 | 12 | 13 |
| UNI- | 95 | 115 | 12 | 13 |
| UNI- | 95 | 115 | 13.5 | 14.5 |
| UNI- | 95 | 115 | 15 | 17 |
| UNI- | 95 | 115 | 18 | 20 |
| UNI- | 95 | 120 | 12 | 13 |
| UNI- | 95 | 120 | 13 | 14 |
| UNI- | 97 | 105 | 14 | 15 |
| UNI- | 98 | 112 | 9 | 10 |
| UNI- | 100 | 110 | 5 | 6 |
| UNI- | 100 | 110 | 6 | 7 |
| UNI- | 100 | 110 | 8 | 9 |
| UNI- | 100 | 110 | 11 | 12 |
| UNI- | 100 | 110 | 12 | 13 |
| UNI- | 100 | 110 | 14 | 15 |
| UNI- | 100 | 110 | 15 | 17 |
| UNI- | 100 | 112 | 9 | 10 |
| UNI- | 100 | 115 | 9 | 10 |
| UNI- | 100 | 115 | 10 | 11 |
| UNI- | 100 | 115 | 12 | 13 |
| UNI- | 100 | 115 | 15 | 17 |
| UNI- | 100 | 120 | 10 | 11 |
| UNI- | 100 | 120 | 12 | 13 |
| UNI- | 100 | 120 | 13.5 | 14.5 |
| UNI- | 100 | 120 | 15 | 17 |
| UNI- | 100 | 125 | 10 | 11 |
| UNI- | 100 | 125 | 12 | 13 |
| UNI- | 100 | 125 | 15 | 17 |
| UNI- | 100 | 130 | 15 | 17 |
| UNI- | 100.4 | 115 | 9 | 10 |
| UNI- | 104 | 117 | 5.3 | 6 |
| UNI- | 104.5 | 117 | 5.3 | 6 |
| UNI- | 105 | 113 | 11 | 12 |
| UNI- | 105 | 115 | 9 | 10 |
| UNI- | 105 | 115 | 12 | 13 |
| UNI- | 105 | 115 | 13.5 | 14.5 |
| UNI- | 105 | 120 | 8 | 9 |
| UNI- | 105 | 120 | 9 | 10 |
| UNI- | 105 | 120 | 11 | 12 |
| UNI- | 105 | 120 | 12 | 13 |
| UNI- | 105 | 120 | 13 | 14 |
| UNI- | 105 | 120 | 15 | 17 |
| UNI- | 105 | 125 | 10 | 11 |
| UNI- | 105 | 125 | 11 | 12 |
| UNI- | 105 | 125 | 12 | 13 |
| UNI- | 105 | 125 | 13 | 14 |
| UNI- | 105 | 125 | 15 | 17 |
| UNI- | 105 | 125 | 16 | 18 |
| UNI- | 105 | 130 | 12 | 13 |
| UNI- | 106 | 120 | 9 | 10 |
| UNI- | 106 | 121 | 9 | 10 |
| UNI- | 106 | 126 | 16 | 18 |
| UNI- | 107 | 113 | 5 | 6 |
| UNI- | 110 | 120 | 10.5 | 11.5 |
| UNI- | 110 | 120 | 12 | 13 |
| UNI- | 110 | 124 | 9.5 | 10.5 |
| UNI- | 110 | 125 | 9 | 10 |
| UNI- | 110 | 125 | 11 | 12 |
| UNI- | 110 | 125 | 12 | 13 |
| UNI- | 110 | 125 | 15 | 17 |
| UNI- | 110 | 130 | 9 | 10 |
| UNI- | 110 | 130 | 12 | 13 |
| UNI- | 110 | 130 | 15 | 17 |
| UNI- | 110 | 130 | 16 | 18 |
| UNI- | 110 | 135 | 15 | 17 |
| UNI- | 110 | 140 | 15 | 17 |
| UNI- | 110 | 140 | 18 | 20 |
| UNI- | 110 | 145 | 15 | 17 |
| UNI- | 112 | 125 | 9 | 10 |
| UNI- | 112 | 127 | 12 | 13 |
| UNI- | 112 | 132 | 15 | 17 |
| UNI- | 112 | 132 | 16 | 18 |
| UNI- | 113 | 125 | 14 | 15 |
| UNI- | 115 | 125 | 10 | 11 |
| UNI- | 115 | 125 | 12 | 13 |
| UNI- | 115 | 130 | 9 | 10 |
| UNI- | 115 | 130 | 10 | 11 |
| UNI- | 115 | 130 | 12 | 13 |
| UNI- | 115 | 130 | 13.5 | 14.5 |
| UNI- | 115 | 130 | 14.5 | 15.5 |
| UNI- | 115 | 130 | 15 | 17 |
| UNI- | 115 | 135 | 12 | 13 |
| UNI- | 115 | 135 | 15 | 17 |
| UNI- | 115 | 140 | 12 | 13 |
| UNI- | 115 | 140 | 15 | 17 |
| UNI- | 117 | 130 | 10 | 11 |
| UNI- | 117 | 130 | 12 | 13 |
| UNI- | 118 | 126 | 14 | 15 |
| UNI- | 118 | 130 | 10 | 11 |
| UNI- | 118 | 130 | 12 | 13 |
| UNI- | 120 | 128 | 11.5 | 12.5 |
| UNI- | 120 | 130 | 5 | 6 |
| UNI- | 120 | 130 | 12 | 13 |
| UNI- | 120 | 130 | 13 | 14 |
| UNI- | 120 | 130 | 14 | 15 |
| UNI- | 120 | 132 | 12 | 13 |
| UNI- | 120 | 135 | 9 | 10 |
| UNI- | 120 | 135 | 12 | 13 |
| UNI- | 120 | 140 | 10 | 11 |
| UNI- | 120 | 140 | 12 | 13 |
| UNI- | 120 | 140 | 13 | 14 |
| UNI- | 120 | 140 | 15 | 17 |
| UNI- | 120 | 140 | 16 | 18 |
| UNI- | 120 | 145 | 12 | 13 |
| UNI- | 120 | 145 | 15 | 17 |
| UNI- | 120 | 145 | 18 | 20 |
| UNI- | 120 | 150 | 15 | 17 |
| UNI- | 124 | 145 | 15 | 17 |
| UNI- | 125 | 133 | 11.5 | 12.5 |
| UNI- | 125 | 135 | 12 | 13 |
| UNI- | 125 | 140 | 9 | 10 |
| UNI- | 125 | 140 | 10 | 11 |
| UNI- | 125 | 140 | 11 | 12 |
| UNI- | 125 | 140 | 12 | 13 |
| UNI- | 125 | 140 | 13 | 14 |
| UNI- | 125 | 140 | 15 | 17 |
| UNI- | 125 | 145 | 12 | 13 |
| UNI- | 125 | 145 | 17 | 17 |
| UNI- | 125 | 145 | 16 | 18 |
| UNI- | 125 | 150 | 15 | 17 |
| UNI- | 125 | 150 | 19 | 20 |
| UNI- | 125 | 155 | 15 | 17 |
| UNI- | 125 | 155 | 19 | 20 |
| UNI- | 126 | 132 | 5 | 6 |
| UNI- | 130 | 140 | 6 | 7 |
| UNI- | 130 | 140 | 10.5 | 11.5 |
| UNI- | 130 | 140 | 12 | 13 |
| UNI- | 130 | 145 | 9 | 10 |
| UNI- | 130 | 145 | 10 | 11 |
| UNI- | 130 | 145 | 12 | 13 |
| UNI- | 130 | 145 | 15 | 17 |
| UNI- | 130 | 150 | 10 | 11 |
| UNI- | 130 | 150 | 12 | 13 |
| UNI- | 130 | 150 | 15 | 17 |
| UNI- | 130 | 150 | 16 | 18 |
| UNI- | 130 | 155 | 12 | 13 |
| UNI- | 130 | 155 | 15 | 17 |
| UNI- | 130 | 160 | 15 | 17 |
| UNI- | 130 | 165 | 15 | 17 |
| UNI- | 132 | 145 | 9 | 10 |
| UNI- | 132 | 152 | 15 | 17 |
| UNI- | 135 | 145 | 12 | 13 |
| UNI- | 135 | 150 | 9 | 10 |
| UNI- | 135 | 150 | 10 | 11 |
| UNI- | 135 | 150 | 11 | 12 |
| UNI- | 135 | 150 | 12 | 13 |
| UNI- | 135 | 150 | 15 | 17 |
| UNI- | 135 | 155 | 12 | 13 |
| UNI- | 135 | 155 | 15 | 17 |
| UNI- | 135 | 160 | 15 | 17 |
| UNI- | 135 | 160 | 19 | 21 |
| UNI- | 135 | 165 | 15 | 17 |
| UNI- | 136 | 150 | 9 | 10 |
| UNI- | 140 | 148 | 7 | 8 |
| UNI- | 140 | 148 | 11.5 | 12.5 |
| UNI- | 140 | 150 | 5 | 6 |
| UNI- | 140 | 150 | 6 | 7 |
| UNI- | 140 | 150 | 11 | 12 |
| UNI- | 140 | 150 | 12 | 13 |
| UNI- | 140 | 150 | 13.5 | 14.5 |
| UNI- | 140 | 150 | 15 | 17 |
| UNI- | 140 | 152 | 10 | 11 |
| UNI- | 140 | 155 | 9 | 10 |
| UNI- | 140 | 155 | 10 | 11 |
| UNI- | 140 | 155 | 12 | 13 |
| UNI- | 140 | 155 | 15 | 17 |
| UNI- | 140 | 157 | 6 | 7 |
| UNI- | 140 | 160 | 9 | 10 |
| UNI- | 140 | 160 | 10 | 11 |
| UNI- | 140 | 160 | 12 | 13 |
| UNI- | 140 | 160 | 14 | 15 |
| UNI- | 140 | 160 | 15 | 17 |
| UNI- | 140 | 160 | 16 | 18 |
| UNI- | 140 | 165 | 15 | 17 |
| UNI- | 140 | 170 | 15 | 17 |
| UNI- | 141 | 151 | 14 | 15 |
| UNI- | 143 | 151 | 14 | 15 |
| UNI- | 144 | 160 | 18 | 20 |
| UNI- | 145 | 160 | 9 | 10 |
| UNI- | 145 | 160 | 12 | 13 |
| UNI- | 145 | 165 | 12 | 13 |
| UNI- | 145 | 165 | 15 | 17 |
| UNI- | 145 | 170 | 15 | 17 |
| UNI- | 145 | 175 | 15 | 17 |
| UNI- | 148 | 160 | 14 | 15 |
| UNI- | 150 | 160 | 10.5 | 11.5 |
| UNI- | 150 | 165 | 9 | 10 |
| UNI- | 150 | 165 | 15 | 17 |
| UNI- | 150 | 170 | 10 | 11 |
| UNI- | 150 | 170 | 12 | 13 |
| UNI- | 150 | 170 | 15 | 17 |
| UNI- | 150 | 170 | 16 | 18 |
| UNI- | 150 | 175 | 15 | 17 |
| UNI- | 150 | 175 | 16 | 18 |
| UNI- | 150 | 180 | 15 | 17 |
| UNI- | 150 | 180 | 18 | 20 |
| UNI- | 155 | 165 | 12.5 | 13.5 |
| UNI- | 155 | 170 | 9 | 10 |
| UNI- | 155 | 175 | 12 | 13 |
| UNI- | 155 | 180 | 15 | 17 |
| UNI- | 155 | 180 | 16 | 18 |
| UNI- | 155 | 180 | 19 | 21 |
| UNI- | 160 | 170 | 7.5 | 8.5 |
| UNI- | 160 | 170 | 12 | 13 |
| UNI- | 160 | 175 | 7.5 | 8.5 |
| UNI- | 160 | 175 | 9 | 10 |
| UNI- | 160 | 175 | 12 | 13 |
| UNI- | 160 | 175 | 15 | 17 |
| UNI- | 160 | 175 | 16 | 18 |
| UNI- | 160 | 180 | 10 | 11 |
| UNI- | 160 | 180 | 12 | 13 |
| UNI- | 160 | 180 | 15 | 17 |
| UNI- | 160 | 180 | 16 | 18 |
| UNI- | 160 | 185 | 12 | 13 |
| UNI- | 160 | 185 | 15 | 17 |
| UNI- | 160 | 185 | 16 | 18 |
| UNI- | 160 | 185 | 18 | 20 |
| UNI- | 160 | 185 | 19 | 21 |
| UNI- | 160 | 190 | 15 | 17 |
| UNI- | 160 | 190 | 18 | 20 |
| UNI- | 160 | 195 | 17 | 19 |
| UNI- | 162 | 172 | 14 | 15 |
| UNI- | 164 | 180 | 18 | 20 |
| UNI- | 165 | 177 | 9 | 10 |
| UNI- | 165 | 180 | 9 | 10 |
| UNI- | 165 | 180 | 15 | 17 |
| UNI- | 165 | 185 | 15 | 17 |
| UNI- | 165 | 190 | 15 | 17 |
| UNI- | 165 | 190 | 16 | 18 |
| UNI- | 165 | 190 | 19 | 21 |
| UNI- | 170 | 180 | 12 | 13 |
| UNI- | 170 | 190 | 12 | 13 |
| UNI- | 170 | 190 | 15 | 17 |
| UNI- | 170 | 195 | 12 | 13 |
| UNI- | 170 | 195 | 15 | 17 |
| UNI- | 170 | 195 | 16 | 18 |
| UNI- | 170 | 195 | 19 | 21 |
| UNI- | 170 | 200 | 15 | 17 |
| UNI- | 170 | 200 | 18 | 20 |
| UNI- | 170 | 215 | 20 | 22 |
| UNI- | 171 | 179 | 14 | 15 |
| UNI- | 175 | 200 | 15 | 17 |
| UNI- | 175 | 200 | 16 | 18 |
| UNI- | 175 | 200 | 19 | 21 |
| UNI- | 175 | 205 | 15 | 17 |
| UNI- | 180 | 188 | 11.5 | 12.5 |
| UNI- | 180 | 190 | 10 | 11 |
| UNI- | 180 | 200 | 10 | 11 |
| UNI- | 180 | 200 | 12 | 13 |
| UNI- | 180 | 200 | 12.5 | 13.5 |
| UNI- | 180 | 200 | 15 | 17 |
| UNI- | 180 | 200 | 16 | 18 |
| UNI- | 180 | 205 | 12 | 13 |
| UNI- | 180 | 205 | 15 | 17 |
| UNI- | 180 | 205 | 16 | 18 |
| UNI- | 180 | 205 | 18 | 20 |
| UNI- | 180 | 210 | 15 | 17 |
| UNI- | 180 | 210 | 22 | 24 |
| UNI- | 180 | 215 | 15 | 17 |
| UNI- | 183 | 193 | 14 | 15 |
| UNI- | 184 | 200 | 18 | 20 |
| UNI- | 185 | 195 | 12 | 13 |
| UNI- | 185 | 195 | 12.5 | 13.5 |
| UNI- | 185 | 200 | 7.5 | 8.5 |
| UNI- | 185 | 200 | 9 | 10 |
| UNI- | 185 | 200 | 12 | 13 |
| UNI- | 185 | 200 | 15 | 17 |
| UNI- | 185 | 205 | 15 | 17 |
| UNI- | 185 | 210 | 15 | 17 |
| UNI- | 185 | 210 | 16 | 18 |
| UNI- | 185 | 215 | 15 | 17 |
| UNI- | 190 | 200 | 12.5 | 13.5 |
| UNI- | 190 | 205 | 15 | 17 |
| UNI- | 190 | 205 | 16 | 18 |
| UNI- | 190 | 210 | 12 | 13 |
| UNI- | 190 | 210 | 15 | 17 |
| UNI- | 190 | 215 | 15 | 17 |
| UNI- | 190 | 215 | 16 | 18 |
| UNI- | 190 | 220 | 15 | 17 |
| UNI- | 190 | 220 | 16 | 18 |
| UNI- | 190 | 220 | 22 | 24 |
| UNI- | 195 | 220 | 15 | 16 |
| UNI- | 200 | 215 | 12 | 13 |
| UNI- | 200 | 216 | 18 | 20 |
| UNI- | 200 | 220 | 12 | 13 |
| UNI- | 200 | 220 | 15 | 17 |
| UNI- | 200 | 220 | 18 | 20 |
| UNI- | 200 | 225 | 15 | 17 |
| UNI- | 200 | 225 | 16 | 18 |
| UNI- | 200 | 225 | 20 | 22 |
| UNI- | 200 | 230 | 15 | 17 |
| UNI- | 200 | 230 | 18 | 20 |
| UNI- | 200 | 230 | 22 | 24 |
| UNI- | 200 | 235 | 20 | 22 |
| UNI- | 200 | 240 | 12 | 13 |
| UNI- | 205 | 230 | 10 | 11 |
| UNI- | 205 | 230 | 16 | 18 |
| UNI- | 205 | 230 | 20 | 22 |
| UNI- | 207 | 217 | 14 | 15 |
| UNI- | 210 | 225 | 15 | 17 |
| UNI- | 210 | 230 | 15 | 17 |
| UNI- | 210 | 235 | 15 | 17 |
| UNI- | 210 | 235 | 18 | 20 |
| UNI- | 210 | 240 | 15 | 17 |
| UNI- | 210 | 240 | 18 | 20 |
| UNI- | 212 | 237 | 18 | 20 |
| UNI- | 215 | 225 | 12.5 | 13.5 |
| UNI- | 215 | 240 | 15 | 17 |
| UNI- | 215 | 240 | 16 | 18 |
| UNI- | 215 | 240 | 18 | 20 |
| UNI- | 215 | 240 | 19 | 21 |
| UNI- | 220 | 236 | 18 | 20 |
| UNI- | 220 | 240 | 12 | 13 |
| UNI- | 220 | 240 | 15 | 17 |
| UNI- | 220 | 245 | 18 | 20 |
| UNI- | 220 | 250 | 15 | 17 |
| UNI- | 220 | 250 | 18 | 20 |
| UNI- | 220 | 250 | 22 | 24 |
| UNI- | 225 | 240 | 12 | 13 |
| UNI- | 225 | 250 | 19 | 21 |
| UNI- | 225 | 255 | 26 | 28 |
| UNI- | 230 | 250 | 12 | 13 |
| UNI- | 230 | 250 | 12.5 | 13.5 |
| UNI- | 230 | 250 | 15 | 17 |
| UNI- | 230 | 250 | 18 | 20 |
| UNI- | 230 | 255 | 18 | 20 |
| UNI- | 230 | 260 | 18 | 20 |
| UNI- | 230 | 260 | 22 | 24 |
| UNI- | 235 | 255 | 12 | 13 |
| UNI- | 235 | 260 | 16 | 18 |
| UNI- | 235 | 260 | 19 | 21 |
| UNI- | 240 | 260 | 16 | 18 |
| UNI- | 240 | 265 | 16 | 18 |
| UNI- | 240 | 270 | 18 | 20 |
| UNI- | 245 | 270 | 19 | 21 |
| UNI- | 250 | 266 | 18 | 20 |
| UNI- | 250 | 270 | 12 | 13 |
| UNI- | 250 | 270 | 15 | 17 |
| UNI- | 250 | 275 | 18 | 20 |
| UNI- | 250 | 275 | 19 | 21 |
| UNI- | 250 | 280 | 18 | 20 |
| UNI- | 250 | 280 | 19 | 21 |
| UNI- | 250 | 280 | 25 | 27 |
| UNI- | 255 | 280 | 16 | 18 |
| UNI- | 255 | 280 | 19 | 21 |
| UNI- | 260 | 280 | 12 | 13 |
| UNI- | 260 | 280 | 14 | 15 |
| UNI- | 260 | 280 | 18 | 20 |
| UNI- | 260 | 290 | 18 | 20 |
| UNI- | 264 | 280 | 18 | 20 |
| UNI- | 265 | 290 | 19 | 21 |
| UNI- | 265 | 295 | 19 | 21 |
| UNI- | 270 | 300 | 15 | 16 |
| UNI- | 275 | 300 | 16 | 18 |
| UNI- | 280 | 300 | 15 | 17 |
| UNI- | 280 | 300 | 16 | 18 |
| UNI- | 280 | 300 | 18 | 20 |
| UNI- | 280 | 305 | 16 | 18 |
| UNI- | 280 | 310 | 20 | 21 |
| UNI- | 280 | 320 | 20 | 21 |
| UNI- | 290 | 320 | 18 | 20 |
| UNI- | 300 | 330 | 18 | 20 |
| UNI- | 300 | 332 | 24 | 26 |
| UNI- | 305 | 340 | 27 | 29.5 |
| UNI- | 320 | 350 | 22 | 24 |
| UNI- | 325 | 355 | 25 | 27 |
| UNI- | 330 | 350 | 15 | 17 |
| UNI- | 330 | 360 | 22 | 24 |
| UNI- | 340 | 370 | 22 | 24 |
| UNI- | 350 | 380 | 22 | 24 |
| UNI- | 360 | 390 | 22 | 24 |
| UNI- | 370 | 400 | 22 | 24 |
| UNI- | 1/2 | 3/4 | 1/8 | 0.138 |
| UNI- | 1/2 | 7/8 | 3/16 | 0.207 |
| UNI- | 1/4 | 1/2 | 1/4 | 0.275 |
| UNI- | 1/4 | 1/2 | 1/8 | 0.138 |
| UNI- | 1/4 | 5/8 | 3/16 | 0.207 |
| UNI- | 1/4 | 5/8 | 5/16 | 0.344 |
| UNI- | 3/16 | 1/2 | 1/4 | 0.275 |
| UNI- | 3/16 | 7/16 | 1/4 | 0.275 |
| UNI- | 3/4 | 1 | 1/8 | 0.138 |
| UNI- | 3/4 | 1 | 3/16 | 0.207 |
| UNI- | 3/4 | 1 1/8 | 1/4 | 0.275 |
| UNI- | 3/4 | 1 3/16 | 1/4 | 0.275 |
| UNI- | 3/4 | 1 5/16 | 5/16 | 0.344 |
| UNI- | 3/8 | 5/8 | 1/8 | 0.138 |
| UNI- | 5/16 | 1/2 | 3/16 | 0.207 |
| UNI- | 5/16 | 5/8 | 1/4 | 0.275 |
| UNI- | 5/16 | 11/16 | 3/16 | 0.207 |
| UNI- | 7/16 | 3/4 | 3/16 | 0.207 |
| UNI- | 7/16 | 13/16 | 1/4 | 0.275 |
| UNI- | 7/8 | 1 1/4 | 1/4 | 0.275 |
| UNI- | 7/8 | 1 1/8 | 1/4 | 0.275 |
| UNI- | 7/8 | 1 1/8 | 1/8 | 0.138 |
| UNI- | 13/16 | 1 3/16 | 11/32 | 0.375 |
| UNI- | 15/16 | 1 5/8 | 3/8 | 0.413 |
| UNI- | 15/16 | 1 9/16 | 5/16 | 0.344 |
| UNI- | 23/32 | 1 1/4 | 1/4 | 0.275 |
| UNI- | 1 | 1 1/4 | 1/4 | 0.275 |
| UNI- | 1 | 1 1/4 | 1/8 | 0.138 |
| UNI- | 1 | 1 1/4 | 5/32 | 0.172 |
| UNI- | 1 | 1 3/8 | 3/16 | 0.207 |
| UNI- | 1 1/2 | 1 3/4 | 1/4 | 0.275 |
| UNI- | 1 1/2 | 2 | 1/4 | 0.275 |
| UNI- | 1 1/2 | 2 | 3/8 | 0.413 |
| UNI- | 1 1/4 | 1 1/2 | 5/32 | 0.172 |
| UNI- | 1 3/4 | 2 1/4 | 1/4 | 0.275 |
| UNI- | 1 3/4 | 2 1/4 | 3/8 | 0.413 |
| UNI- | 1 3/4 | 2 3/8 | 3/8 | 0.413 |
| UNI- | 1 3/8 | 1 3/4 | 5/16 | 0.344 |
| UNI- | 1 3/8 | 1 5/8 | 5/32 | 0.172 |
| UNI- | 1 3/8 | 1 7/8 | 3/8 | 0.413 |
| UNI- | 1 3/8 | 1 11/16 | 7/32 | 0.241 |
| UNI- | 1 3/8 | 1 21/32 | 3/16 | 0.207 |
| UNI- | 1 5/8 | 2 | 1/4 | 0.275 |
| UNI- | 1 7/8 | 2 1/2 | 1/2 | 0.55 |
| UNI- | 1 7/8 | 2 1/2 | 3/8 | 0.413 |
| UNI- | 1 7/8 | 2 1/4 | 5/16 | 0.344 |
| UNI- | 1 7/8 | 2 3/8 | 1/4 | 0.275 |
| UNI- | 2 | 2 1/2 | 3/8 | 0.413 |
| UNI- | 2 | 2 3/8 | 1/4 | 0.275 |
| UNI- | 2 1/2 | 3 | 3/8 | 0.413 |
| UNI- | 2 1/4 | 2 3/4 | 3/8 | 0.413 |
| UNI- | 2 1/4 | 2 7/8 | 3/8 | 0.413 |
| UNI- | 2 1/4 | 3 | 3/8 | 0.413 |
| UNI- | 2 1/8 | 2 1/2 | 1/4 | 0.275 |
| UNI- | 2 1/8 | 2 1/2 | 3/16 | 0.207 |
| UNI- | 2 1/8 | 2 1/2 | 5/16 | 0.344 |
| UNI- | 2 3/4 | 3 1/4 | 3/8 | 0.413 |
| UNI- | 2 3/8 | 2 7/8 | 3/8 | 0.413 |
| UNI- | 2 3/8 | 3 | 3/8 | 0.413 |
| UNI- | 2 5/8 | 3 | 1/4 | 0.275 |
| UNI- | 2 7/8 | 3 1/4 | 1/4 | 0.275 |
| UNI- | 3 | 3 1/2 | 3/8 | 0.413 |
| UNI- | 3 1/4 | 3 7/8 | 1/2 | 0.55 |
| UNI- | 3 1/4 | 4 | 3/8 | 0.413 |
| UNI- | 3 1/8 | 3 1/2 | 3/8 | 0.413 |
| UNI- | 3 1/8 | 3 7/8 | 1/2 | 0.55 |
| UNI- | 3 5/8 | 4 | 1/4 | 0.275 |
| UNI- | 5 1/2 | 6 | 3/8 | 0.41 |
