PP
Description

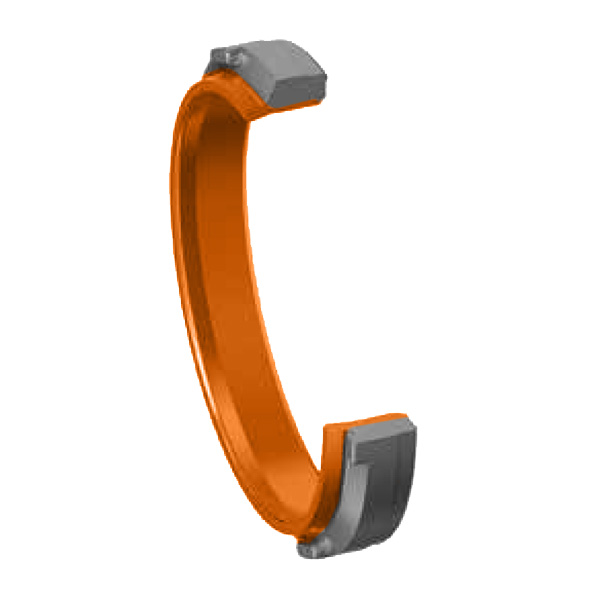

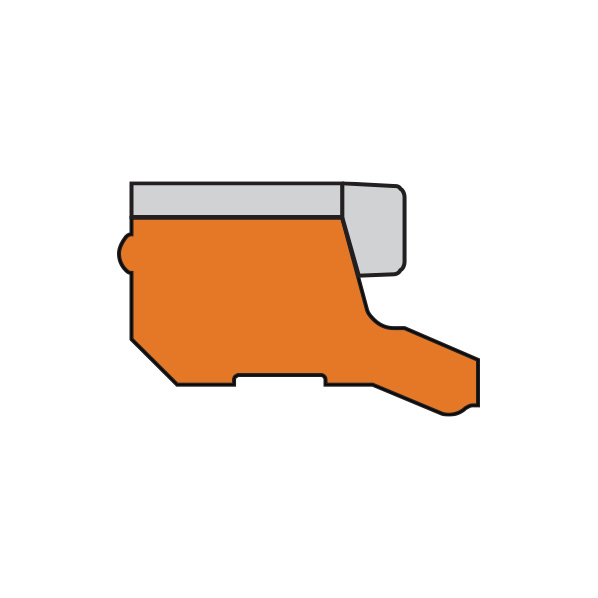

PP is a polyurethane pneumatic cushioning seal.
* Effective and consistent damping effect with automatic centring
Application
Shock absorbers
Distributor
Standard cylinders
Materials
PU 93
PU 96
High temp. PU 96
TECHNICAL DATA
TECHNICAL DATA
| Temperature | -30°C/+110°C |
| Pressure | 1.6 MPa |
| Speed | 1.0 m/s |
| Medias | Lubricated air Oil-free air Non-aggressive gases |
MATERIALS
MATERIALS
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT (short term peak at 150°C) |
NBR
Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.
| Chemical resistance | Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel) Mineral oils and greases Fire-resistant fluids (HFA, HFB and HFC) Diluted acids, low-temperature alkaline and saline solutions Water (up to +100°C max) |
|---|---|
| Compatibility issue | Fuels with high aromatic content Aromatic hydrocarbons (benzene) Chlorinated hydrocarbons (trichlorethylene) Polar solvents (ketone, acetone, acetic acid, ethylene-ester) Strong acids Glycol-based brake fluids Atmospheric and ozone agents |
| Temperature range | -25°C/+100°C |
DIMENSION - NBR
DIMENSION - NBR
| Item | d | D | H | h | D (a) | D1 | D2 | L |
|---|---|---|---|---|---|---|---|---|
| PP 0509 N3589 | 3 | 9 | 4.1 | 3.2 | 8.7 | 5.5 | 7 | 3.7 |
| PP 0610 N3589 | 6 | 10 | 4.1 | 3.2 | 9.7 | 6.5 | 8 | 3.7 |
| PP 0811 N3589 | 8 | 11.6 | 3.5 | 2.8 | 11.3 | 8.5 | 10 | 3.3 |
| PP 0915 N3589 | 9.5 | 15 | 4.6 | 3.7 | 14.7 | 10 | 12 | 4.5 |
| PP 1018 N3589 | 10 | 18 | 7.8 | 6.3 | 17 | 10.5 | 15 | 7 |
| PP 1218 N3589 | 12 | 18 | 5 | 4.1 | 17.8 | 13 | 15.5 | 4.8 |
| PP 1220 N3589 | 12 | 20 | 7.8 | 6.3 | 19.1 | 13 | 17 | 7 |
| PP 1422 N3589 | 14 | 22 | 7.8 | 6.3 | 21.1 | 15 | 19 | 7 |
| PP 1622 N3589 | 16 | 22 | 5.5 | 4.5 | 21.5 | 17 | 19.5 | 5.2 |
| PP 1624 N3589 | 16 | 24 | 7.8 | 6.3 | 23.1 | 17 | 21 | 7 |
| PP 1826 N3589 | 18 | 26 | 7.8 | 6.3 | 25.1 | 19 | 23 | 7 |
| PP 2028 N3589 | 20 | 28 | 7.8 | 6.3 | 27.1 | 21 | 24 | 7 |
| PP 2230 N3589 | 22 | 30 | 7.8 | 6.3 | 29.1 | 23 | 26 | 7 |
| PP 2533 N3589 | 25 | 33 | 7.8 | 6.3 | 32.1 | 26 | 29 | 7 |
| PP 2836 N3589 | 28 | 36 | 7.8 | 6.3 | 35.1 | 29 | 32 | 7 |
| PP 3040 N3589 | 30 | 40 | 7.8 | 6.2 | 39.1 | 31.5 | 35 | 7 |
| PP 3242 N3589 | 32 | 42 | 7.88 | 6.2 | 41.1 | 33.5 | 37 | 7 |
| PP 3646 N3589 | 36 | 46 | 7.8 | 6.2 | 45.1 | 37.5 | 41 | 7 |
| PP 4050 N3589 | 40 | 50 | 7.8 | 6.2 | 49.1 | 41.5 | 45 | 7 |
| PP 5060 N3589 | 50 | 60 | 7.8 | 6.2 | 59.1 | 51.5 | 55 | 7 |
| PP 5067 N3589 | 50 | 67 | 11 | 11 | 66.2 | 53 | 58 | 12.5 |
| PP 577 4 N3589 | 57 | 74 | 11 | 11 | 73.2 | 60 | 65 | 12.5 |
| PP 7087 N3589 | 70 | 87 | 11 | 11 | 86.3 | 73 | 78 | 12.5 |
| PP 7895 N3589 | 78 | 95 | 11 | 11 | 94.3 | 81 | 86 | 12.5 |
DIMENSION - TPU
DIMENSION - TPU
| Item | d | D | H | h | D (a) | D1 | D2 | L |
|---|---|---|---|---|---|---|---|---|
| PP 0811 P5008 | 8 | 11.6 | 3.5 | 2.8 | 11.1 | 8.5 | 10 | 3.3 |
| PP 0915 P5008 | 9.5 | 15 | 4.6 | 3.7 | 14.7 | 10 | 12 | 4.5 |
| PP 1218 P5008 | 12 | 18 | 5 | 4.1 | 17.8 | 13 | 15.5 | 4.8 |
| PP 1422 P5008 | 14 | 22 | 7.8 | 6.3 | 21.05 | 15 | 19 | 7 |
| PP 1622 P5008 | 16 | 22 | 5.5 | 4.5 | 21.5 | 17 | 19.5 | 5.2 |
| PP 1624 P5008 | 16 | 24 | 7.8 | 6.3 | 23.1 | 17 | 21 | 7 |
| PP 1826 P5008 | 18 | 26 | 7.8 | 6.3 | 25.1 | 19 | 23 | 7 |
| PP 2028 P5008 | 20 | 28 | 7.8 | 6.3 | 27.1 | 21 | 24 | 7 |
| PP 2230 P5008 | 22 | 30 | 7.8 | 6.3 | 29.1 | 23 | 26 | 7 |
| PP 2533 P5008 | 25 | 33 | 7.8 | 6.3 | 32.1 | 26 | 29 | 7 |
| PP 2836 P5008 | 28 | 36 | 7.8 | 6.3 | 35.1 | 29 | 32 | 7 |
| PP 3040 P5008 | 30 | 40 | 7.8 | 6.3 | 39.1 | 32.5 | 35 | 7 |
| PP 3242 P5008 | 32 | 42 | 7.8 | 6.2 | 41.1 | 33.5 | 37 | 7 |
| PP 3646 P5008 | 36 | 46 | 7.8 | 6.2 | 45.1 | 37.5 | 41 | 7 |
| PP 4050 P5008 | 40 | 50 | 7.8 | 6.2 | 49.1 | 41.5 | 45 | 7 |
| PP 5060 P5008 | 50 | 60 | 7.8 | 6.2 | 59.1 | 51.5 | 55 | 7 |
| PP 577 4 P5008 | 57 | 74 | 11 | 11 | 73.2 | 60 | 65 | 12.5 |
| PP 7895 P5008 | 78 | 95 | 11 | 11 | 94.3 | 81 | 86 | 12.5 |
