OHM

Description

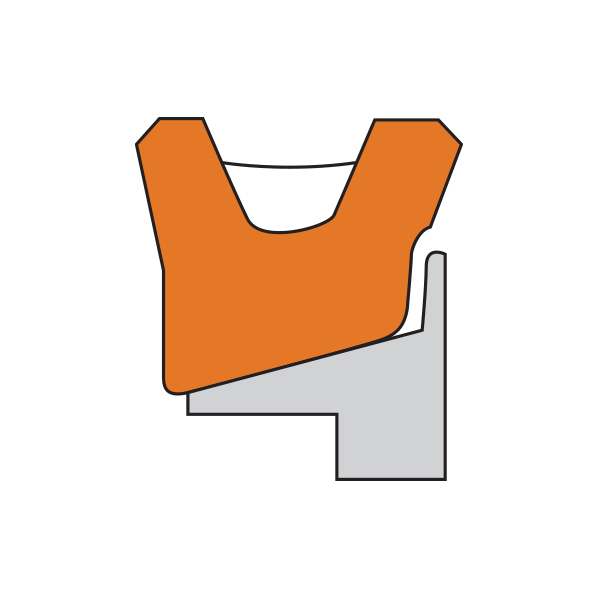

Molded from 70A nitrile for high seal ability they employ a hard nylon anti-extrusion ring as a companion piece..

* Retention of oil pressure.

Application

Agriculture
Mobile machinery
Hydraulic cylinders

Materials

Nitrile Nylon Back-up 70A

, , , , , ,

TECHNICAL DATA

TECHNICAL DATA

Temperature -30°C/+100°C
Pressure None 50 MPa
Speed 0.008~1 m/s.
Medias None Mineral hydraulic oils

MATERIALS

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -25°C/+100°C

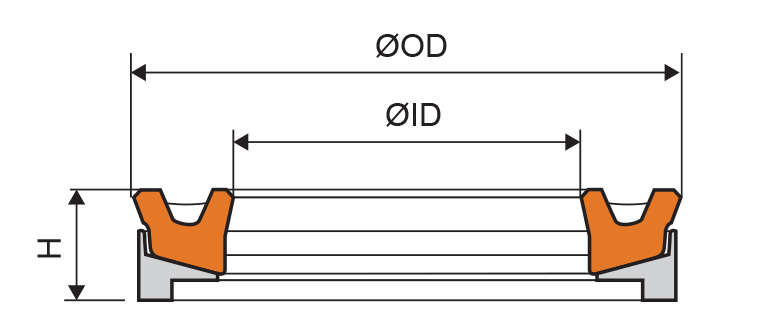

DIMENSION

ItemInternal Diameter (d)Outside Diameter (D)Height (H)
OHM452712.1
OHM503212.1
OHM553712.1
OHM604212.1
OHM654712.1
OHM704814.5
OHM805814.5
OHM856714.5
OHM906814.5
OHM1007814.5
OHM1108814.5
OHM1159314.5
OHM1209814.5
OHM12510314.5
OHM13010814.5
OHM13511314.5
OHM14011814.5
OHM14512314.5
OHM15012814.5
OHM16013814.5
OHM17014814.5
OHM18015814.5
OHM19016814.5
OHM20017814.5
