DKI
Description

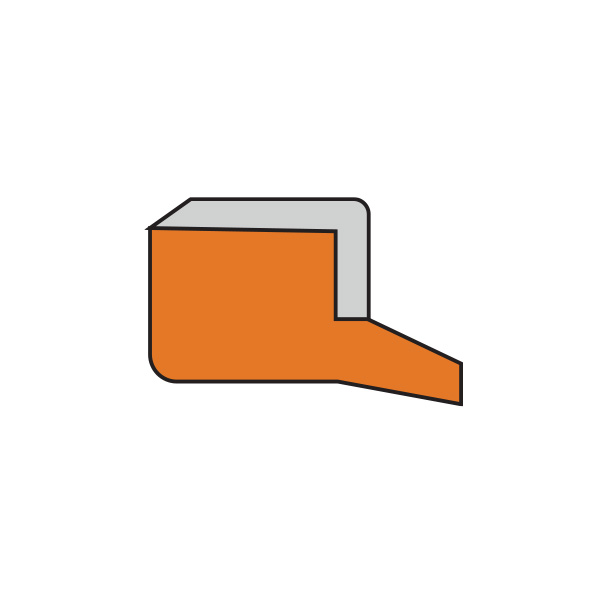

The DKI profile is a single acting wiper seal with a polyurethane metal insert.
* Tight and precise fitting in the housing
* Very good external wiping effect
* Excellent abrasion and wear resistance
Application
Agriculture
Mobile machinery
Material handling – Lifting
Hydraulic cylinders
Materials
Profiled seal – PU 94 Shore A – White
Metal cage – Steel
TECHNICAL DATA
TECHNICAL DATA
| Temperature | -30°C / +110°C |
| Pressure | None 50 MPa |
| Speed | 1 m/s |
| Medias | Mineral hydraulic oils |
MATERIALS
MATERIALS
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT (short term peak at 150°C) |
METAL CAGE
Steel

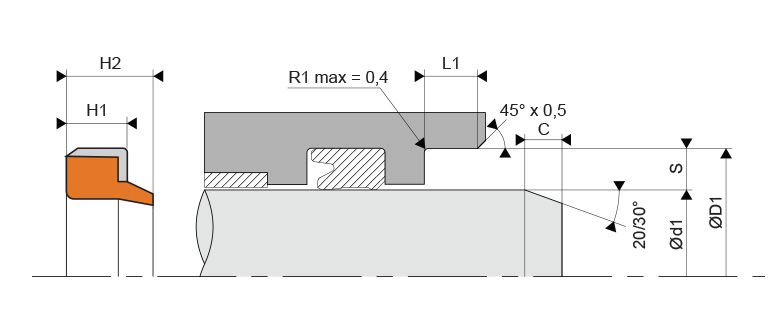

DIMENSION
DIMENSION
| Item | Rod diameter (Ød1 f8/h9) | Groove diameter (ØD1 H9) | Bore diameter (ØD2 H11) | Groove width (L1 +0/+0.20) |
|---|---|---|---|---|
| 476.0130194 | 13 | 19 | 4 | 5 |
| 476.0140255 | 14 | 25 | 5 | 8 |
| 476.0200307 | 20 | 30 | 7 | 10 |
| 476.0250357 | 25 | 35 | 7 | 10 |
| 476.0280387 | 28 | 38 | 7 | 10 |
| 476.0300407 | 30 | 40 | 7 | 10 |
| 476.0350457 | 35 | 45 | 7 | 10 |
| 476.0400505 | 40 | 50 | 5 | 7 |
| 476.0400507 | 40 | 50 | 7 | 10 |
| 476.0450557 | 45 | 55 | 7 | 10 |
| 476.0500607 | 50 | 60 | 7 | 10 |
| 476.0550657 | 55 | 65 | 7 | 10 |
| 476.0550698 | 55 | 69 | 8 | 11 |
| 476.0560667 | 56 | 66 | 7 | 10 |
| 476.0570667 | 57 | 66 | 7 | 9.2 |
| 476.0600707 | 60 | 70 | 7 | 10 |
| 476.0600748 | 60 | 74 | 8 | 11 |
| 476.0630757 | 63 | 75 | 7 | 10 |
| 476.0630778 | 63 | 77 | 8 | 11 |
| 476.0650757 | 65 | 75 | 7 | 10 |
| 476.0650798 | 65 | 79 | 8 | 11 |
| 476.0670767 | 67 | 76 | 7 | 9.2 |
| 476.0700807 | 70 | 80 | 7 | 10 |
| 476.0700848 | 70 | 84 | 8 | 11 |
| 476.0750898 | 75 | 89 | 8 | 11 |
| 476.0800907 | 80 | 90 | 1 | 10 |
| 476.0800948 | 80 | 94 | 8 | 11 |
| 476.0850998 | 85 | 99 | 8 | 11 |
| 476.0901007 | 90 | 100 | 7 | 10 |
| 476.0901048 | 90 | 104 | 8 | 11 |
| 476.0951098 | 95 | 109 | 8 | 11 |
| 476.1001107 | 100 | 110 | 7 | 10 |
| 476.1251409 | 125 | 140 | 9 | 12 |
| 476.1601759 | 160 | 175 | 9 | 12 |
| 476.1801951 | 180 | 195 | 10 | 14 |
