BECA 320
Description

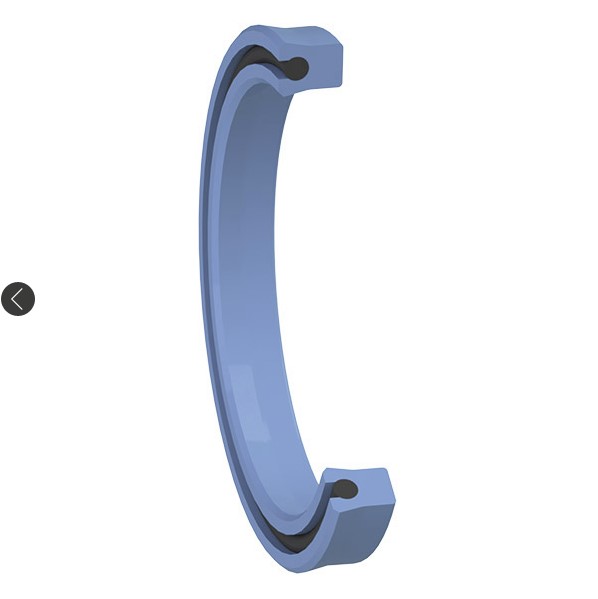

The BECA 512 profile is high-performing, double acting compact piston seal composed of a dynamic bronze-filled PTFE friction ring, profilled pre-tightened NBR and two POM back-up rings.
Application
Mobile Machinery
Hydraulic Cylinders
Materials
Profilled Seal
NBR 80 Shore A
FKM 80 Shore A
Friction Ring
Back-up Rings
Polyoxmenthlene(POM)
SPECIFICATION
SPECIFICATION
| Temperature | -30°C/+100°C |
| Pressure | 40 MPa |
| Speed | 0.5 m/s |
| Medias | Mineral hydraulic oils |
FEATURES
FEATURES
- Very good sealing at low pressures
- Elastic memory preserved using the O’Ring
- Excellent abrasion resistance

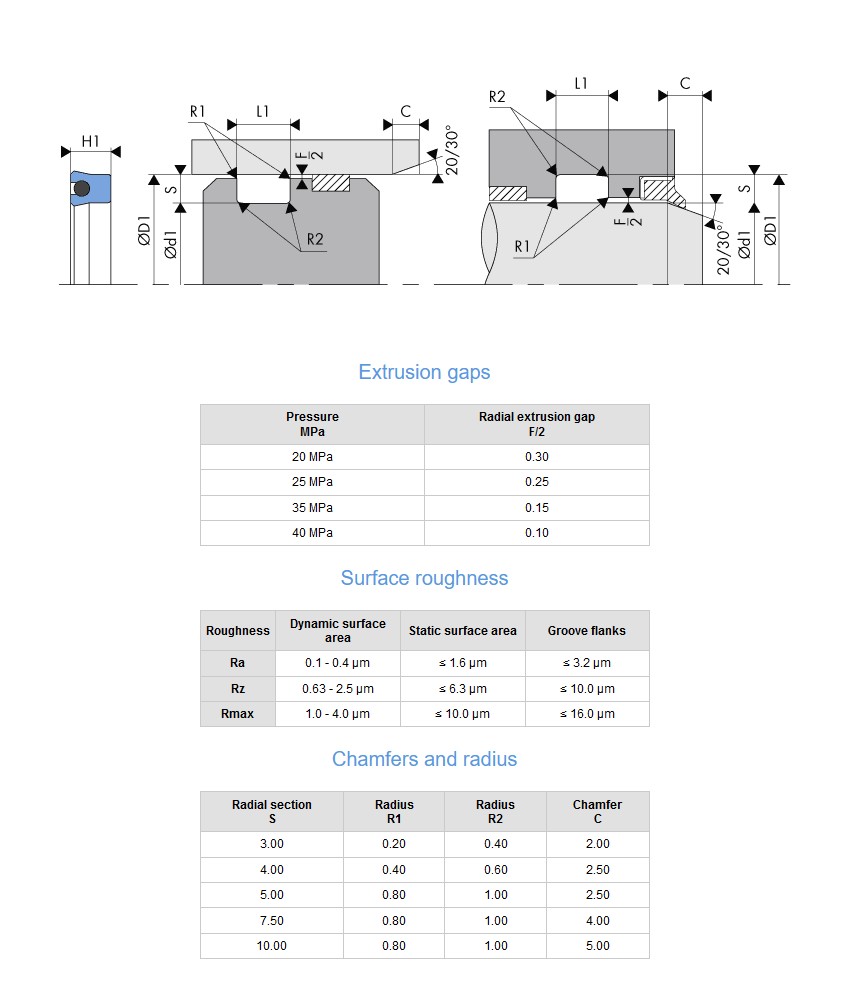

MEASUREMENT
